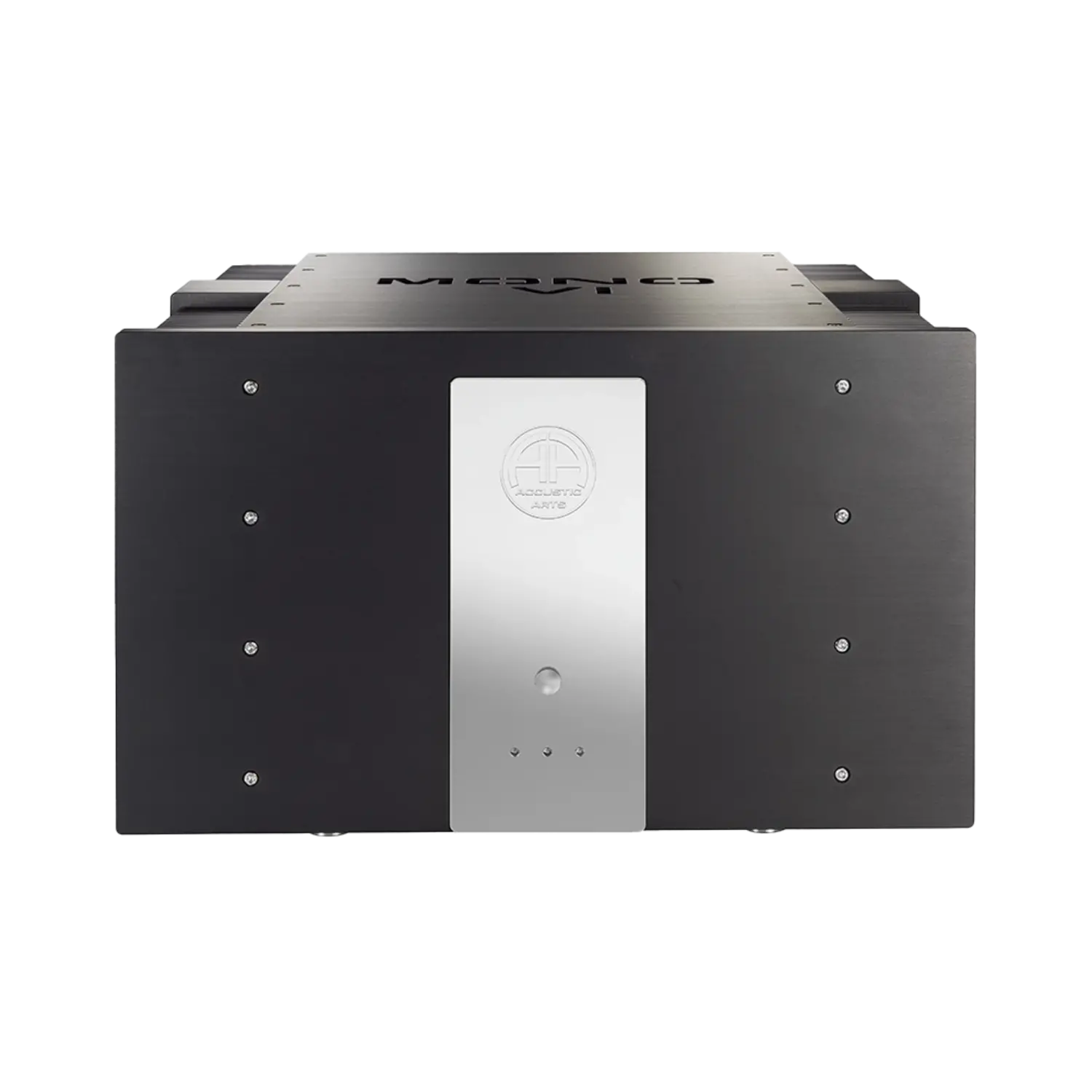

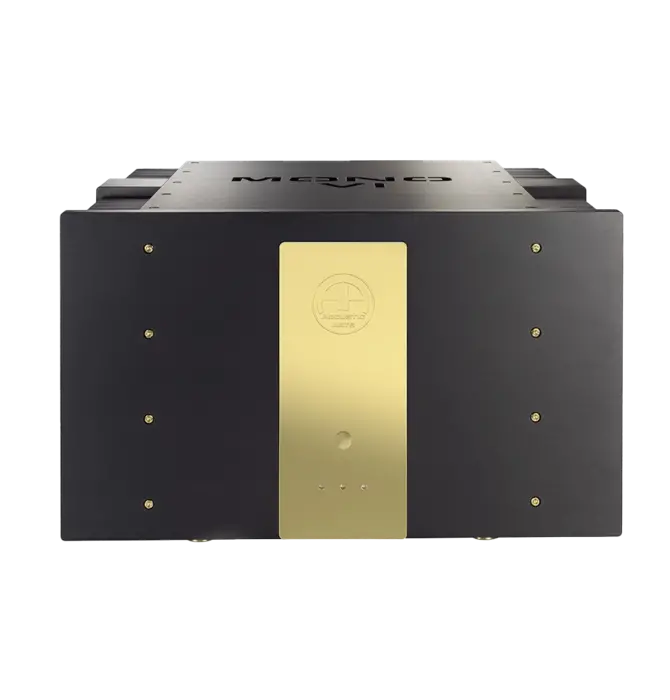

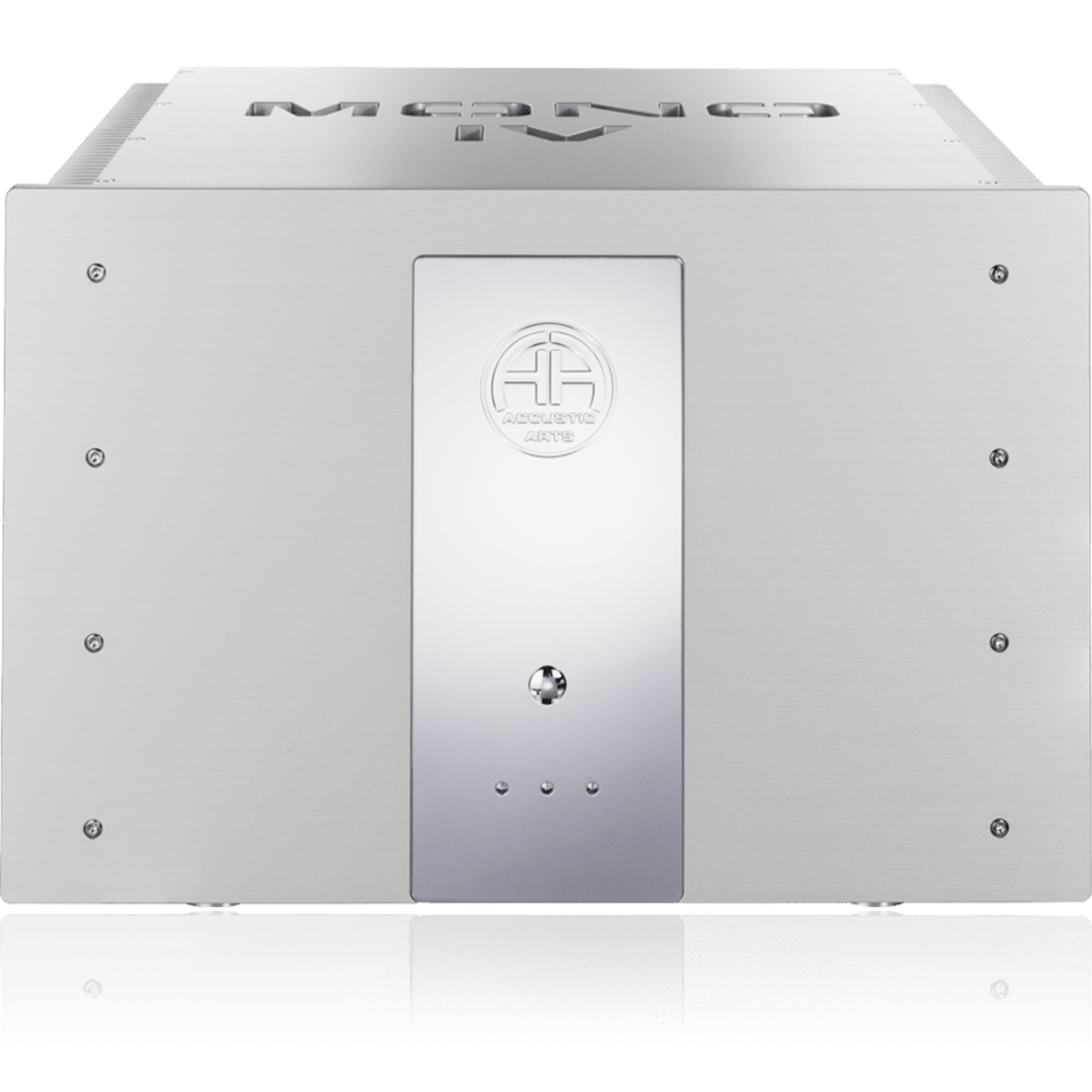

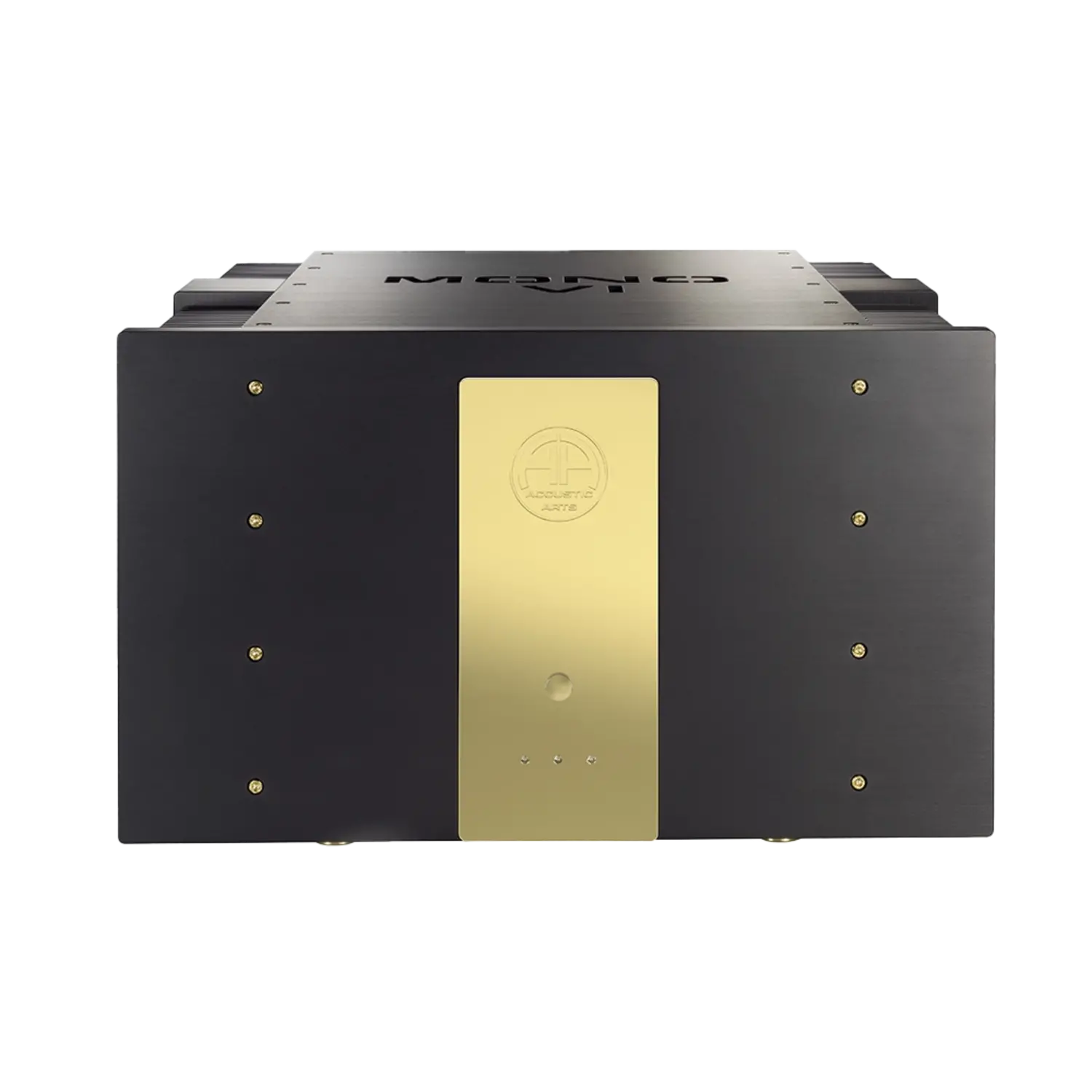

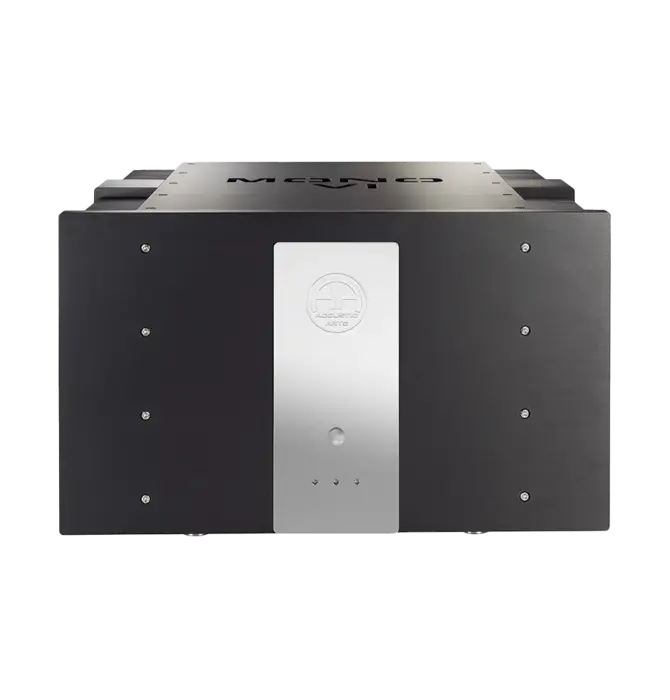

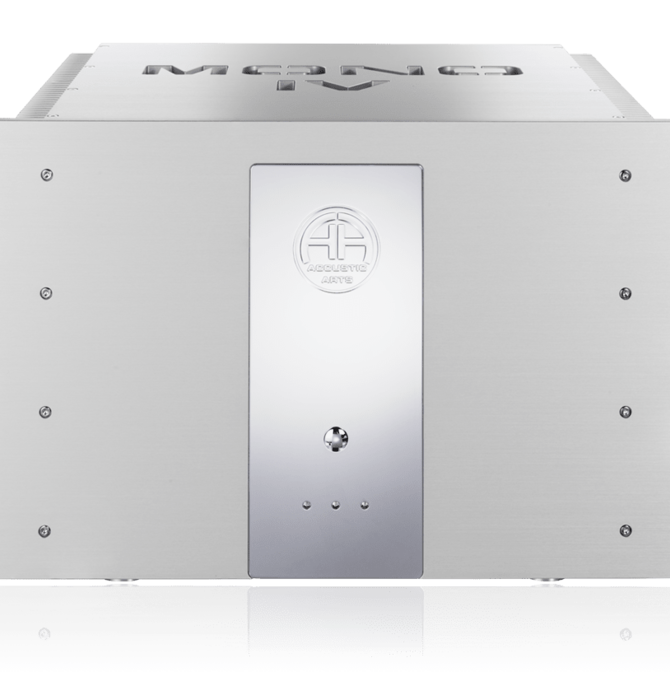

Accustic Arts - MONO IV , Reference Class Mono Power Amplifier

Accustic Arts - MONO IV , Reference Class Mono Power Amplifier

$69,990.00
          (0 reviews)
Out of stock
+
  Add to Wishlist
Free Shipping

Accustic Arts MONO IV highlights

- Reference Class Mono Power Amplifier

- 20 selected MOS-FET output transistors of finest quality

- Two magnetically shielded and encapsulated toroidal core transformers of premium quality for highest ---- output reserves

- Maximum total transformer power: 1200 VA ( watts )

- Optimum smoothing thanks to more than 80,000 µF power supply capacity; Premium quality capacitors - - (“Made in Germany”)

- Very high damping factor for perfect speaker control

- Professional protective circuit against clipping, HF oscillations and too high DC offset

- Constant low operating temperature due to generously dimensioned heat sinks

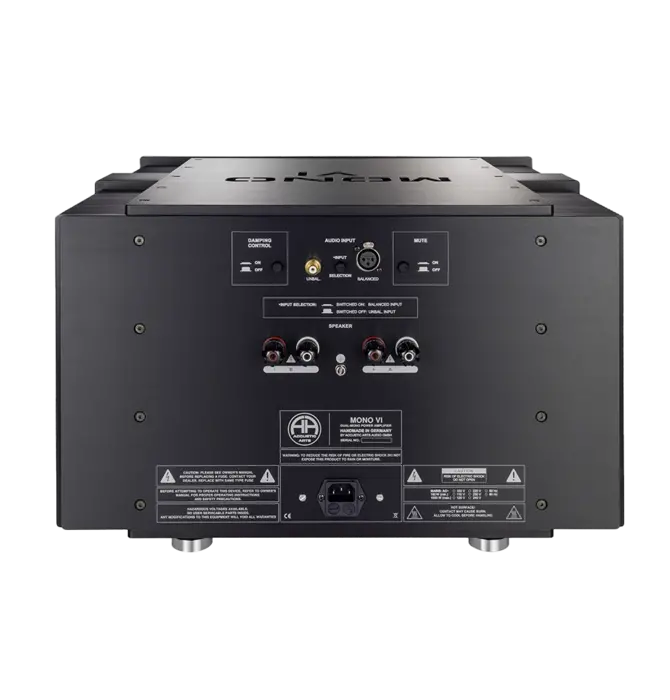

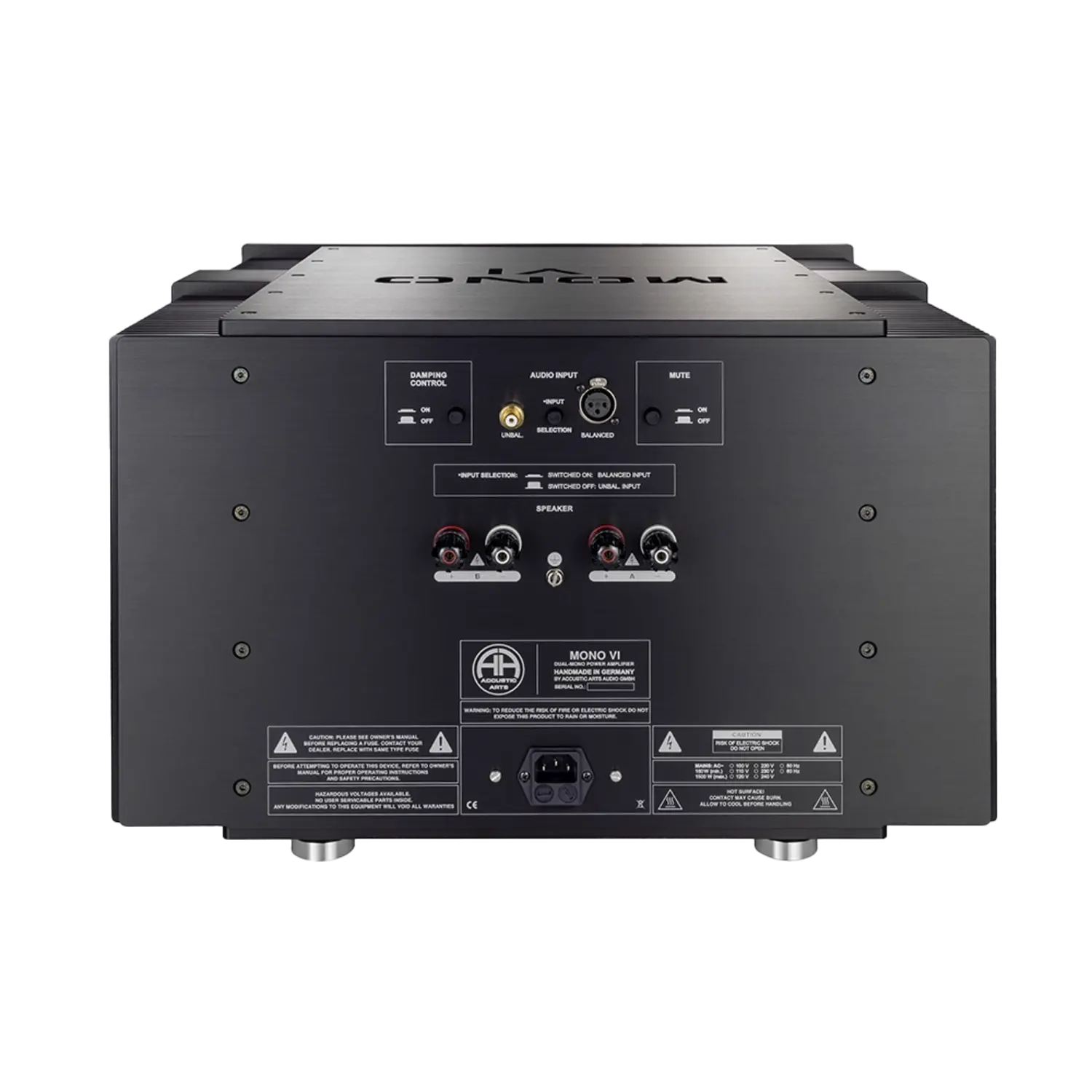

- Balanced input ( XLR ) & unbalanced input ( RCA ) – the inputs are switchable on the rear panel

- WBT loudspeaker terminals

- All used parts and components are selected and of highest quality Premium quality, gold-plated bi-wiring - bi-amping speaker terminals Mains power switch on the front panel

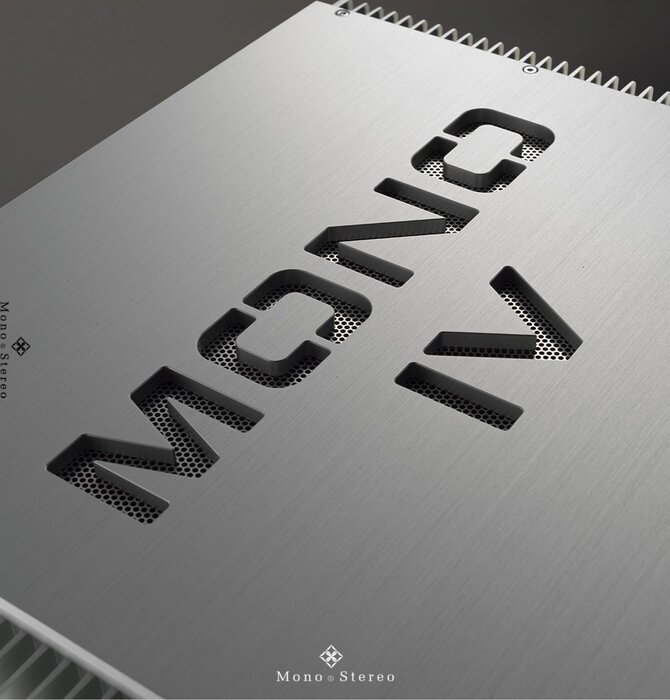

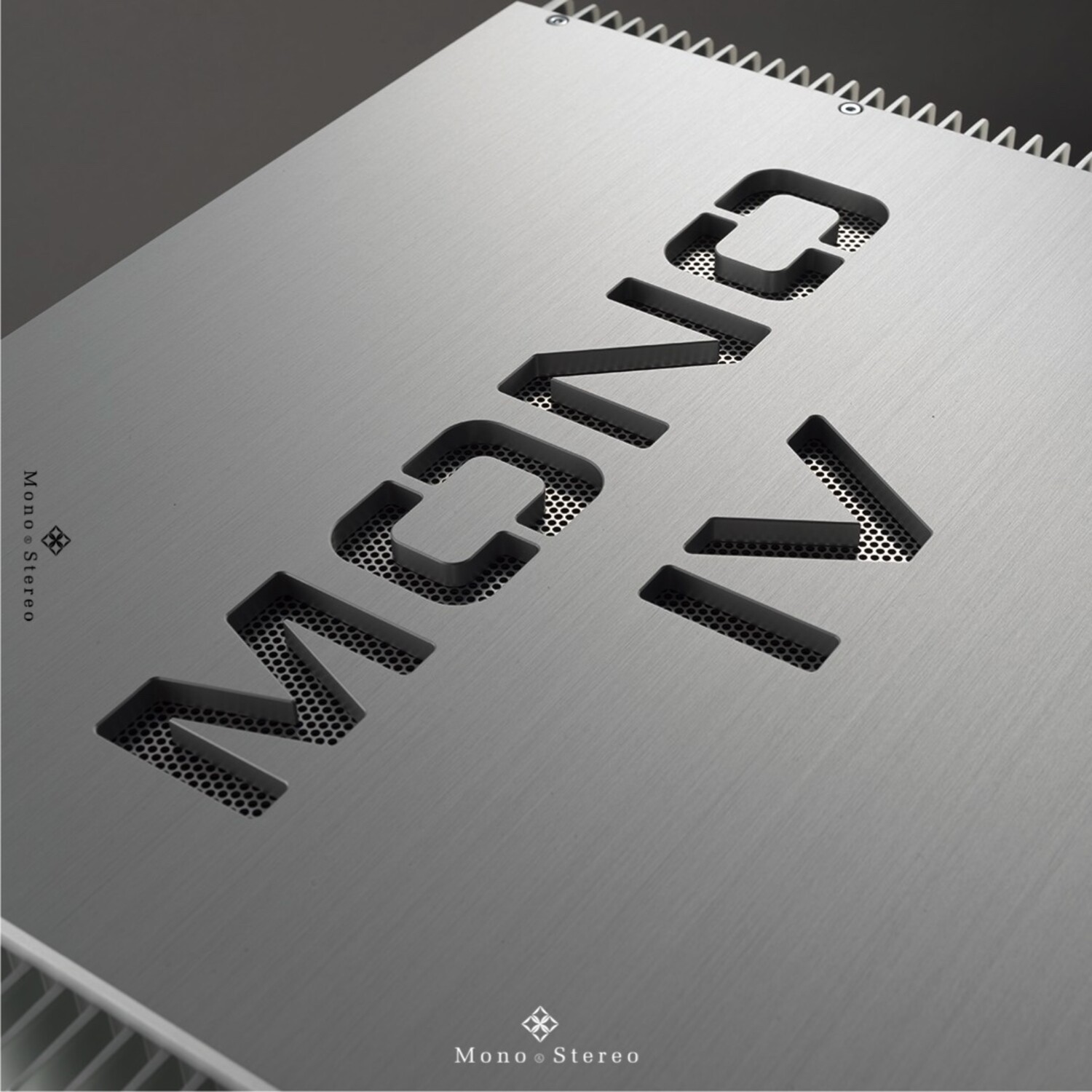

- Extremely stable and resonance optimized, massive aluminium housing; inlay made of massive, high - - - - gloss polished and chromed brass

- ACCUSTIC ARTS® MONO IV is guaranteed “Handmade in Germany”

Specifications

Voltage Gain: 30.0 dB

Power Supply Capacity: more than 80.000 µF

Input Resistance:

- Balanced ( XLR ): 2 x 20 kΩ

- Unbalanced ( RCA/Cinch ): 100 kΩ

Rated Power Output:

- approx. 900 watts @ 2 Ω

- approx. 760 watts @ 4 Ω

- Maximum 510 watts @ 8 Ω

Signal to Noise Ratio: -96 dBA ( ref. 6.325 V )

Intermodulation Distortion: 0.007 % with 10 watts on 4 Ω

Distortion ( THD+N ): 0.004 % on 4 Ω load with 1 kHz & 10 watts

Power Consumption: approximately 120 watts without load

Dimensions ( H x W x D) : 13.4" x 18.5" x 17.3"

Weight: approximately 93 lbs + 27 lbs flight case
