Pulsus PhonoStage

Pulsus PhonoStage

$2,250.00
          (0 reviews)
Out of stock
+
Embodying the experience gained during the development of our flagship designs, technological advancements have been trickled down to our exceptional but more approachable phono stages.

Avid HiFi Pulsus PhonoStage

Designed from first principles, Pulsus is an un-balanced design with outstandingly low distortion and noise across the audio spectrum, retaining and exposing every intricate detail.

"The Pulsus is simply a bargain" - Ken Kessler

Surpass Expectation

Only extremely high-specification components achieve a place within our handcrafted phonostages, each one constructed to military grade specifications for a lifetime of service.

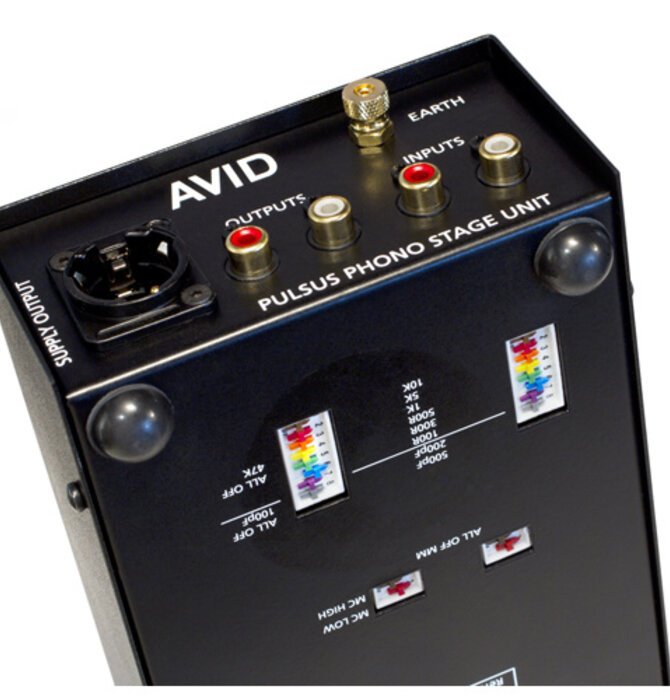

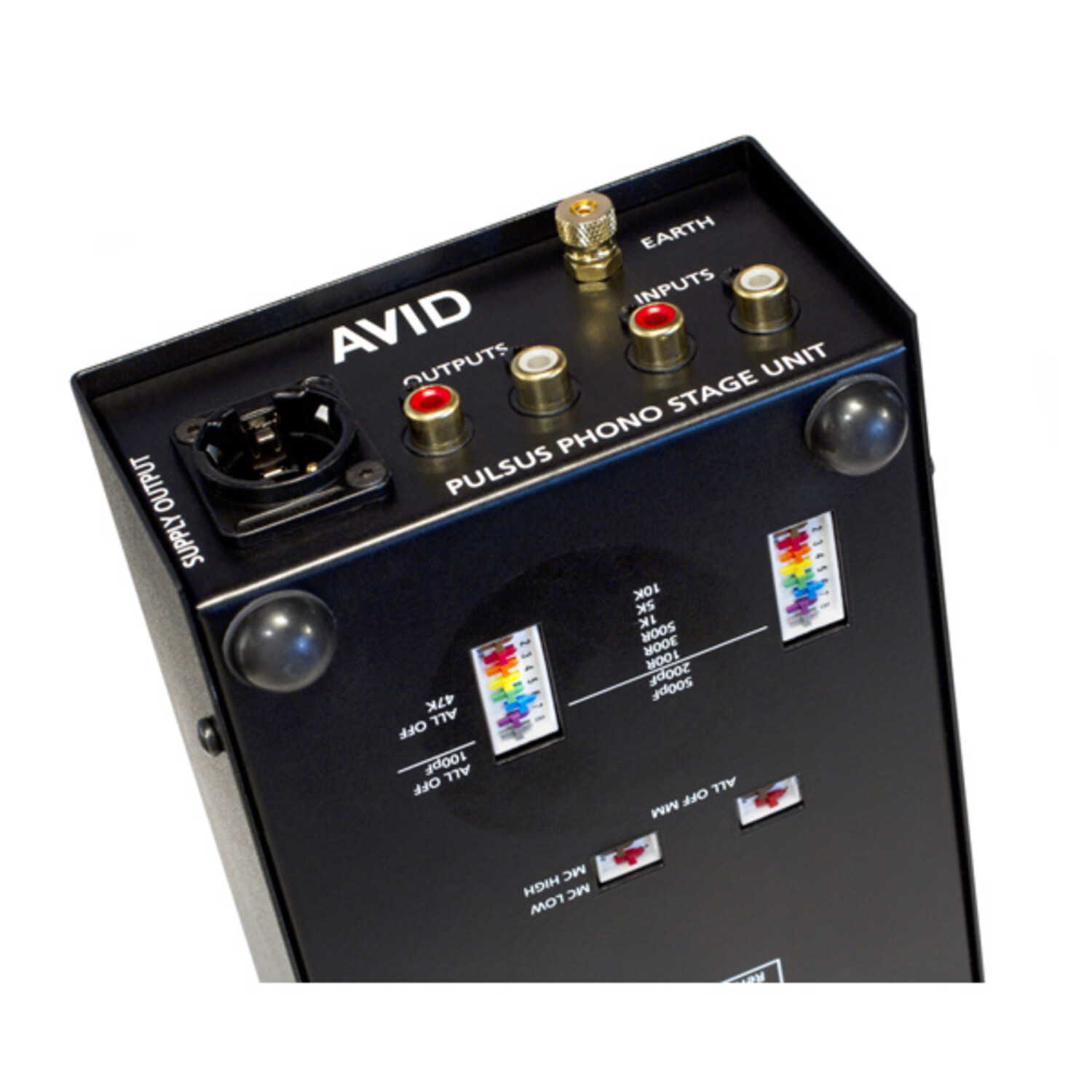

Gain, Resistance and Capacitance are all easily adjustable from the underside of the casework, offering exceptional flexibility and an external regulated supply provides refined smooth power to maintain its poise, revealing layers of detail and delicate musicality that will surpass your expectations.

" I’m guessing you’ll take one home" - Jeff Dorgay

Hand Crafted

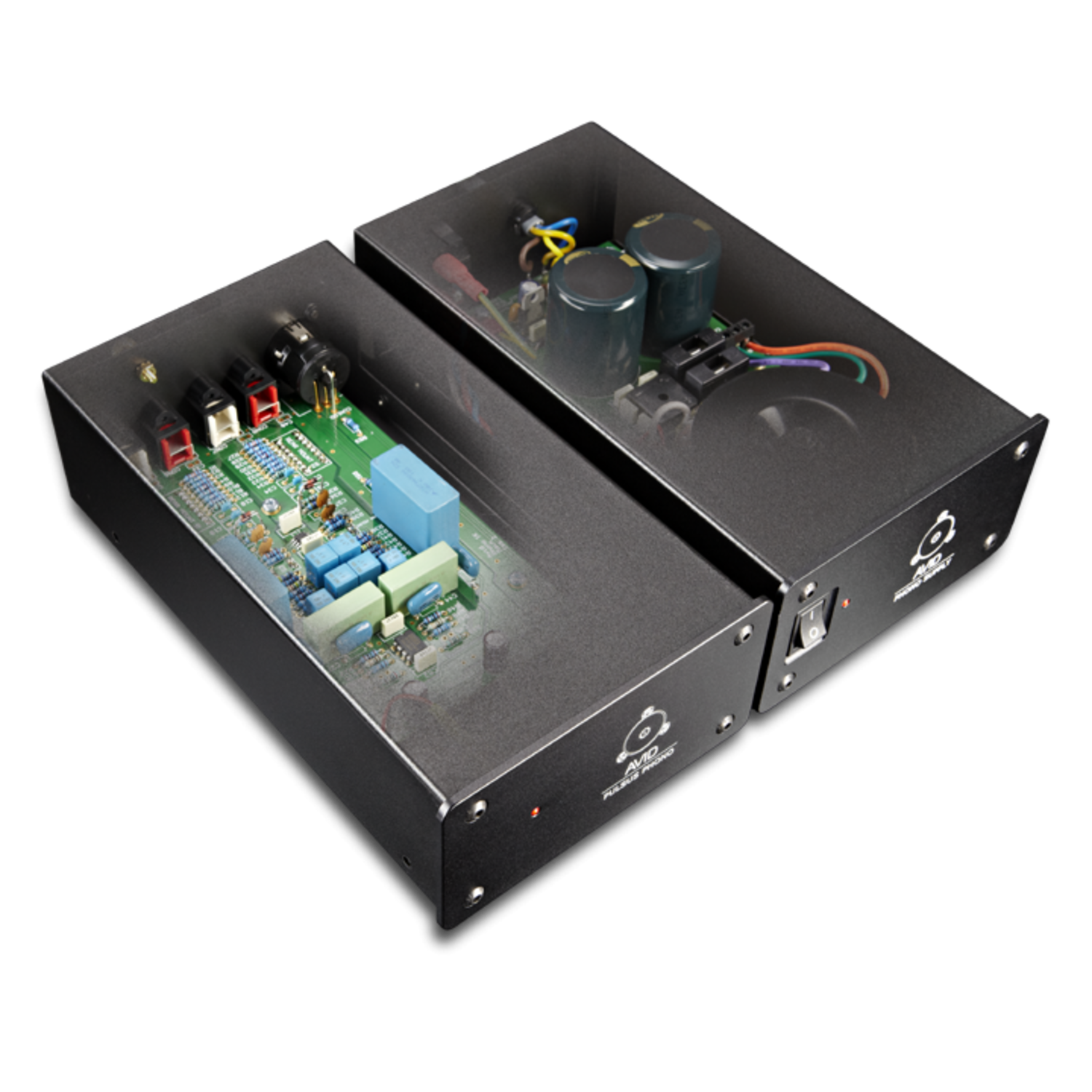

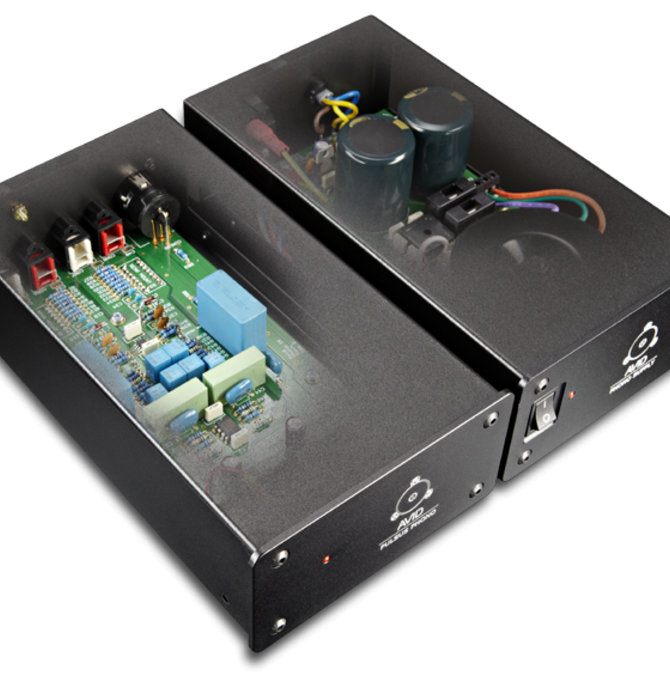

Manufactured within our own facilities, each phono stage is painstakingly hand assembled with every stage being scrutinized. Each bare board PCB is populated and soldered by a skilled producer and assembled into flawless casework with brutal testing during quality control to ensure a faithfully reliable product that will delight vinyl lovers with its pace, dynamics, accuracy - and, above all, its musical integrity.

"This is likely the phono stage I'll buy" - Ed Kobesky

Key Features

- MM, MC Low, MC Hi Gain

- Switchable Capacitance

- Seven Loading Values

- Exceptionally Low Noise

- External Shielded PSU

Specifications

Noise: < -81dB MM   <-67dB MC

Distortion: < 0.001%

RIAA: 5Hz - 70kHz ±0.5dB

Gain: 40dB -60dB -70dB

Resistance: 100R - 300R - 500R - 1K - 5K - 10K - 47K

Capacitance: 100pf - 200pf - 500pf

Output Impedance: 20Ω

Power Supply: Regulated with 35va Transformer

Voltage Input: 100-240vac 50/60Hz 10 WATTS MAX

Dimensions: 4.7" ( W ) x 8.6" ( D ) x 2.7" ( H )

Net Weight

Control Unit: 2.2 lbs

PSU: 4 lbs
