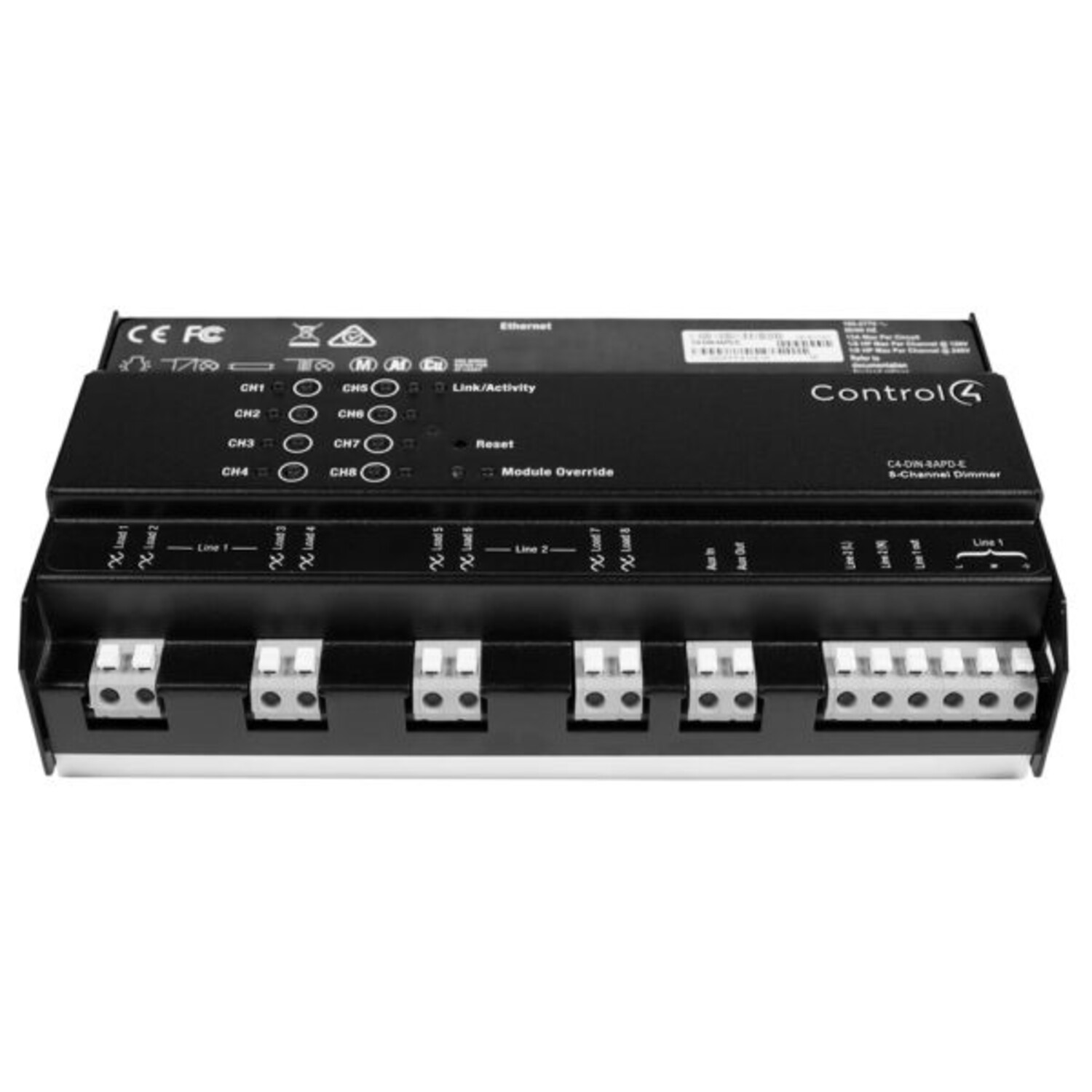

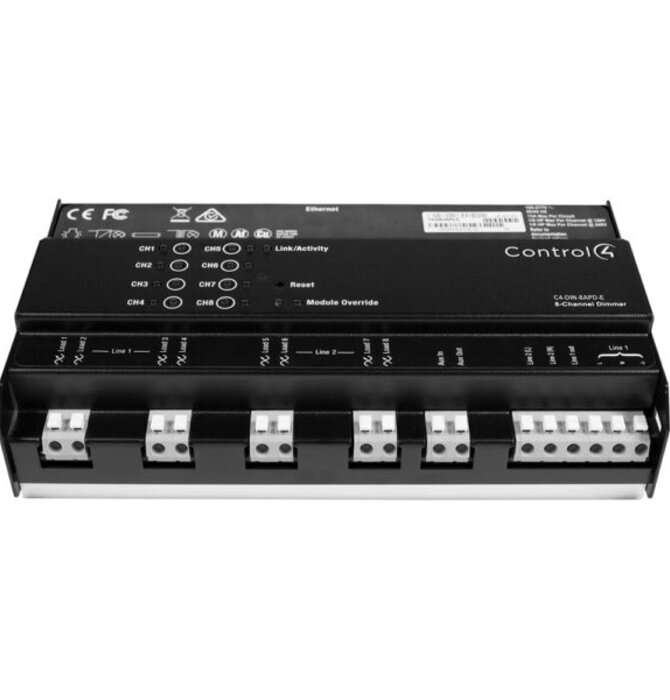

DIN-Rail 8-Channel Adaptive Phase Dimmer V2, C4-DIN-8APD-E
DIN-Rail 8-Channel Adaptive Phase Dimmer V2, C4-DIN-8APD-E
$1,595.62
This 8-Channel Adaptive Phase Dimmer controls up to 8 loads from one module a Control4 system. It is an adaptive phase dimmer, each channel supports a variety of load types including incandescent, halogen, electronic low-voltage, magnetic, fluorescent, LE
The Control4® DIN-Rail 8-Channel Adaptive Phase Dimmer controls up to eight loads from one module in the Control4 system. It is an adaptive phase dimmer, so each channel supports a variety of load types including incandescent, halogen, electronic low-voltage ( solid-state ) transformer, magnetic ( iron core ) low-voltage transformer, fluorescent, compact fluorescent, LED, and motor. The DIN-Rail 8-Channel Adaptive Phase Dimmer automatically detects the load type and sets the appropriate dimming mode.
Features
- Controls up to eight loads and supports a variety of load types
- Each channel can be set to different dimming modes including Switch mode, Forward Phase mode, Reverse Phase mode, and Autodetect mode
- Channel buttons allow for toggling on/off or ramping up/down a load
- Channel Status LEDs indicate whether a load is on, off, or in short-circuit fault
- Module Override button allows toggling between the module override scene and all channels off or setting the module override scene to current channel levels
- Module Status LED indicates if module power is on with normal operation, off, or in thermal overload
- Link/Activity LED indicates system link status, communication activity, or firmware update status
- Reset button can be used for factory default or network configuration settings
- Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
- Module can be installed in either a Control4 5-Slot or 2-Slot Panel or in a third-party DIN-Rail Panel
- California Title 20 compliant ( see ctrl4.co/title20 for more information on Title 20 / Title 24 compliance )
