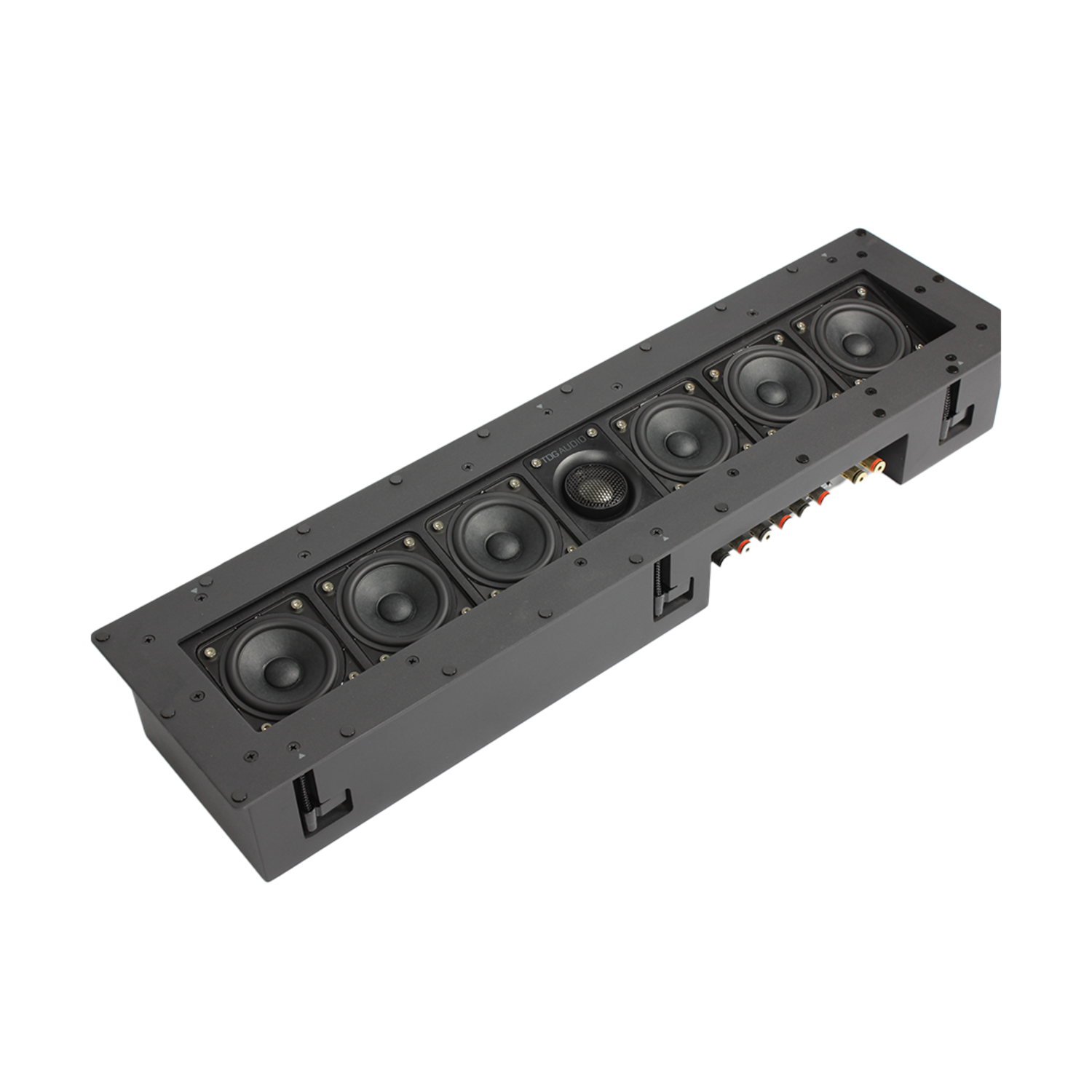

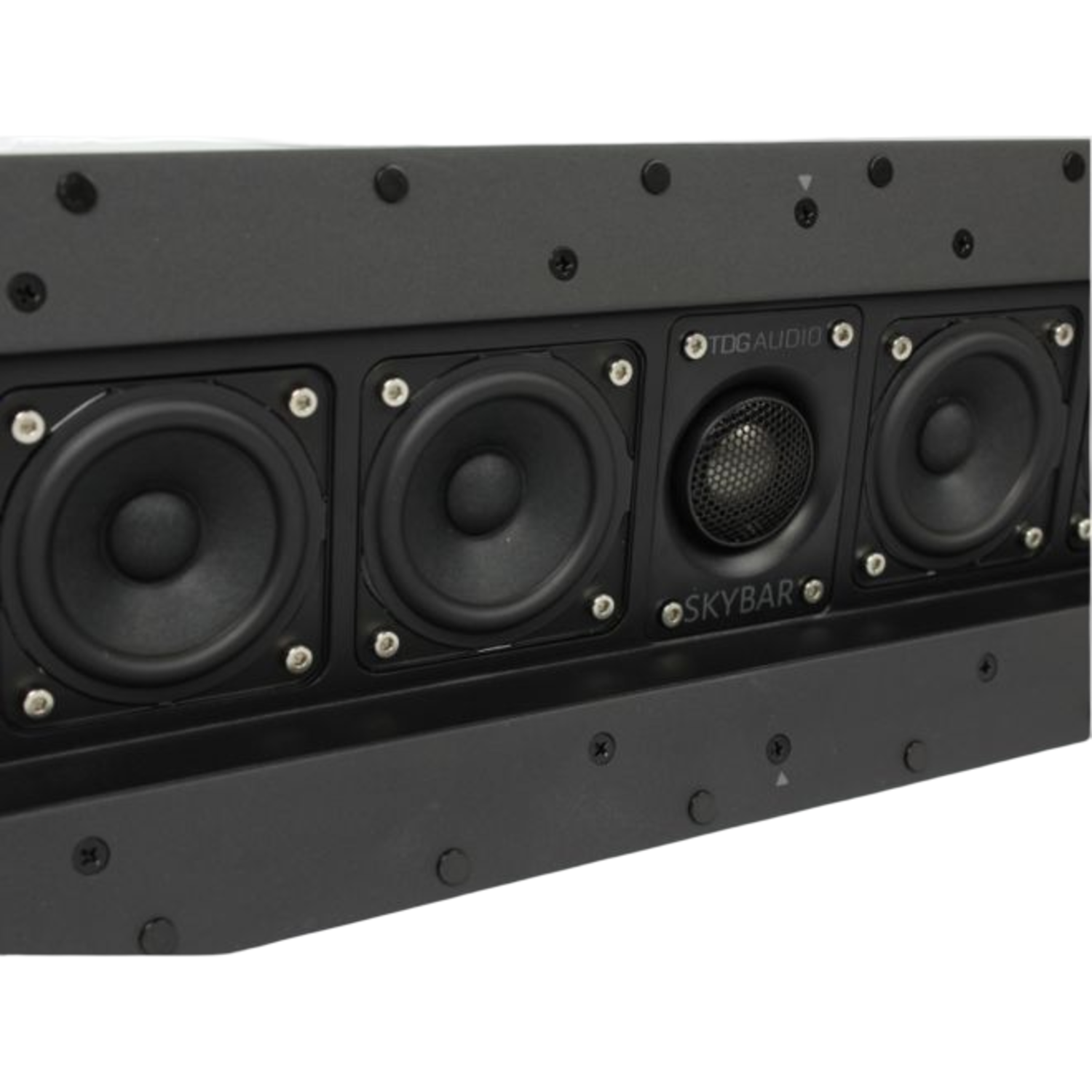

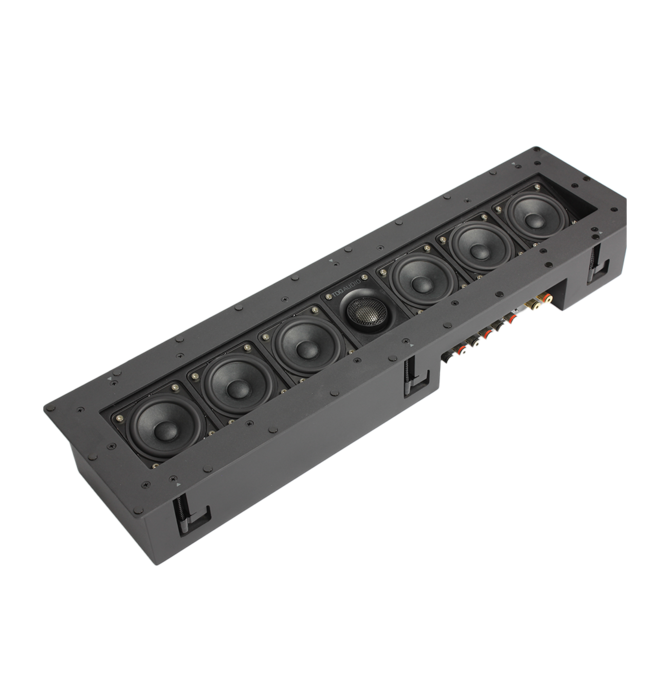

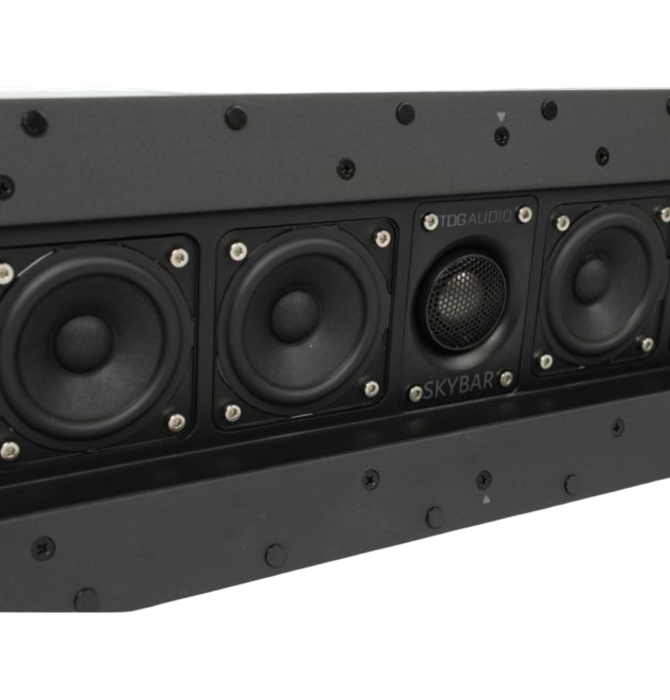

Inside the Skybar™ LCR are six 3” heavy duty, full range drivers – two for the left channel, two for the right channel, and two full-range along with a single 1” titanium dome pivoting tweeter for the center channel. The drivers are mounted on a 15 degree angled baffle to direct sound towards the audience when mounted in-ceiling, or left/right towards the audience when mounted in-wall. Flexible connections allow configuration of the Skybar™ LCR as either a complete left/right/center multi-channel setup – or the entire unit as one channel, perfect for larger listening areas.

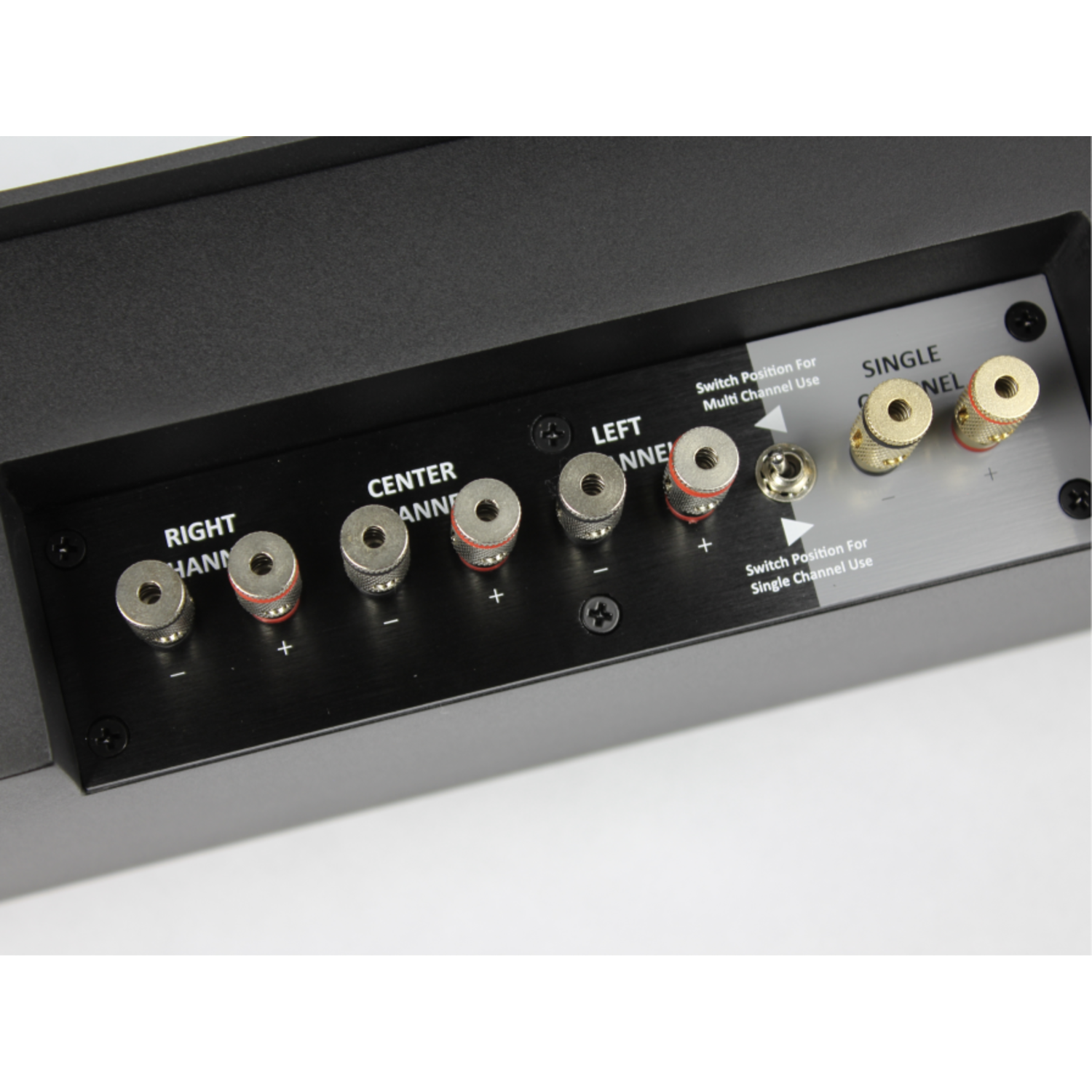

The Skybar™ Satellite features two front-firing 3” full range drivers and a 1” titanium dome pivoting tweeter for side or surrounds channels. A third 3” reflecting speaker is mounted into an angled channel to direct the waveform towards a wall or ceiling for more diffuse rear or height channels. The Skybar™ Satellite can be configured to provide only surround channel information, or both surround and rear or height channel information for a fully immersive home theater experience. Reconfigurations are accomplished by connections on the back panel of either Skybar™ LCR or Skybar™ Satellite. They easily allow single channel or multi-channel configuration with the flip of a switch. Each speaker features a fully sealed high-grade MDF enclosure, precision punched steel baffle for maximum rigidity and come with a bezel-less paintable magnetic grill. TDG Audio Skybar™ LCR and Skybar™ Satellite, 1, 2, 3, 5, 7 channel configurations and more from just 2 models.

Key Features

- Fully Enclosed High-Performance In-Ceiling / In-Wall Soundbar

-  In-Ceiling or In-Wall Installations

 - User Configurable to use as Left, Center & Right Channels OR as a Single Channel ( all speakers play the same signal )

-  One-Piece Steel Frame Construction

 - Integrated Back-Box Constructed of Ultra High-Grade MDF for Performance Control

-  Fully magnetic paintable metal grill ( factory finish: white )

Mechanical Specifications

 Recommended Power: 5 - 100 Watts

 Overall Dimensions: 7” ( H ) x 26.5” ( W ) x 3.5” ( D )

 Cut-Out Dimensions: 6” ( H ) x 25.5” ( W )

 Mounting Depth: 3.5″
