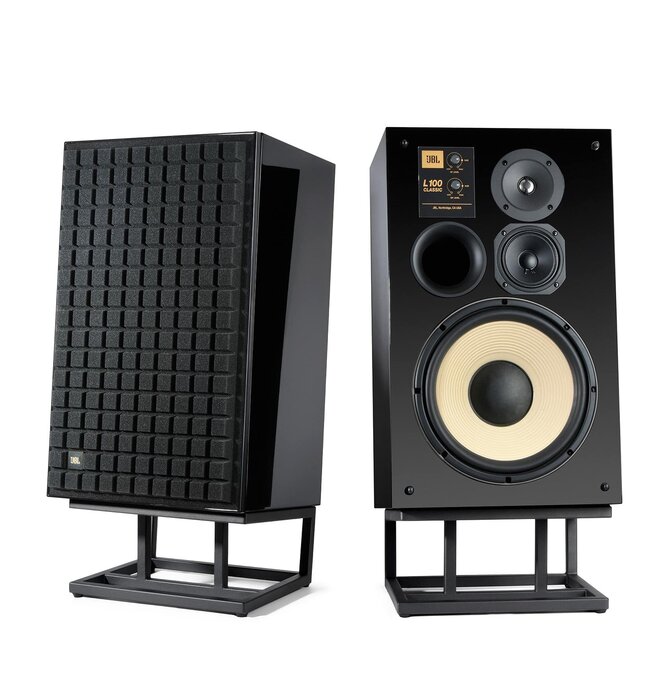

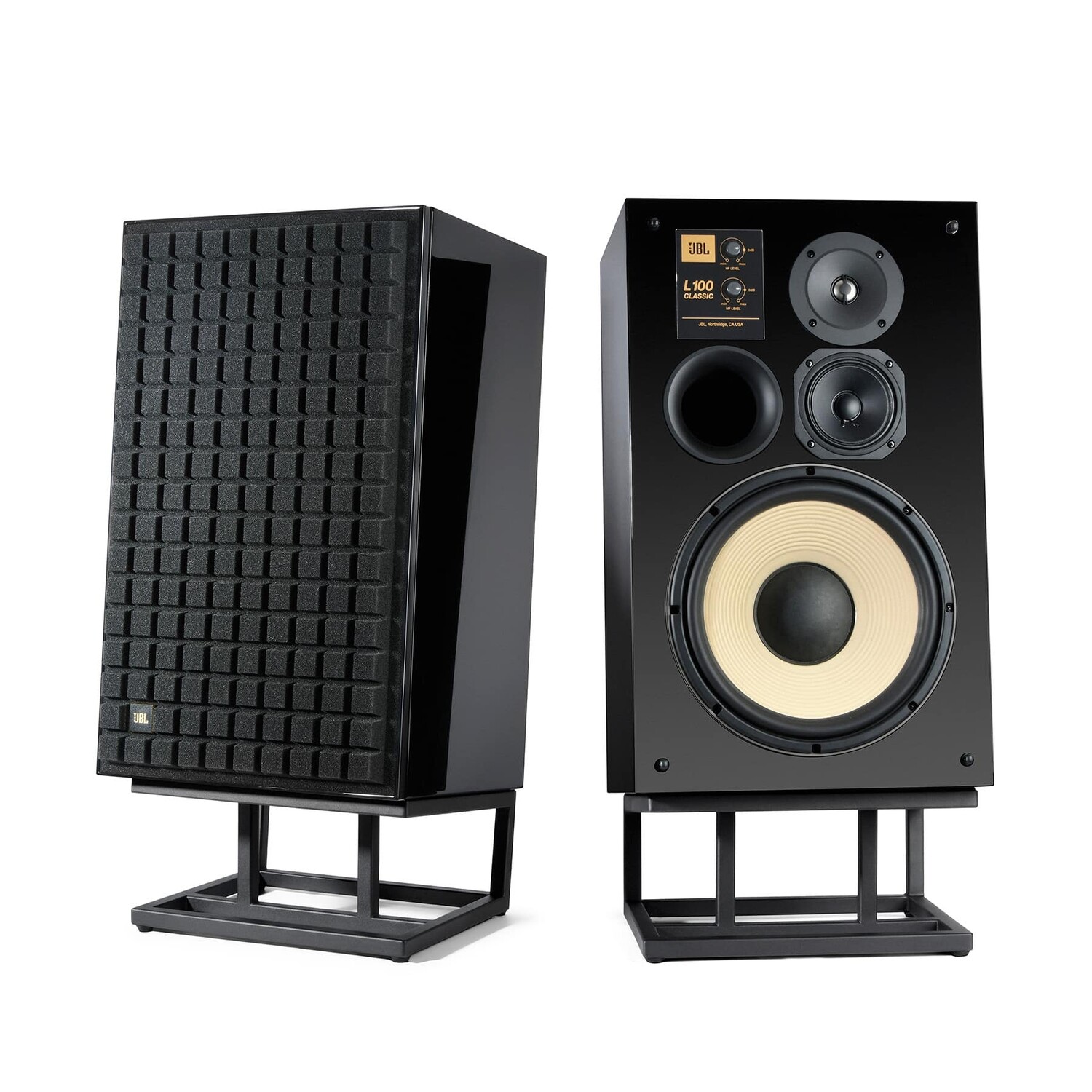

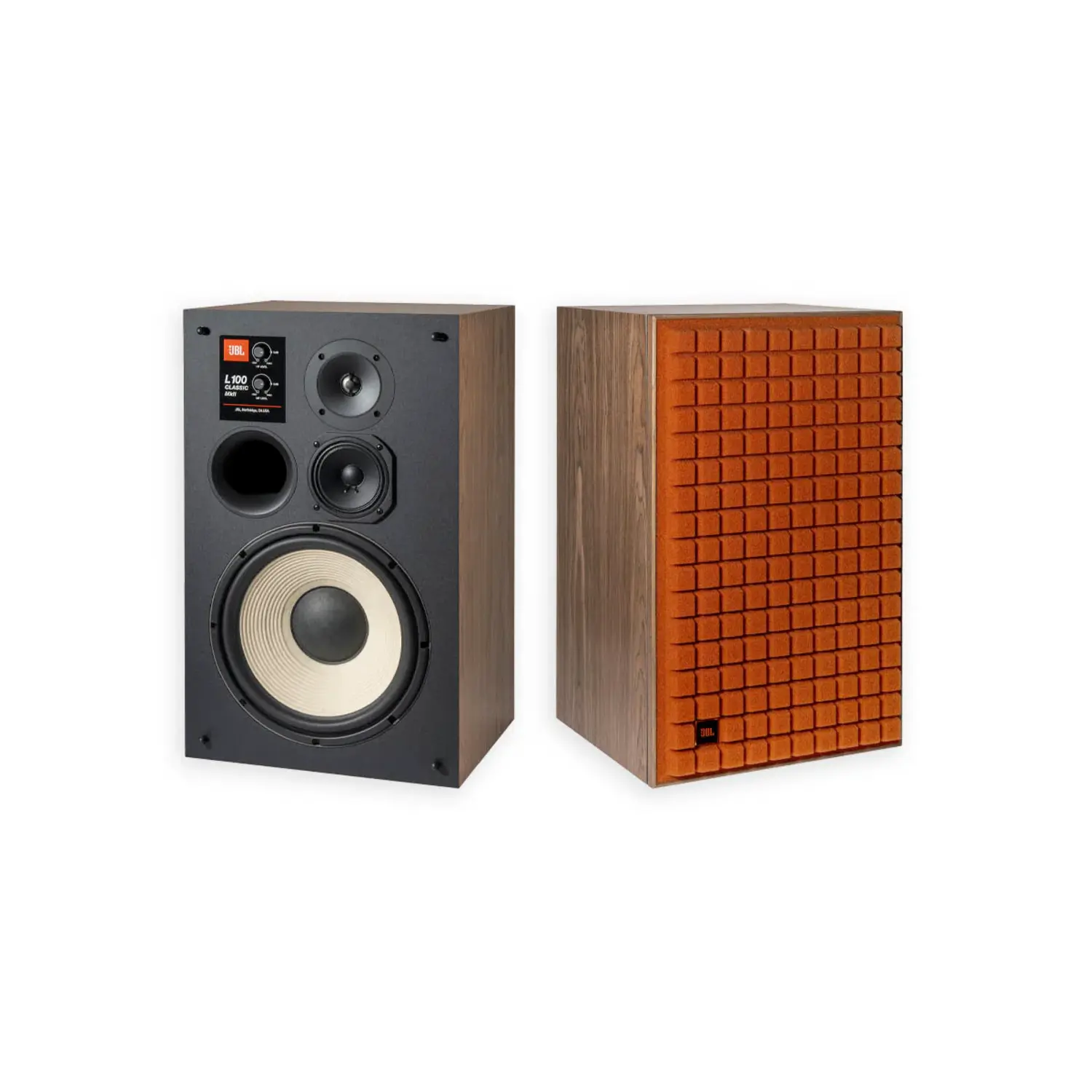

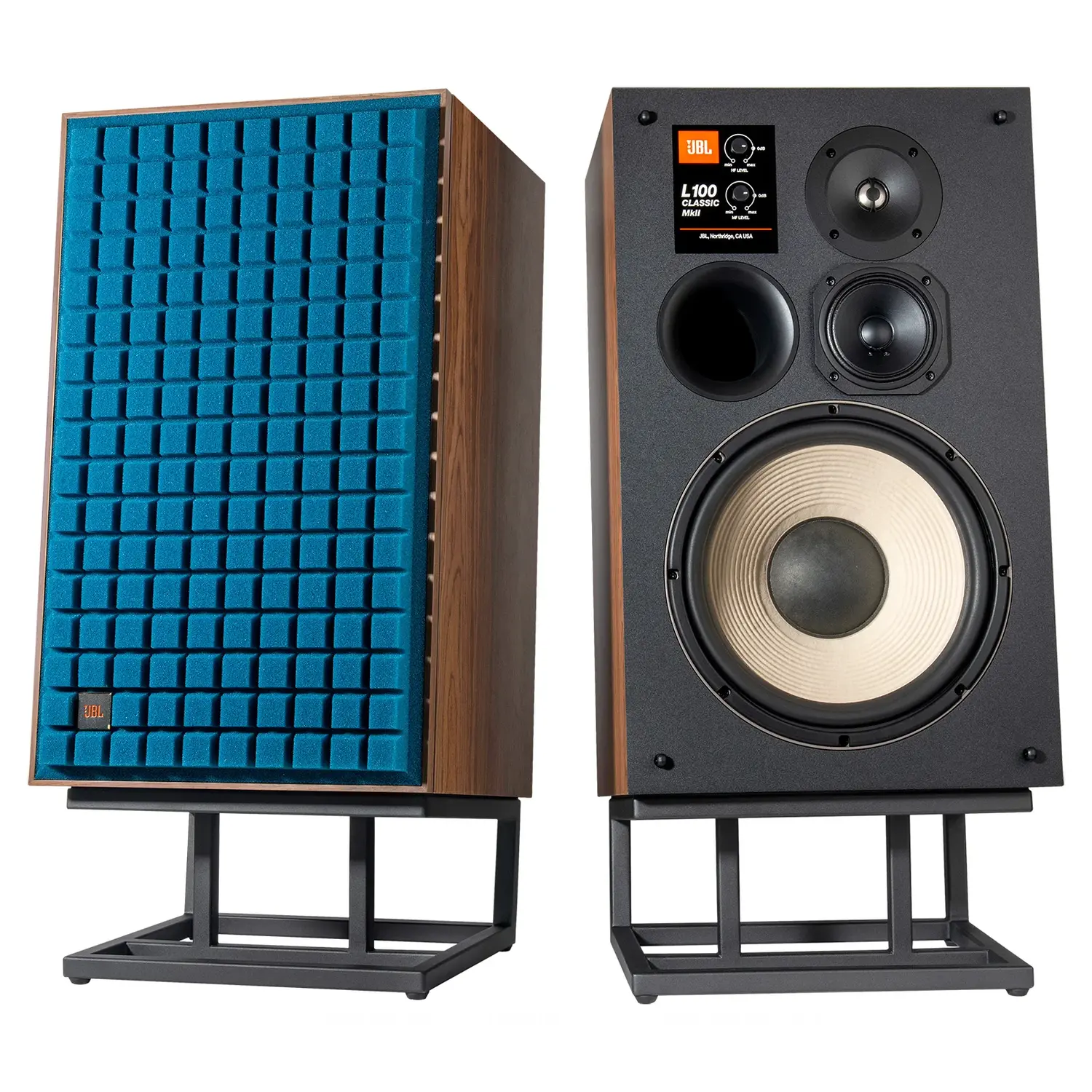

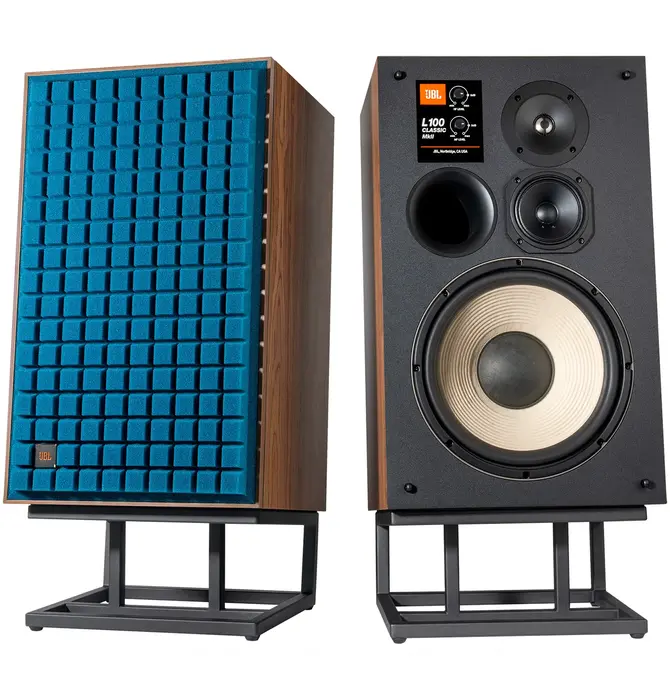

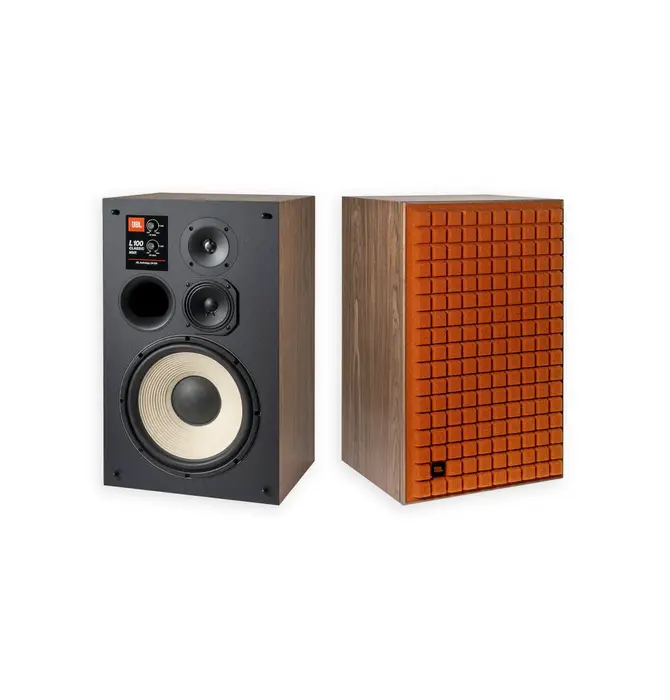

JBL L100 Classic Bookshelf Speaker

In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL’s history. In 2018, JBL introduced the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance. The 1" titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube. The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.

Stands not Included.

Whats in the Box:

- Bookshelf loudspeaker

- Grille

- Owner's Manual

3-way Bookshelf Loudspeaker Specifications

Low-Frequency Transducer: 12” pure pulp cone woofer ( JW 300PW-8 )

Mid-Frequency Transducer: 5.25” polymer-coated pure pulp cone ( 105H-1 )

High-Frequency Transducer: 1” titanium dome with soft surround ( JT 025 TI-4 )

Maximum Recommended Amplifier Power: 200 watts RMS

Frequency Response ( -6db ): 40 Hz – 40k Hz

Sensitivity ( 2.83 Volt @ 1M ): 90 dB

Nominal Impedance: 4 Ohms

Crossover Frequencies: 450 Hz, 3.5k Hz

Controls: Attenuators for MF & HF drivers

Inputs: Five-way gold-plated binding posts

Dimensions ( H x W x D ): 25” x 15.3” x 14.6”

Weight: 58.5 lbs

Finishes: Genuine walnut veneer enclosure with quadrex foam grille

Note: For optimum performance, use with JS-120 Floor Stands
