Kaleidescape Strato Combines All of the Color, Sound, and Crip Detail of the True 4K Ultra HD with The Convenience of Internet Delivery.

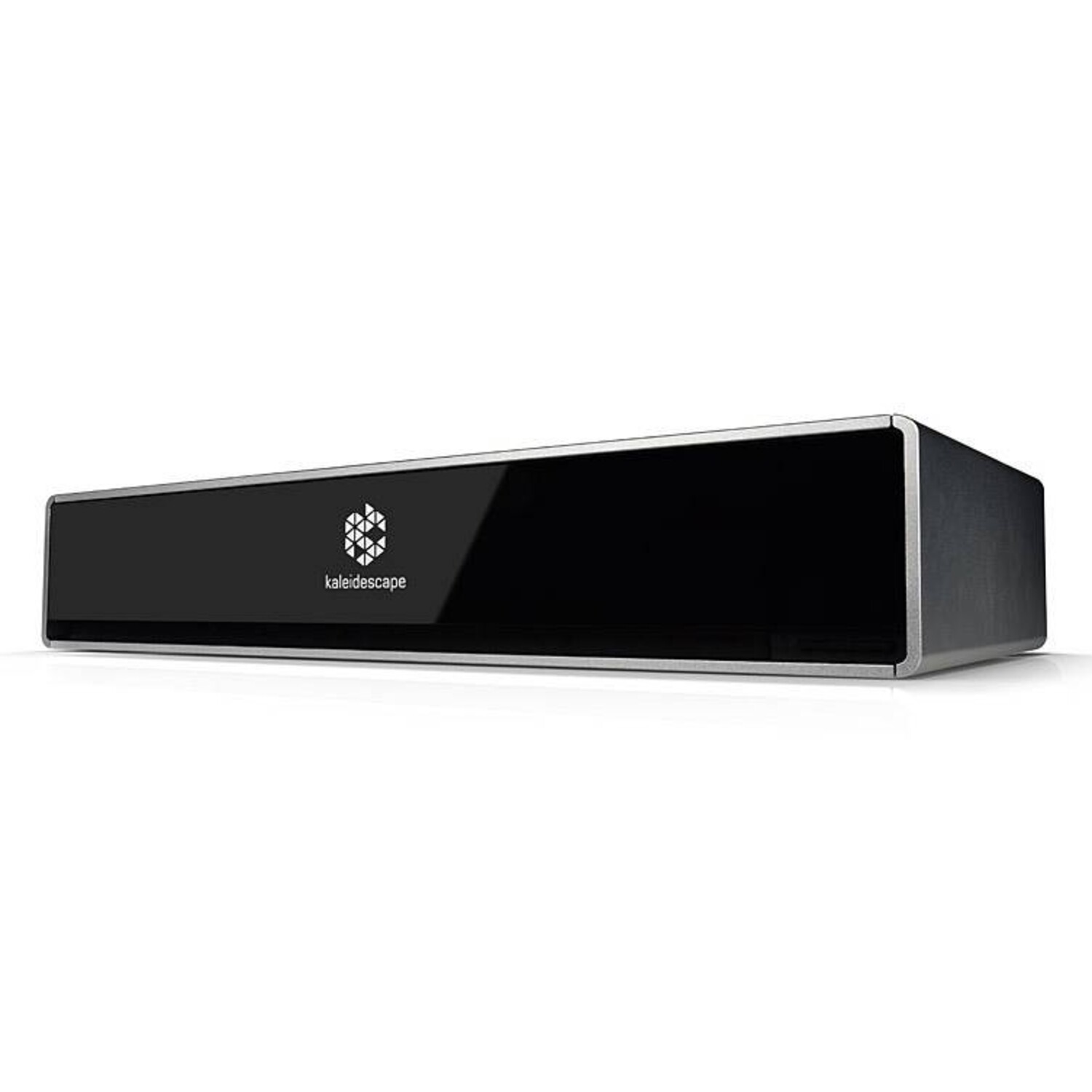

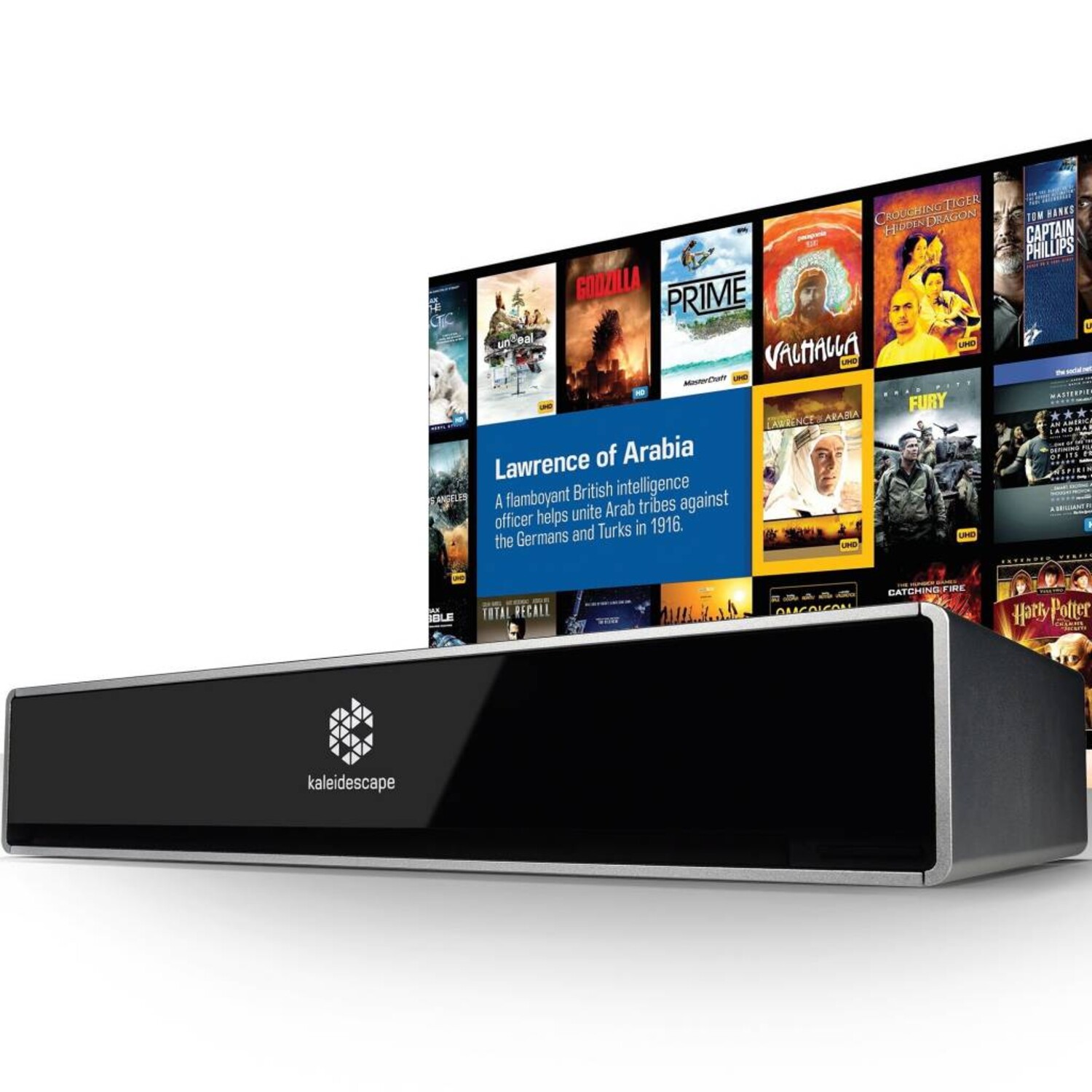

Kaleidescape designed the Strato movie player to provide an immersive home- cinema experience, with better audio and video playback quality than most commercial theaters.

Unlike streaming services, each movie is downloaded and stored on a hard drive, on either a Kaleidescape Terra movie server, or a Kaleidescape Alto or Strato movie player. Strato plays downloaded 4K Ultra HD movies at up to 100 Mbps and 60 frames per second, without the startup delays, buffering messages, or quality drops that are so common with streaming services. Strato plays downloaded Blu-ray and DVD quality movies in 4K using advanced upscaling algorithms.

Strato supports lossless multichannel audio, and is capable of playing HDR content on televisions and projectors that can process open standard 10-bit HDMI® 2.0a HDR. The Strato onscreen user interface is also displayed in full 4K Ultra HD, at 60 frames per second, resulting in uid animation and a stunning visual impact.

Strato can be purchased with or without an internal 6TB hard drive that can store up to 100 4K Ultra HD movies, 200 Blu-ray quality movies, or 900 DVD quality movies. Strato equipped with an internal hard drive can be used standalone or
in a system with other Encore components. The Strato with or without an internal hard drive can play back from a Terra movie server, or from another Kaleidescape Strato or Alto with internal storage. Movies start immediately, without trailers or warnings, and you can jump right to your favorite scenes and songs, without fast forwarding.

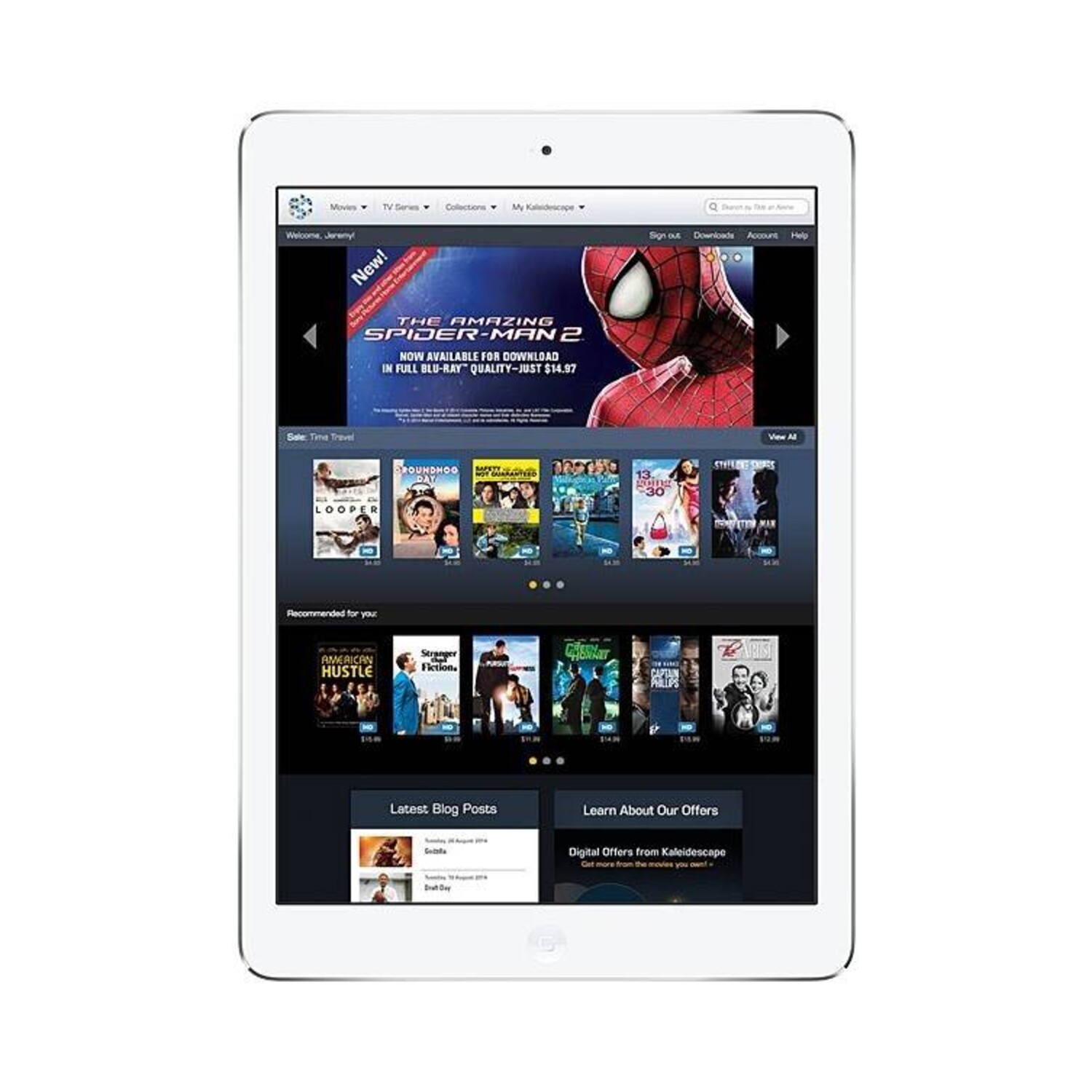

The Kaleidescape Movie Store is the world’s only online movie store that caters
to the discriminating consumer with a massive library of the nest content from Hollywood’s major motion-picture studios. The Kaleidescape Movie Store offers over 100 4K Ultra HD titles, and thousands of movies in full Blu-ray HD quality with multichannel lossless audio (including Dolby Atmos). These Blu-ray quality movies provide superb results when Strato scales them up to 4K.

Technical Details & Specifications

Dimensions: 17" × 3.1" × 10" (W × H × D) (43.2cm × 7.9cm × 25.4cm)

Weight: 13.7 lbs

Power:

Max consumption: 30W

Typical: 25W

High power standby: 6.0W

Low power standby: 0.50W

External power adapter, 100-240VAC

Network:

100Base-TX/1000Base-T Ethernet (RJ45 connector)

Integrated 802.11ac Wi-Fi

Other Connection: USB 3.0 (reserved)

Control:

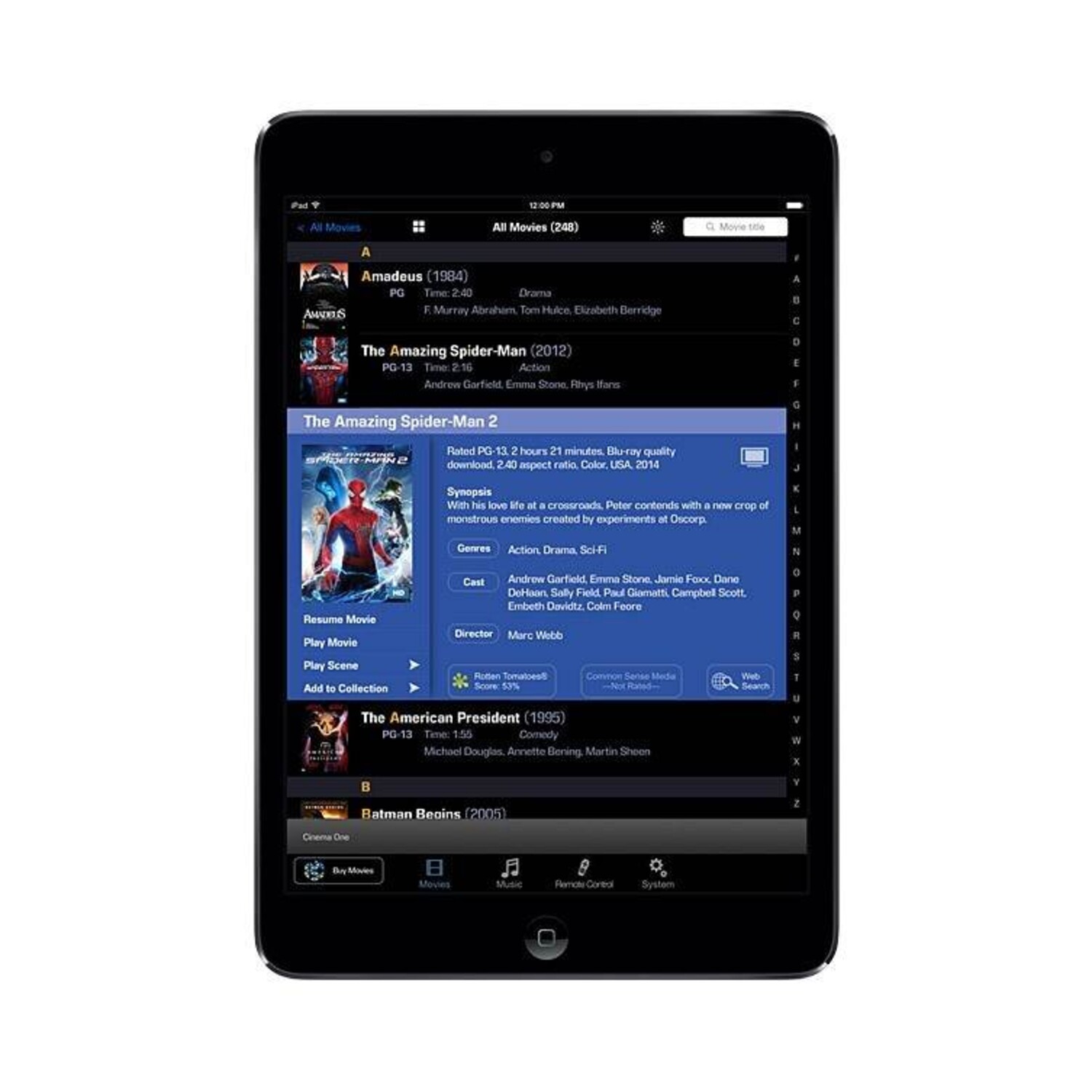

Ethernet control from Crestron, AMX, Control4, Savant, the Kaleidescape App for iPad, and other apps and control systems

Kaleidescape Remote included

Front-panel IR receiver window

IR input (1/8" mini-plug)

Environment:

Operating temperature: 41 to 95°F (5 to 35°C)

Relative humidity: 20% to 80% (operation) 5% to 90% (storage)

Heat output: 136 BTU/hr (40W) max

Air ow: 10 CFM (17 m3/hr) max

Ventilation: Minimum 1" 2.5cm) space at the front
                    Minimum 2" (5cm) space at the rear

Rack Mount: Rack ears available for mounting in a 19" rack, 2U space (sold separately)

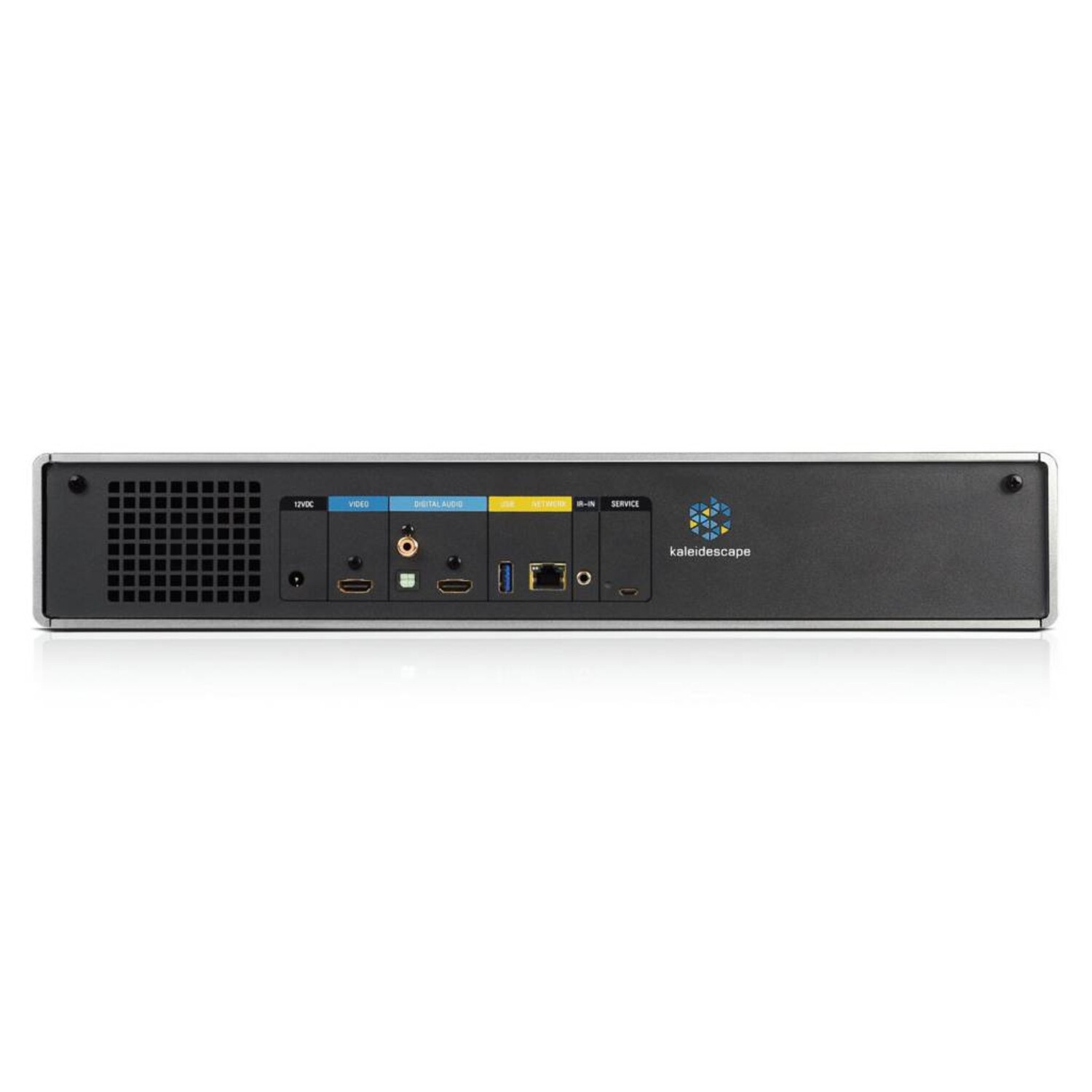

Video Output: HDMI 2.0a (labelled “VIDEO”)
                       HDCP 2.2 copy protection

Video Display Formats:

Resolutions: 2160p60/50/30/25/24, 1080p60/50/24, 1080i60/50, 720p60/50, 576i, 576p, 480i, 480p

Chroma: 4:4:4 8-bit up to 2160p60, 4:4:4 10/12-bit up to 2160p30, 4:2:2 12-bit up to 2160p60, 4:2:0 8/10/12-bit at 2160p50/60 only

Color spaces: BT.2020, BT.709, BT.601

Aspect ratios: 1.78:1 and 2.35:1 (CinemaScape), automatic or user interface selectable

Audio Outputs:

HDMI 2.0a (combined with video on the VIDEO connector)

HDMI 1.4 (audio-only on the DIGITAL AUDIO connector)

Digital (coaxial RCA and TOS-link connectors)

Audio Formats:

Dolby Atmos

Dolby TrueHD

Dolby Digital

DTS:X

DTS-HDMasterAudio

DTS Digital Surround

PCM

MPEG audio

Storage: Optional 6TB of internal storage for up to 100 4K Ultra HD movies, 200 Blu-ray quality, or 900 DVD quality movies

Media: Kaleidescape Movie Store downloads, including high-bit-rate 4K Ultra HD movies in 10-bit color, with and without high dynamic range (HDR), and movies that precisely match the quality available on Blu-ray disc and DVD... DVD, DVD-R, DVD-RW, DVD+R, DVD+RW (from Kaleidescape Disc Server).

Limited Warranty: 3 years (extendable)
