Features:

- 500W Total System Power (4 x 125W)

- High performance power platform

- 70V / 100V / Low Impedance Compatibility

- Flexible I/O

- State-of-the-art DSP control and set-up

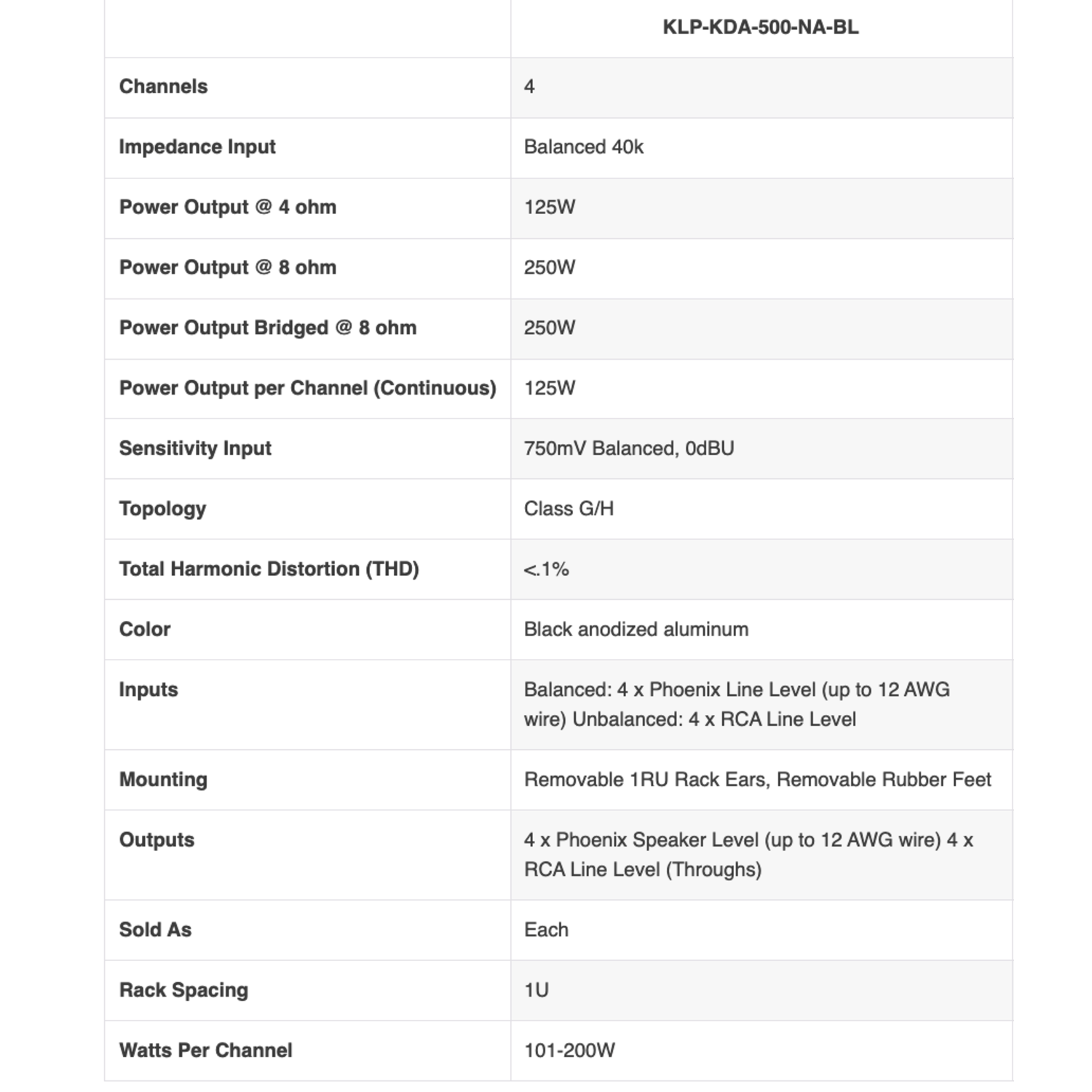

Specifications:

- Part Number: 120V: 1063257 230V: 1063260

- Amplifier Type: High-Efficiency Class G/H

- Amplifier Power: 500W Total System Power 4 x 125W Per Channel

- Inputs: Balanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level

- Outputs: 4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs)

- Input Sensitivity: 750mV Balanced, 0dBU

- Input Impedance: Balanced 40k

- THD: <1% @ Rated Output

- Signal-To-Noise: -100dB Below Rated Output

- Enclosure Type: Front Face: ABS Plastic Case: Machine Formed Steel

- Rack Unit: 1RU

- Product Dimensions: 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)

- Product Weight: 15 lbs (6.82 kg)

- Mounting Options: Removable 1RU Rack Ears, Removable Rubber Feet
