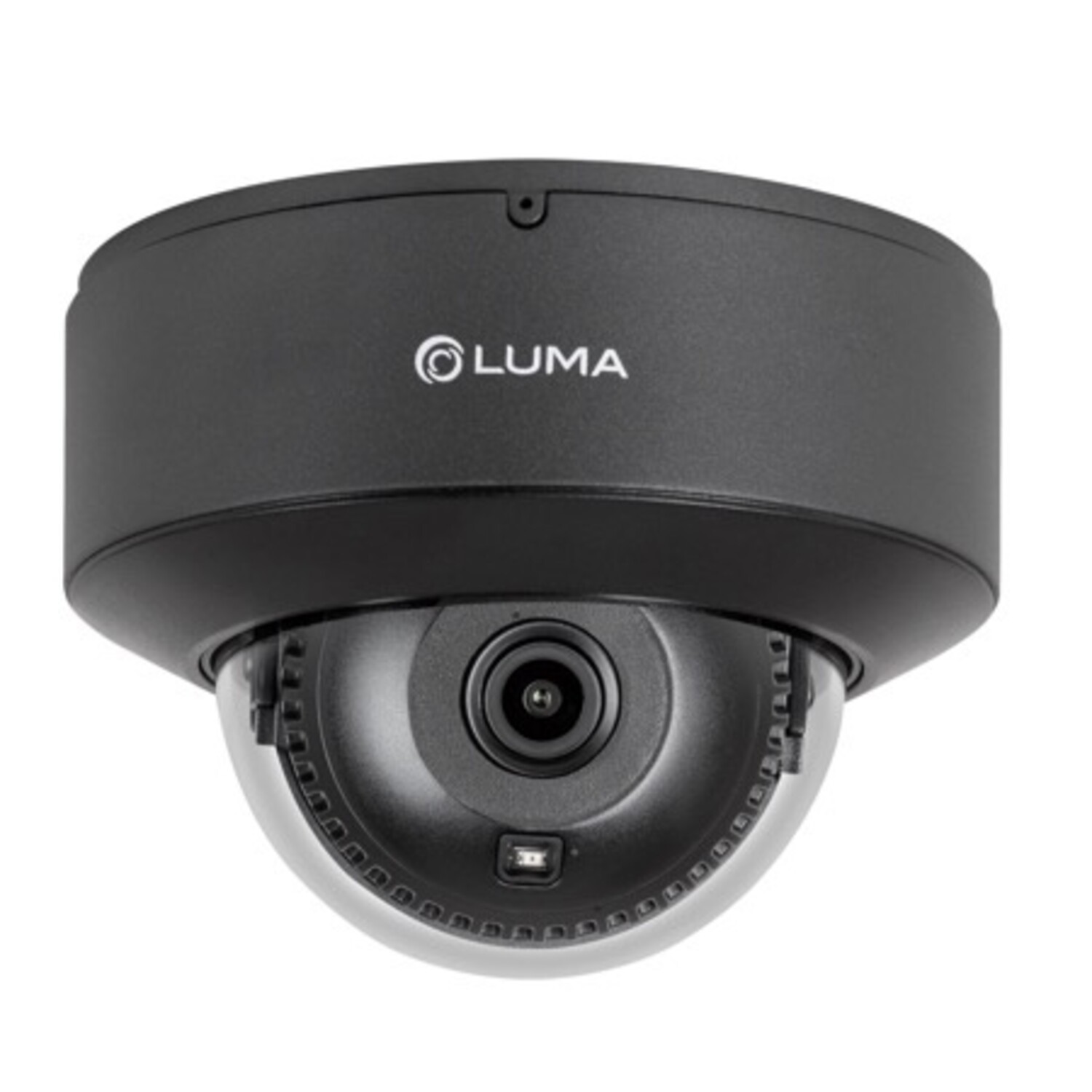

LUM-220-IP-DFB | LUM-220-IP-DFW |
---|---|
Outdoor Rating: IP67
|
IP67
|
Protection Rating: IK10
|
IK10
|

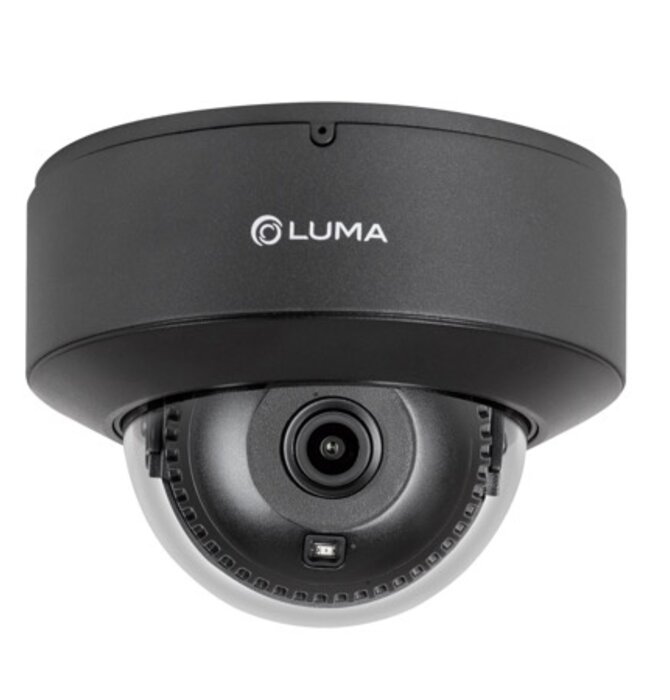

Color: Black
|

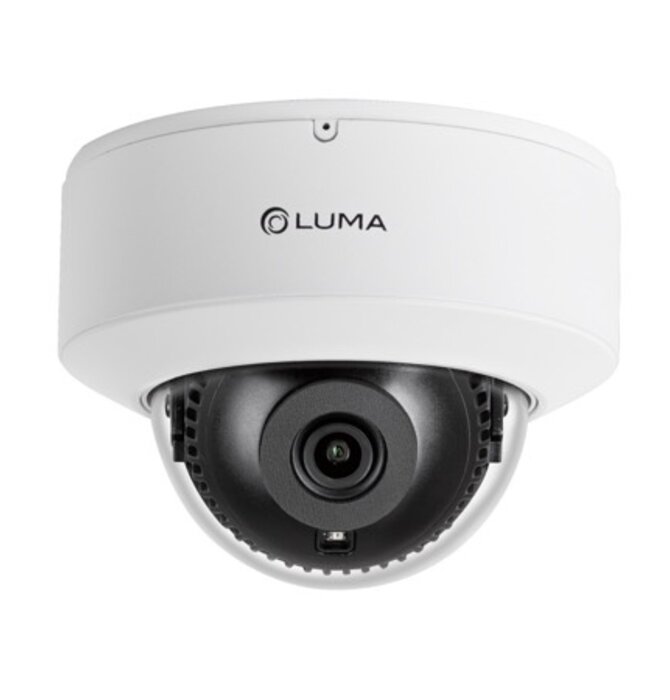

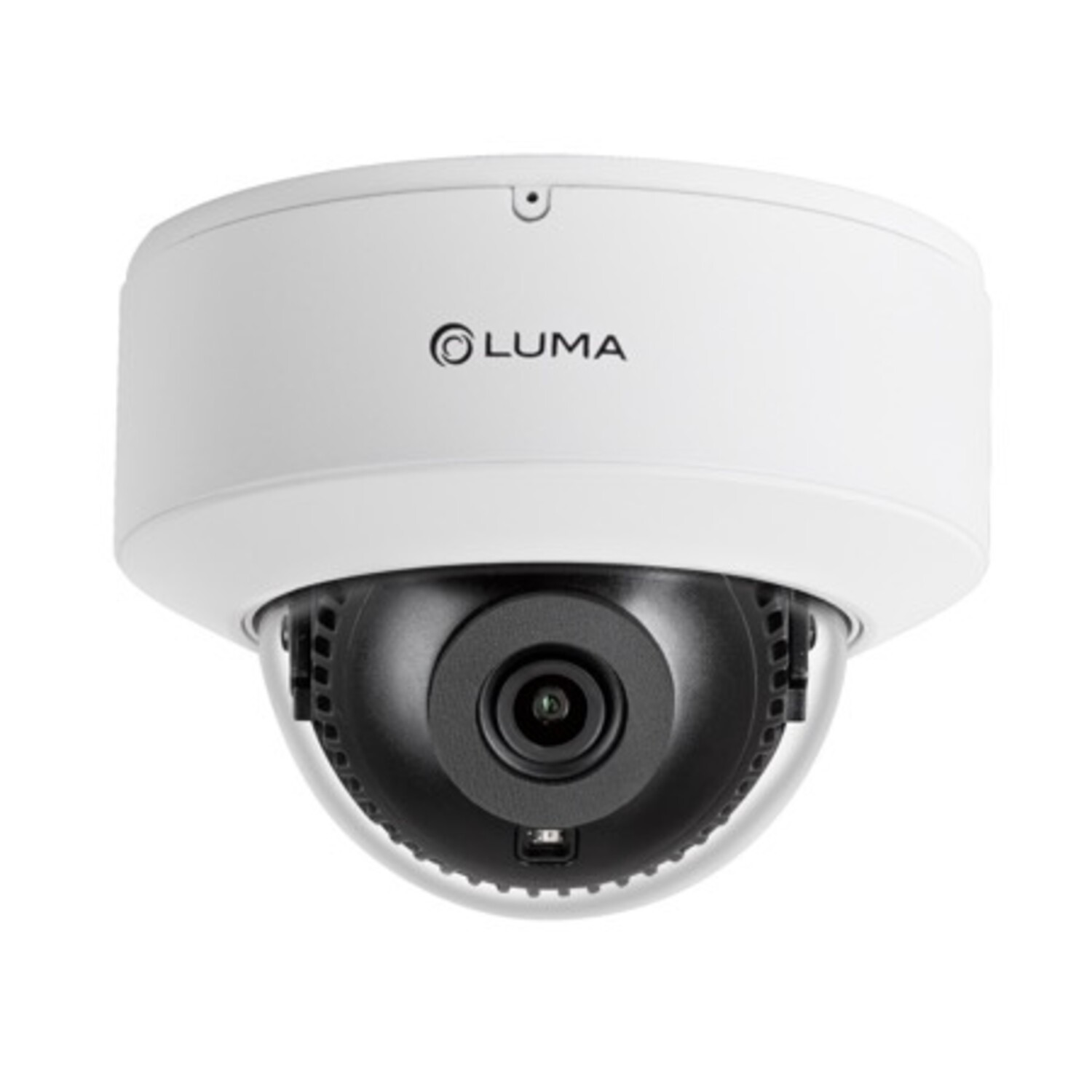

White
|
Image Sensor: 2MP (1920 x 1080 Resolution)
|
2MP (1920 x 1080 Resolution)
|
Frame Rate: Max 30FPS
|
Max 30FPS
|
Shutter Speed: 1/2s - 1/100000s
|
1/2s - 1/100000s
|
Lens: 2.8mm
|
2.8mm
|
Minimum Illumination:0.005 lux, AGC ON; 0 lux with IR
|
0.005 lux, AGC ON; 0 lux with IR
|
Aperture: F1.6
|
F1.6
|
Field of View: Horizontal: 106° Vertical: 55°
|
Horizontal: 106°
Vertical: 55° |
Angle: Pan: 0° - 355°
Tilt: 0° - 67° Rotation: 0° - 355° |
Pan: 0° - 355°
Tilt: 0° - 67° Rotation: 0° - 355° |
IR Range: 20 - 30m
|
20 - 30m
|
Smart IR: Yes
|
Yes
|
WDR: 120dB
|
120dB
|
Backlight Compensation: Yes
|
Yes
|
Highlight Compensation: Yes
|
Yes
|
DNR: 3D DNR
|
3D DNR
|
Recording Trigger: Motion, Line Crossing, Intrusion, Target Counting
|
Motion, Line Crossing, Intrusion, Target Counting
|
AI Event: Human, Vehicle & Non-motor Vehicle Detection
|
Human, Vehicle & Non-motor Vehicle Detection
|
Motion Detection: Yes
|
Yes
|
Image Snapshot: Yes
|
Yes
|
Streams: Main Stream: Up to 2MP H.265+
2nd Stream: 704 x 480 H.264 3rd Stream: 704 x 480 H.264 4th Stream: 1280 x 720 H.265, H.264, MJPEG |
Main Stream: Up to 2MP H.265+
2nd Stream: 704 x 480 H.264 3rd Stream: 704 x 480 H.264 4th Stream: 1280 x 720 H.265, H.264, MJPEG |
Microphone: Yes
|
Yes
|

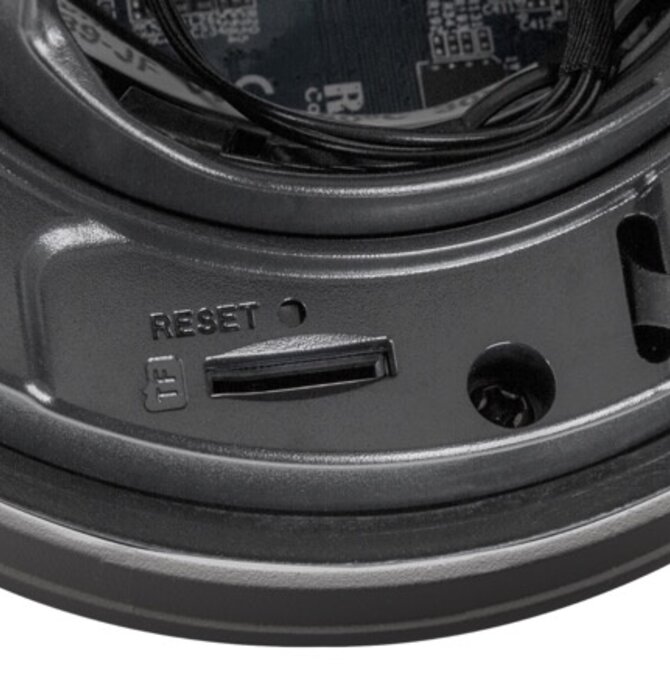

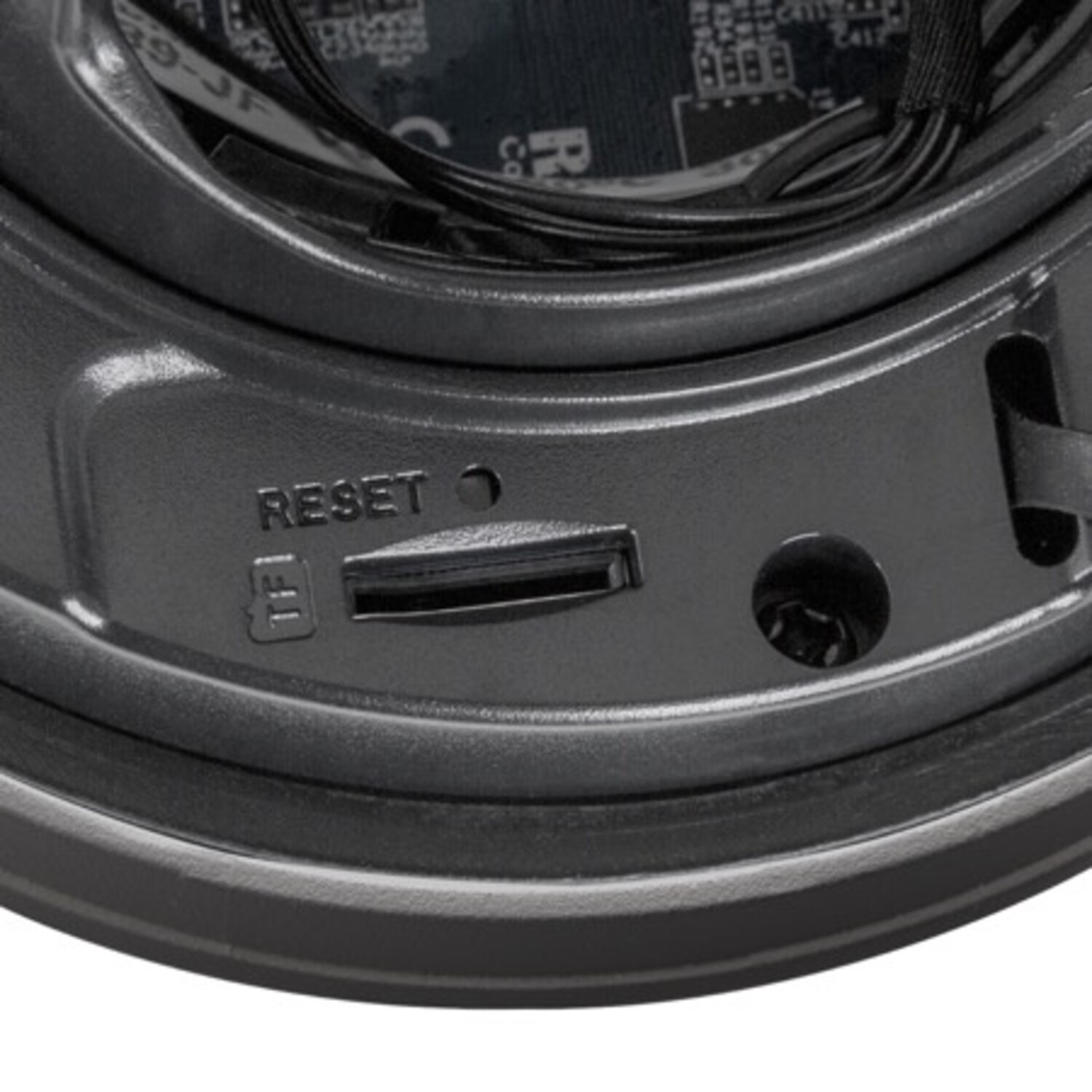

SD Card Support: Yes, up to 256GB
|
Yes, up to 256GB
|
Audio Input Connectors: 1 Channel / No
|
1 Channel / No
|
Alarm Contact Inputs/Outputs: No
|
No
|

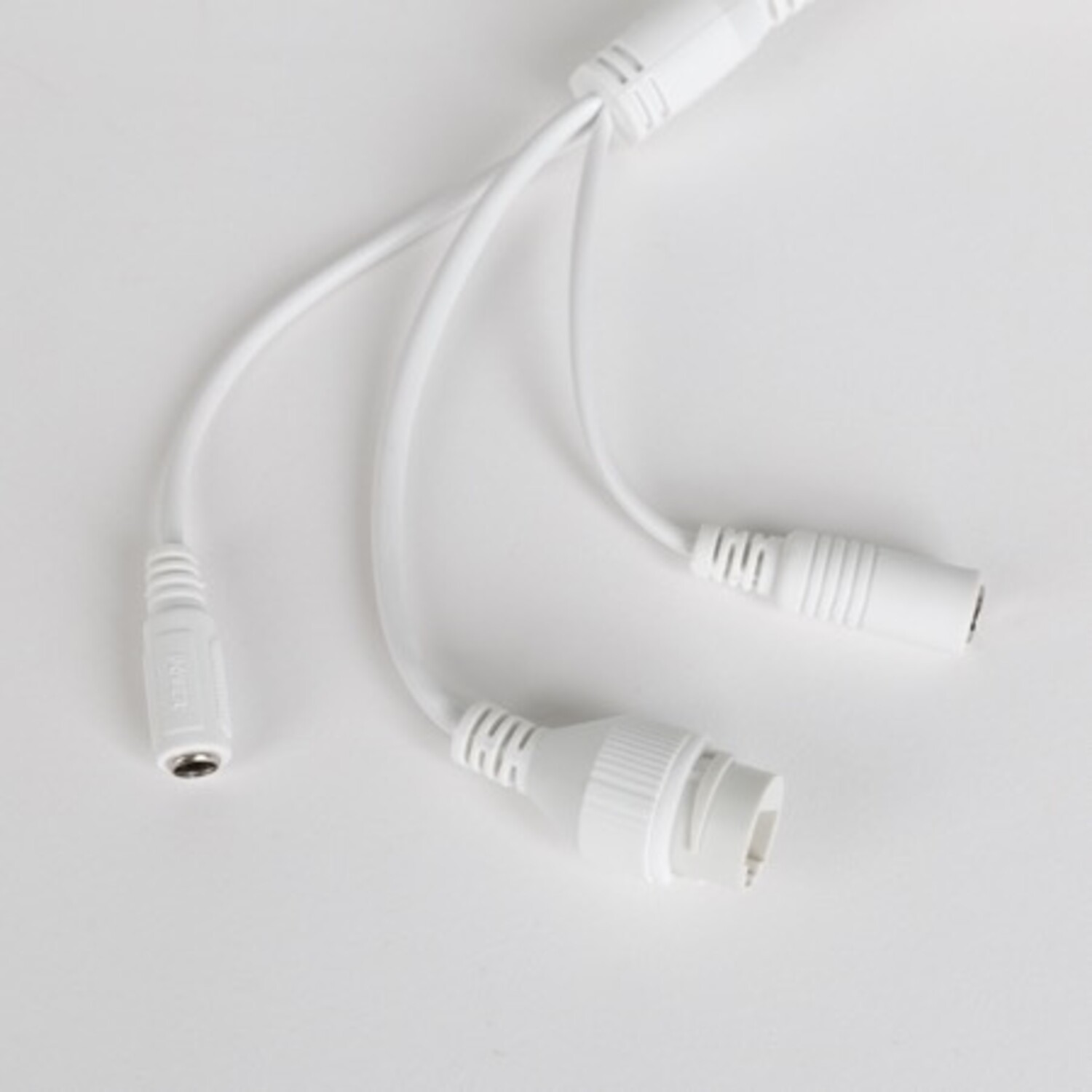

Network / Ethernet Desc: PoE, IEEE802.3af
|
PoE, IEEE802.3af
|
CVBS Output: No
|
No
|
Browser Support: Chrome, Firefox, Safari, Edge, IE Mode in Edge
|
Chrome, Firefox, Safari, Edge, IE Mode in Edge
|
Power Consumption: DC12V/PoE, < 5W
|
DC12V/PoE, < 5W
|
Certifications: ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
|
ETL Listed, CE, FCC, NDAA Compliant, ONVIF Conformance
|
Operating Temperature: -22 °F - 140°F (-30 °C - 60°C)
|
-22 °F - 140°F (-30 °C - 60°C)
|
Dimensions (W x H x D): 119mm x 87.8mm
|
119mm x 87.8mm
|
