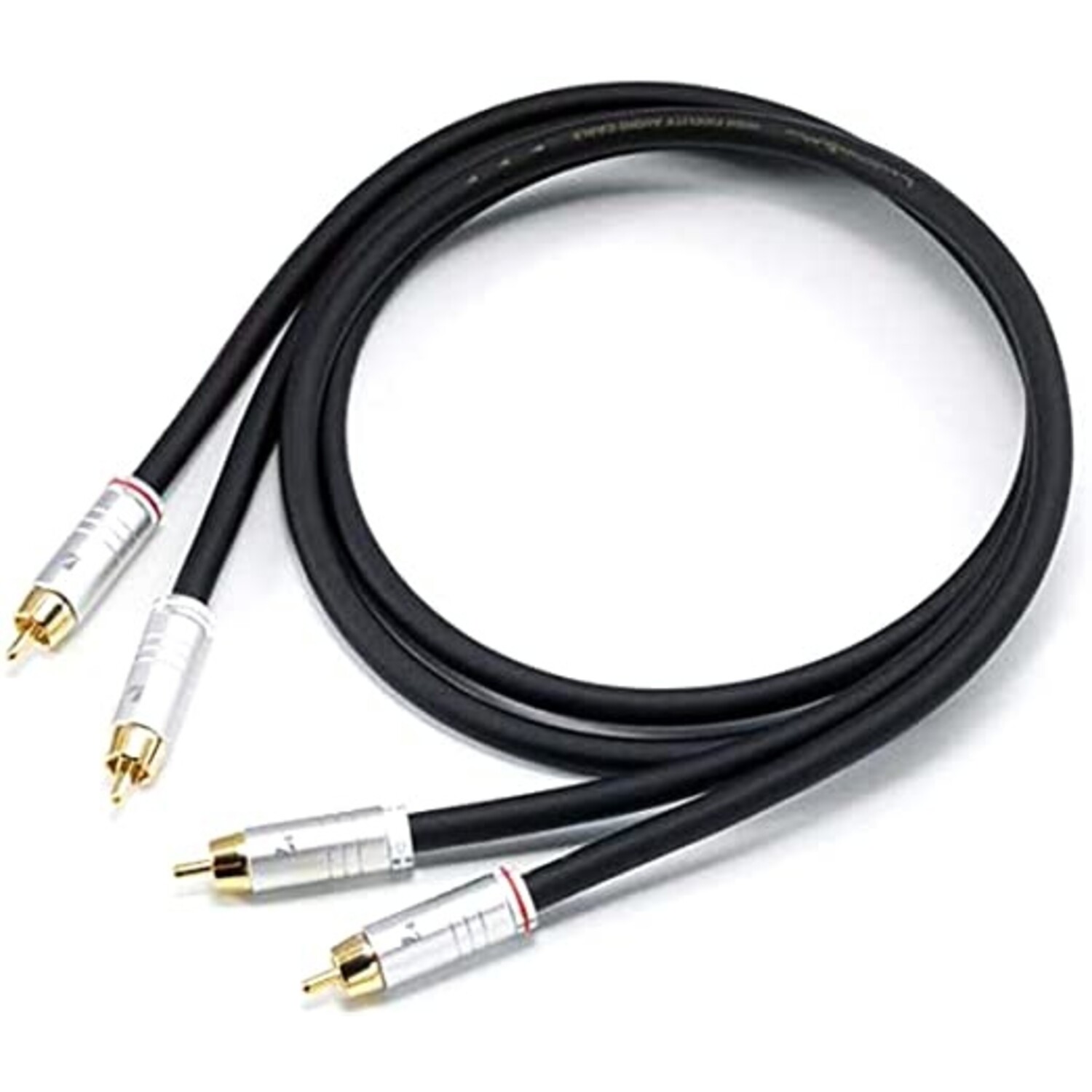

Premium High-Purity Oxygen-free Audio Cables

Premium High-Purity Oxygen-free Audio Cables

$320.00
          (0 reviews)
Out of stock
+
  Add to Wishlist

Performance and features

Uses high-purity oxygen-free copper (OFC) wire for the core wire and shield wire.

Minimize the phase shift in the high-frequency region by making the hot and cold transmission lines the same core structure.

Uses core wire taping made of Japanese paper that has an antistatic effect.

By using a structure in which intervening cotton threads containing a large amount of air layer are inserted between the insulated conductors, an increase in capacitance at low frequencies is prevented.

To achieve natural signal transmission without clogging, the twist pitch of the core wire has been tuned to a gentle 90 mm sound quality.

Specifications

- Cable length 1.0m
- Configuration 2-core shield, 90mm gentle twist structure
- Core wire Oxygen-free copper (OFC) 0.18 mm x 30
- Insulator Polypropylene foam (red, white)
- Conductor twist pitch 90mm
- Shield wire Oxygen-free copper (OFC) 0.12 mm x 128 wires
- Sheath PVC (black)
- Conductor resistance 26.4Ω/km or less (20℃)
- Insulation resistance 1,000MΩ・km or more (20℃)
- Capacitance 42pF/m or less
- Withstand voltage AC500V (1 minute)
- Cable outer diameter 8.0mm
