Reference 15000 Series Cables

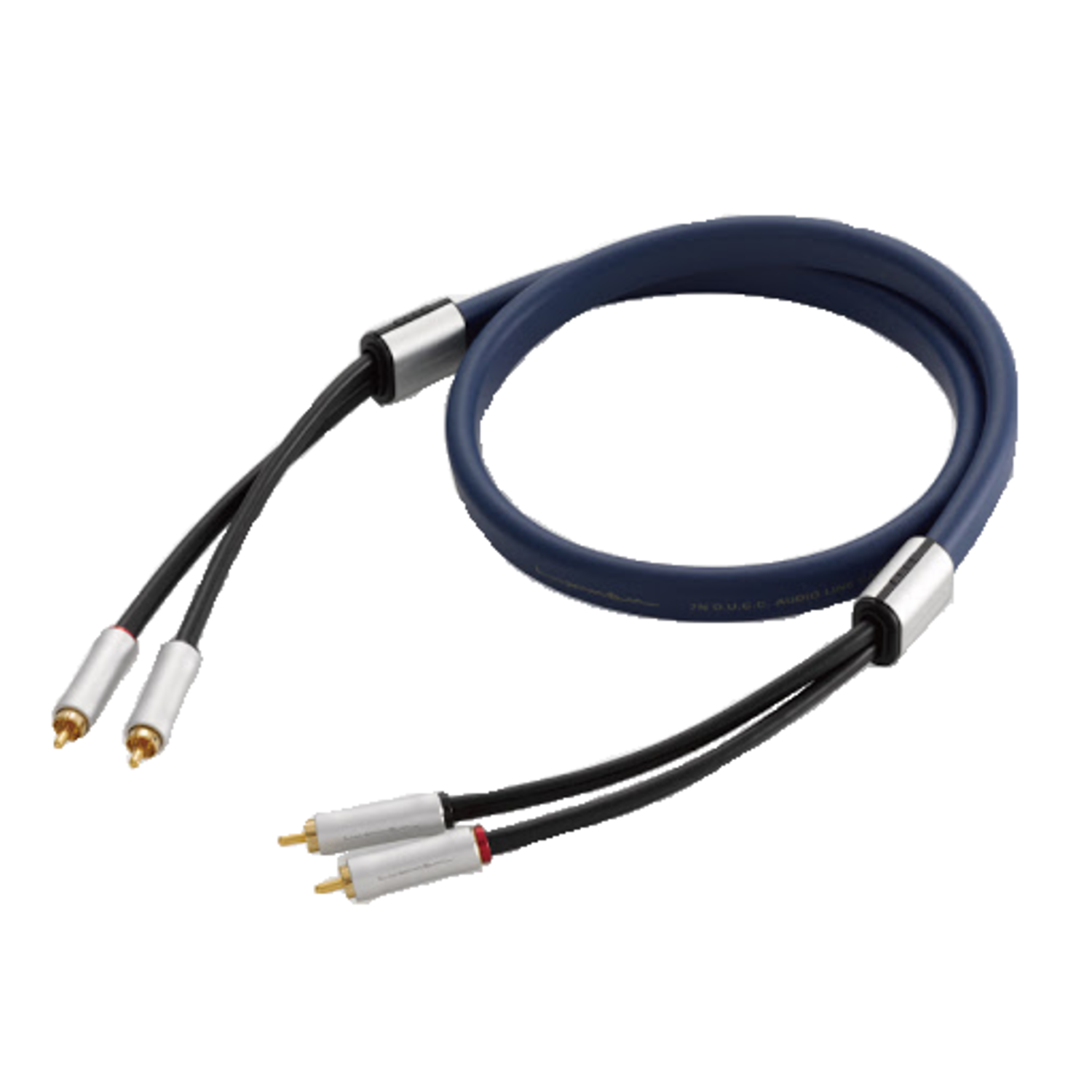

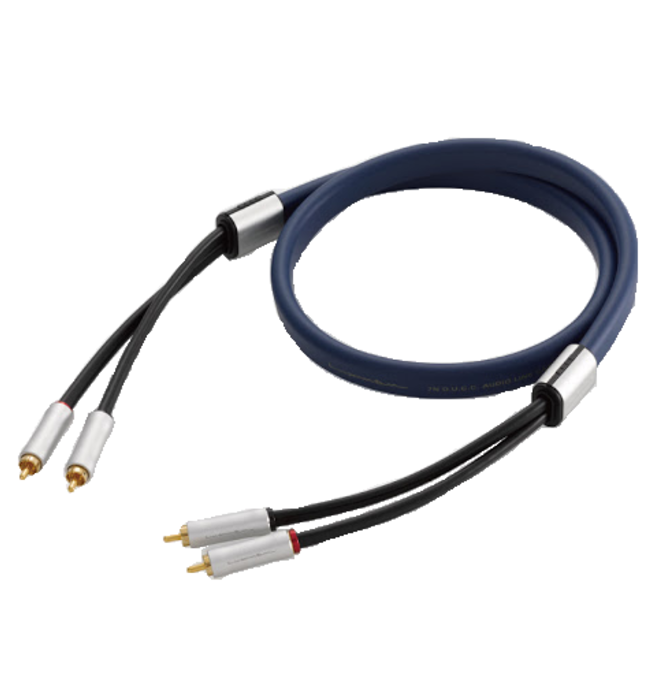

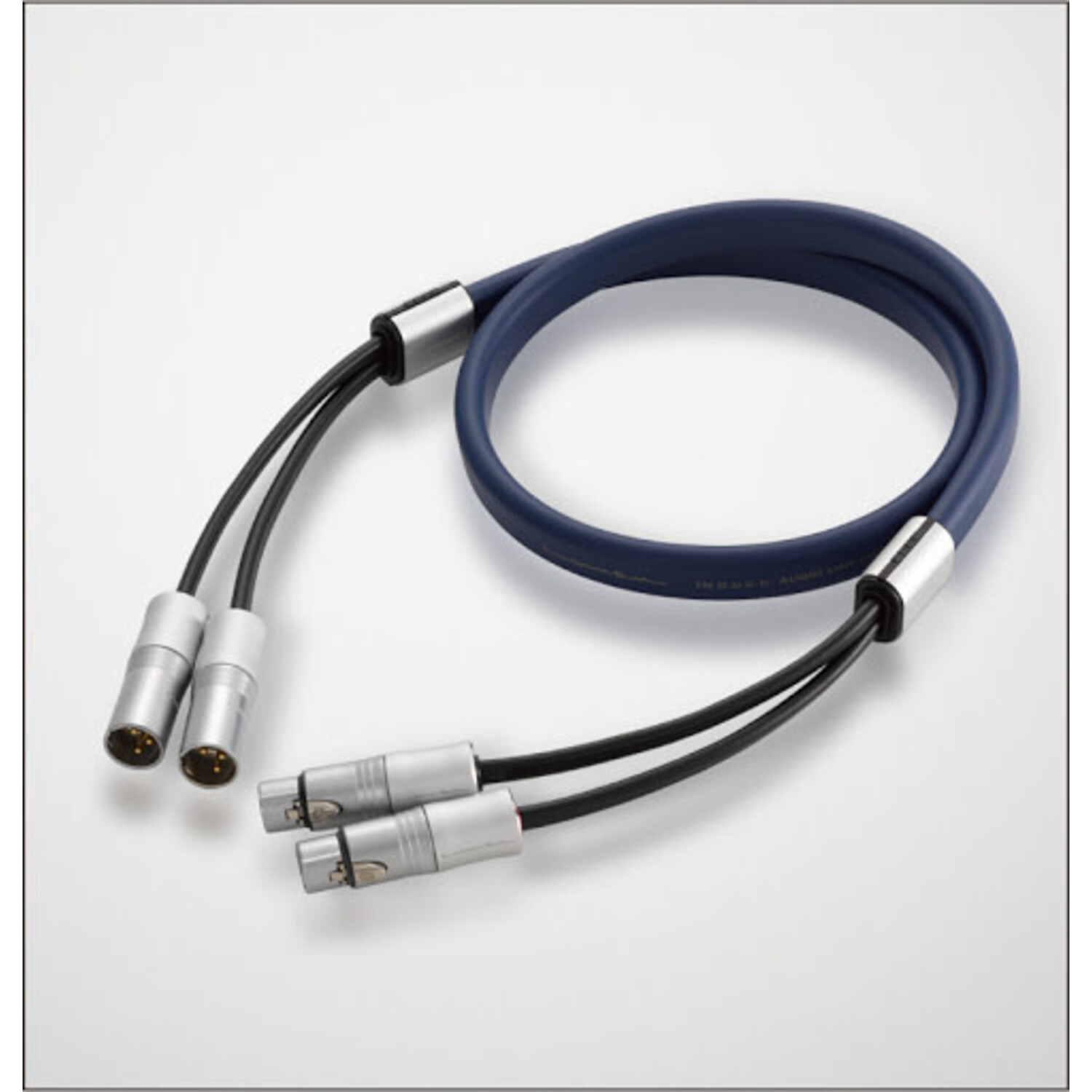

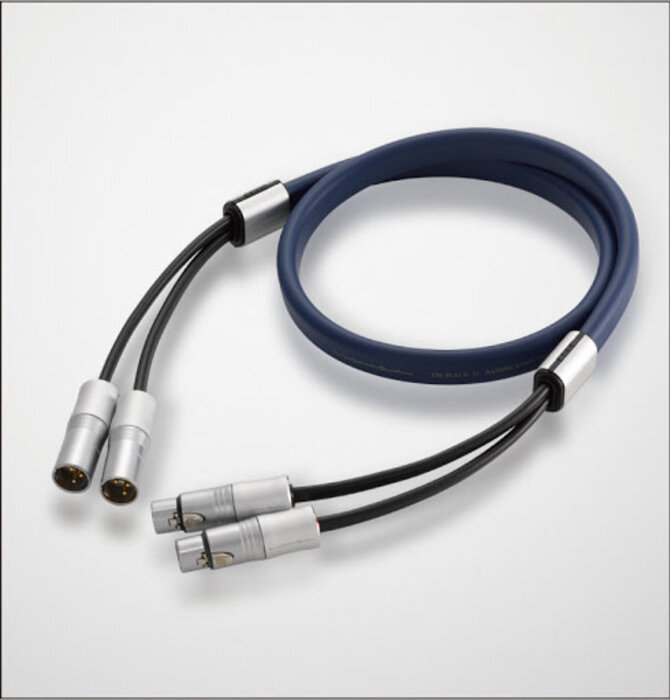

JPR-15000 & JPC-15000
| Structure | Individually shielded 2-core, non-twisted structure |
|---|---|
| Core wire | High-purity copper ( 7N CLASS D.U.C.C. ), Φ0.26 mm x 19 pcs |
| Insulator / Sheath | Polyethylene ( red, primary color ) / PVC ( blue ) |
| Shielded Wire | Oxygen-free copper ( OFC ) wire, Φ 0.18 mm x 38 pcs |
| Drain Wire | Oxygen-free copper ( OFC ) wire, Φ 0.08 mm x 30 pcs |
| Conductor Resistance | 18 m Ω / m or less ( at 20°C ) |
|---|---|
| Insulation Resistance | 5000 M Ω / more ( at 20°C ) |
| Capacitance | 70pF / m or less |
| Withstand Voltage | 1,000 Volt AC ( for 1 minute ) |
| Cable Outside Diameter | 10.5 mm x 20 mm |
|
* 7N - Class D.U.C.C.（ Dia Ultra Crystallized Copper ）: Using the world's highest purity of copper, while keeping the same crystal size of conventional high-purity conductors, D.U.C.C. allows for an even higher grade conductor with optimized alignment of the crystal structure resulting in significantly improved conductivity dedicated for high end audio cables. D.U.C.C. is a registered trademark of Mitsubishi Cable Industries, Ltd. |

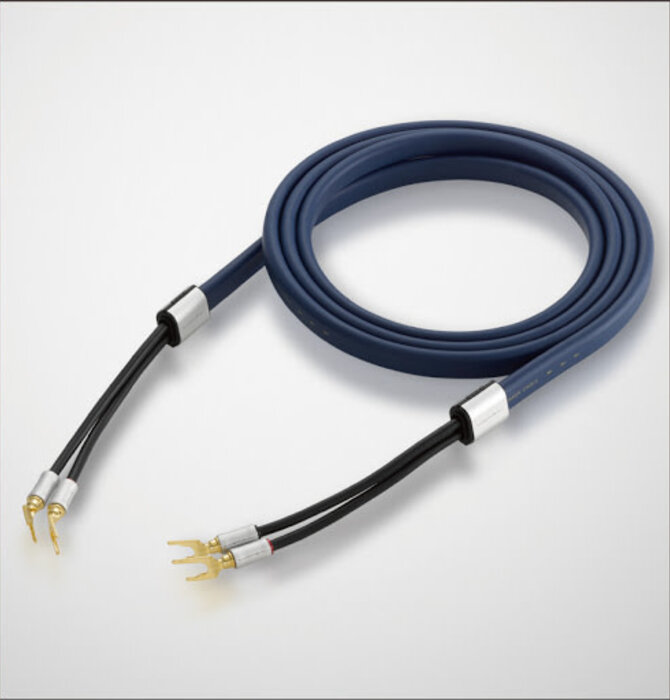

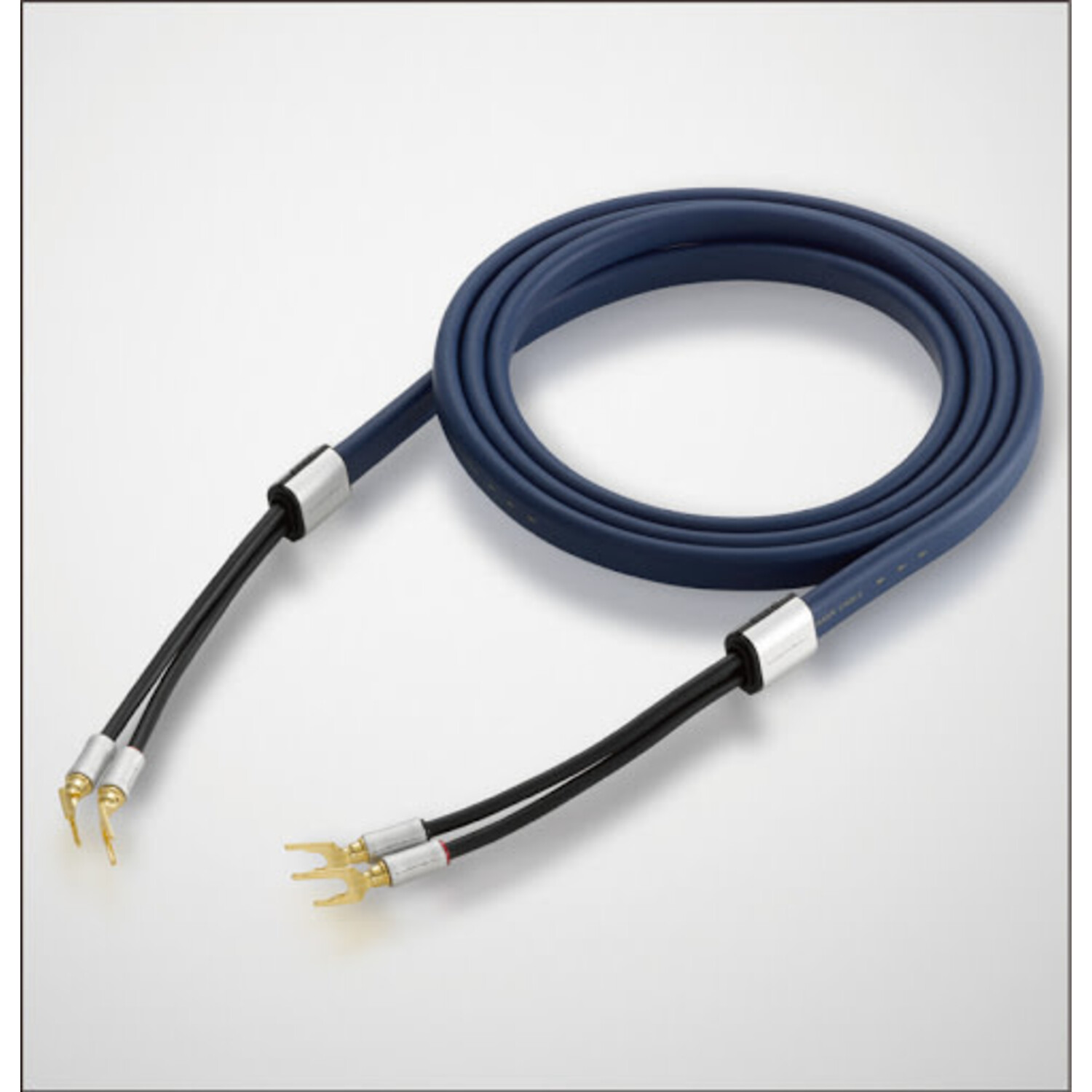

JPS-15000
| Structure | Non-twisted construction |
|---|---|
| Core Wire | High-purity copper ( 7N CLASS D.U.C.C. ) wire Φ0.26 mm x 60 pcs, Oxygen-free copper ( OFC ) wire, Φ 0.26 mm x 40 pcs |
| Insulator / Sheath | Polyethylene ( red, primary color ) / PVC ( blue ) |
| Drain Wire | Oxygen-free copper ( OFC ) wire, Φ 0.08 mm x 30 pcs |
| Conductor Resistance | 4m Ω / m or less ( at 20°C ) |
|---|---|
| Insulation Resistance | 5000M Ω / m or more ( at 20°C ) |
| Capacitance | 86pF / m or less |
| Withstand Voltage | 1,000 Volt AC ( for 1 minute ) |
| Cable outside diameter | 10.5 mm x 20 mm |
| * 7N - Class D.U.C.C.（ Dia Ultra Crystallized Copper ）: Using the world's highest purity of copper, while keeping the same crystal size of conventional high-purity conductors, D.U.C.C. allows for an even higher grade conductor with optimized alignment of the crystal structure resulting in significantly improved conductivity dedicated for high end audio cables. D.U.C.C. is a registered trademark of Mitsubishi Cable Industries, Ltd. |
