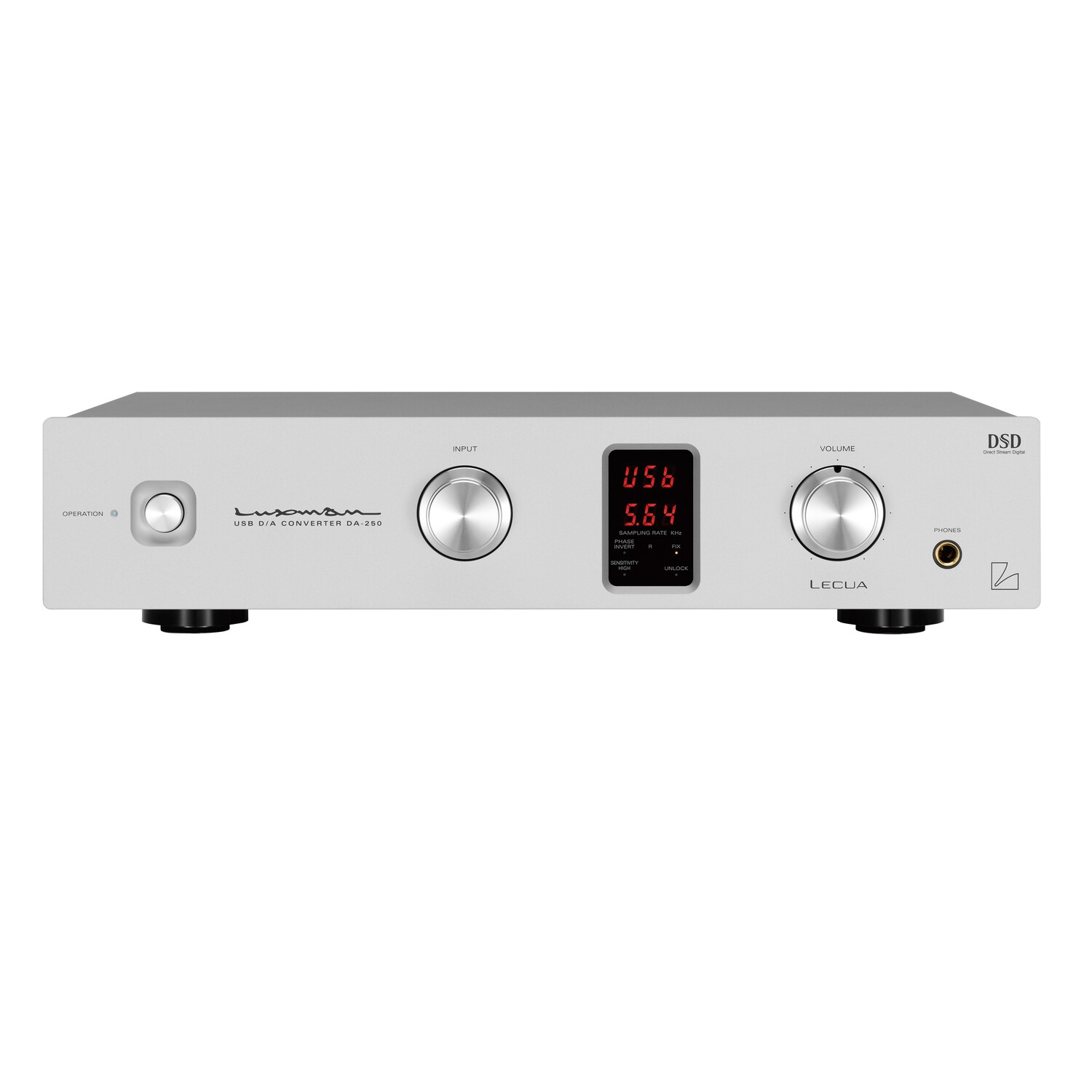

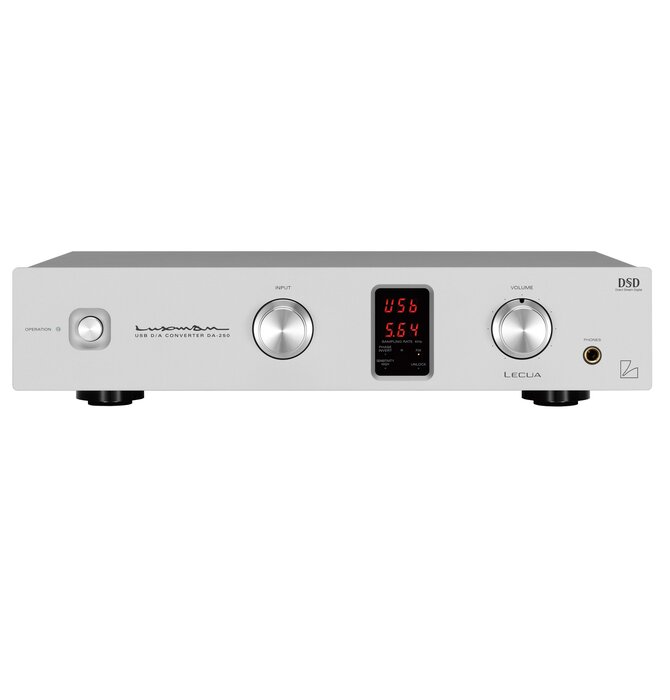

Luxman USB Digital / Analog Converter DA-250
Specifications:
| Format | 2-channel Digital to Analog converter |
|---|---|
| Supported Sampling Frequencies | USB input ( PCM ) : 32k, 44.1k, 48k, 88.2k 96k, 176.4k, 192k ( 16, 24, 32 bits ) USB input ( DSD ) : 2.82 M, 5.64 M Hz ( 1bit ) COAX/OPT input : 32k, 44.1k, 48k, 88.2k 96k, 176.4k, 192k Hz ( 16, 20, 24 bits ) MC HIGH: 0.37 mV, MC LOW: 0.12 mV |
| Digital Input | USB x 1, COAX x 1, OPT x 2 |
| Digital Output | COAX x 1, OPT x 1 |
| Analog Input | Unbalanced x 1 |
| Analog Output | Unbalanced x 1, Balanced x 1, Headphone x 1 |
| Line Output Voltage / Impedance | Unbalanced : 2.5 Volt / 300 Ω, Balanced : 2.5 Volt / 600 Ω |
| Headphone Output | 130 mW + 130 mW ( 600 Ω ) 400 mW + 400 mW ( 32 Ω ), 200 mW + 200 mW ( 16 Ω ) |
|---|---|
| Frequency Response | 2 Hz to 50k Hz ( +0, -3.0dB ) |
| Total Harmonic Distortion | 0.001 % |
| S/N Ratio ( IHF-A ) | 118 dB |
| Power Supply | 230 Volt ~ ( 50Hz ) / 115V ~ ( 60Hz ) |
| Power Consumption | 20 Watt |
| Dimensions | 364 ( W ) x 81 ( H ) x 279 ( D) mm front side knob of 14mm & rear side terminal of 8 mm included in depth |
| Net Weight | 5.4 kg |
| Accessories | Remote Control ( RD-24 ) & Power cable |
