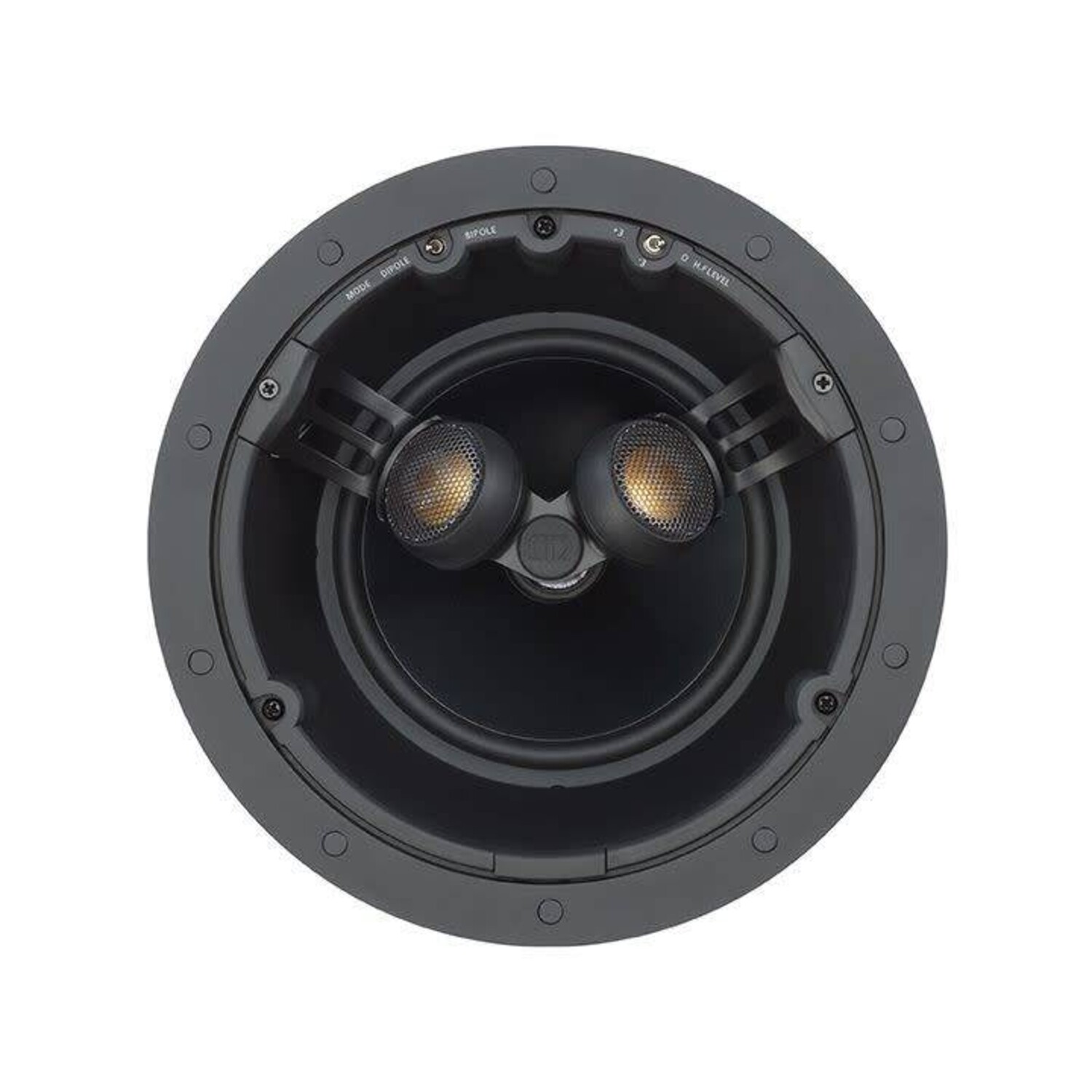

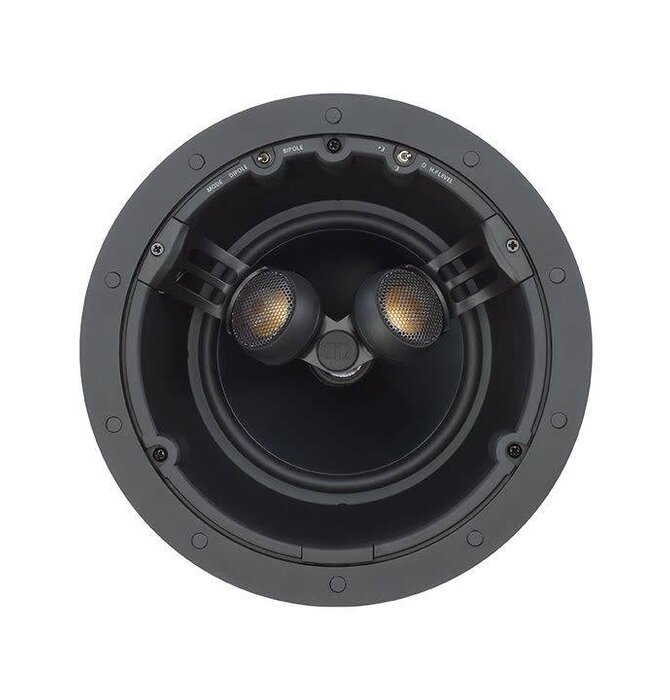

C 265 Technology

Dual tweeter configuration for use in di-pole or bi-pole mode.

C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.

High overall efficiency.

High frequency level adjustment ( +/- 3dB ).

Boundary compensation control.

Audio match with CP range 200 models and Silver Series hi-fi speakers.

Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximizing bass response and mid-range clarity.

Magnetic and easily removable steel grille.

All models are paint-able to blend with the living environment.

Additional scrim material is provided for trouble free painting.

All models are splash and humidity proof for installation in shower rooms or pool areas.

All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.

Specifications

Frequency Response: 60 Hz - 30k Hz

Impedance: ( Nominal ) 6 Ohms

Sensitivity ( 1 Watt @ 1 Meter ): 88.5 dB

Maximum SPL: 108 dBA

Power Handling ( RMS ): 85 Watt

Recommended Amp Requirements: 20 - 85 Watt

Drivers Unit Complement:  6.5” C-CAM® cone bass driver 2 x 1” C-CAM fixed angle gold dome tweeters

Adjustment Controls: HF Level Switch ( +3dB / 0dB / -3dB ) Bi pole / Di pole Switch

Overall Diameter: 9 ^13/16"

Overall Depth: 6"

Cut Out Diameter: 8 ^1/4"

Mounting Depth: 5 ^7/8"

Fixing Type: 3 position Tri-Grip® dog leg fixings

Construction Material: Mineral Filled ABS Plastic ( RoHS2 Compliant )

Optional Pre-Construction Bracket CB6: ( Purple )

Weight: 4 lbs 10 oz
