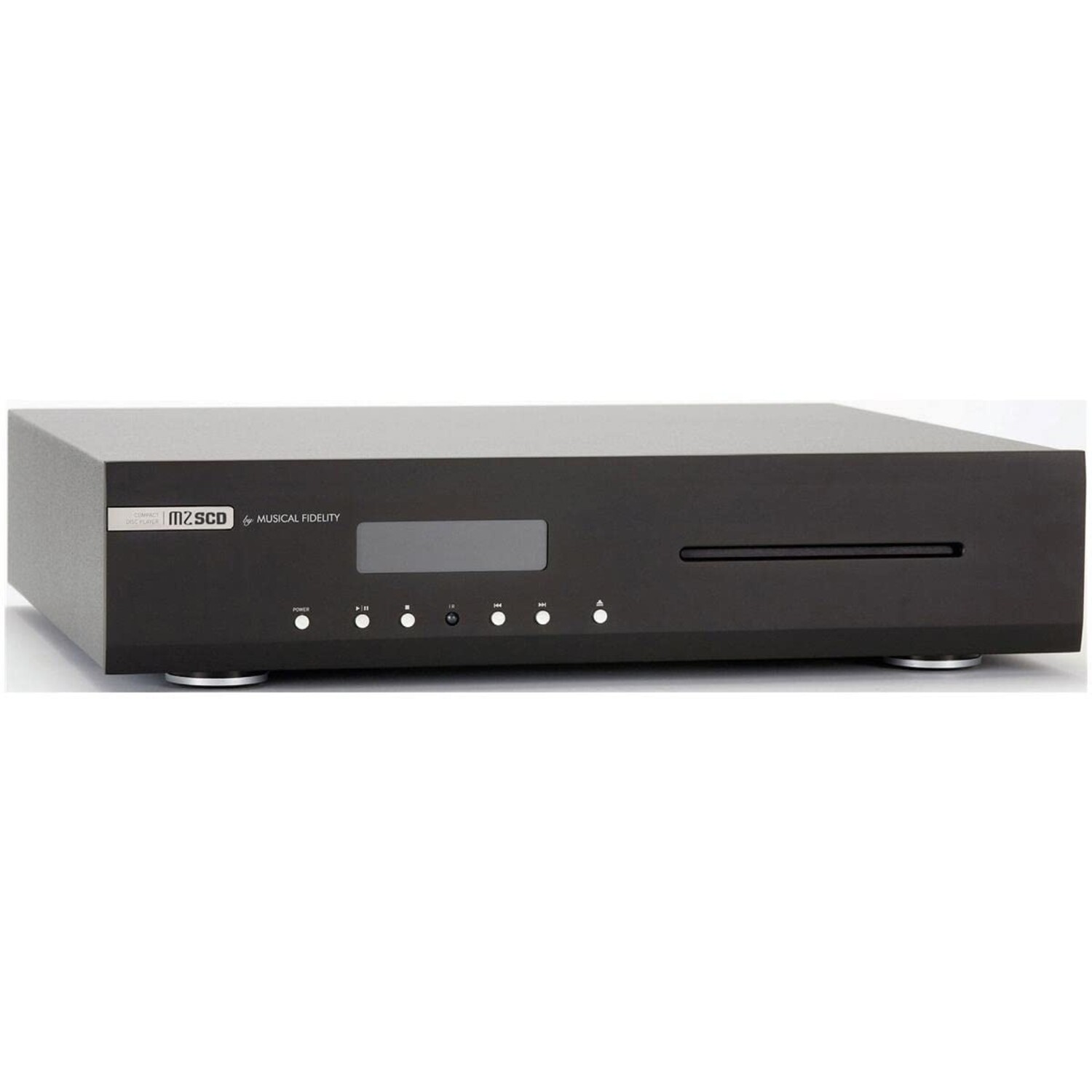

The M2SCD builds on our years of engineering expertise, uniquely featuring both a mains choke filter and a high-tech digital stream noise filter. Such innovations enable the player to deliver technical performance; it boasts low distortion and a virtually flat frequency response, plus minimal noise and jitter.
The M2sSCD's DAC design also draws from its high-end siblings, using cutting-edge technology to ensure excellent data recovery from your discs. Simply put, that means you'll hear more from your music. Reviews say "a very mature and polished performer", which "sounds refined and elegant".
Musical Fidelity M2SCD CD Player User's Manual
Output
Output Impedance: 50 ohms
Output, Digital 0 dB Level: RCA output - 2.2V r.m.s. nominal
DAC
DAC Circuit: 24 bit Delta-Sigma ( bit stream ) dual differential 8x over-sampling
Total Correlated Jitter: <135 picoseconds peak to peak
Linearity: <0.1dB down to -96dB
Frequency Response: 10Hz to 20 kHz -0.2dB max.
Channel Separation: >105dB 20 Hz to 20 kHz
Signal-to-Noise Ratio: >117dB “a”- wtd.
Total Harmonic Distortion: <0.003% 10Hz to 20 kHz

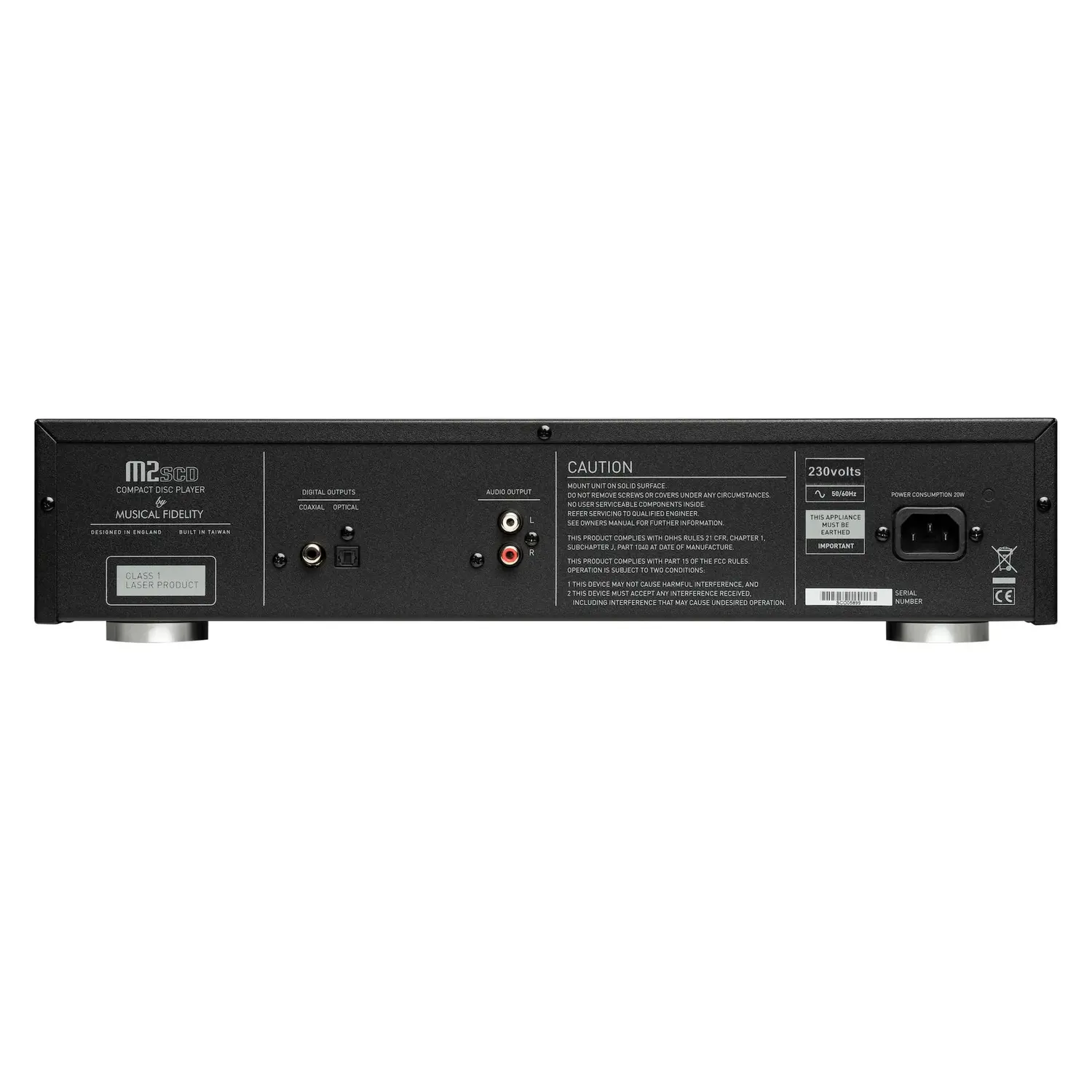

Connections
Line Level Outputs: 1 pair line level RCA connectors, left and right outputs
Digital Outputs: 1 RCA coaxial connector SPDIF, 1 TOSLINK optical connector
Power Requirement
Mains Voltage: 115/230VAC 50/60Hz
100VAC 50/60Hz ( Alternative )
Consumption: 20 Watts maximum
Weight: Unit only 14 ⅔ lbs
Dimensions: ( Wide ) 440 mm , ( High ) including feet 4” , ( Deep ) front to back with terminals 14 ¾”
Shipping Weight & Dimensions: 23 lbs, 20" x 21.5" x 10"
