Does not come in its original box

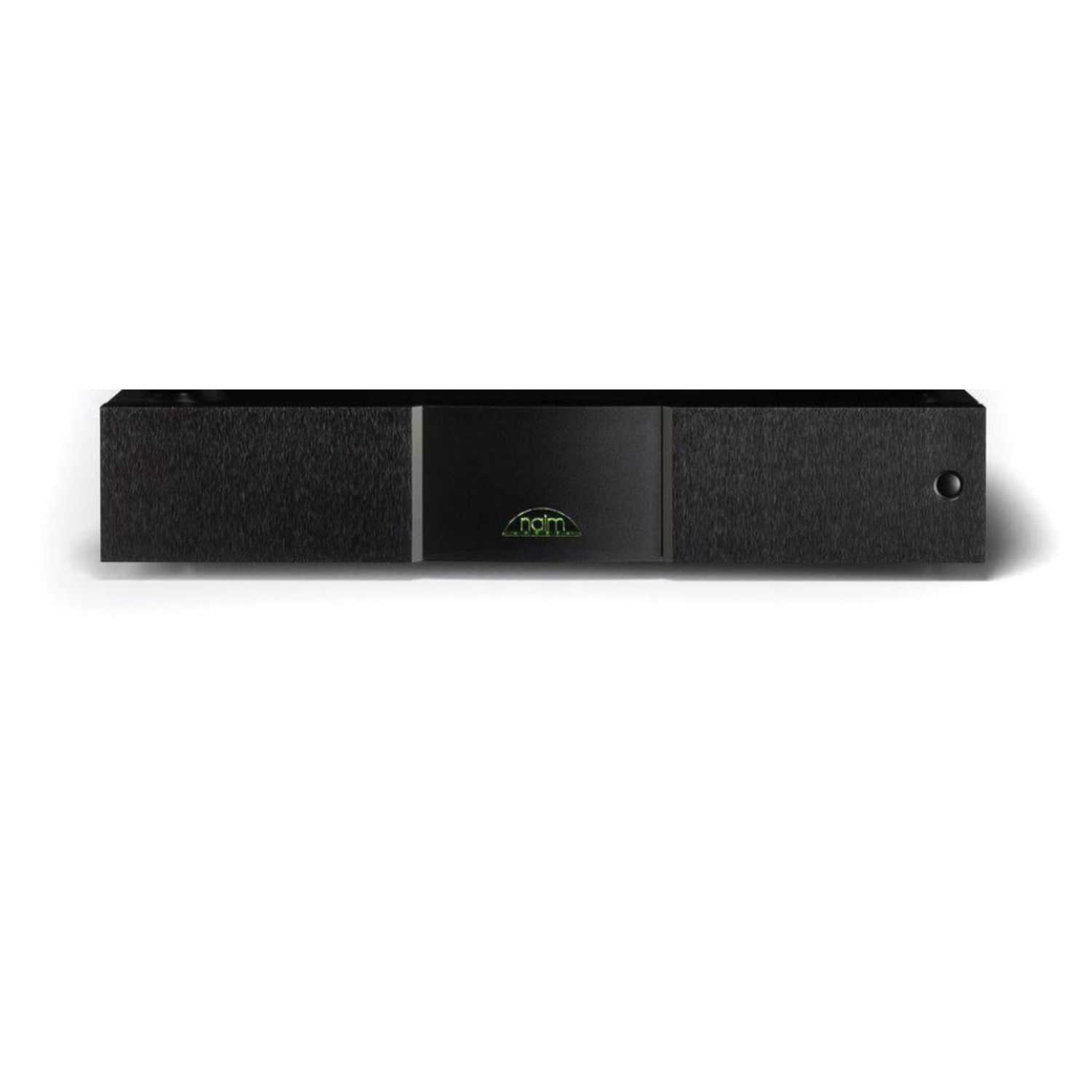

The Naim Audio NAP 300 delivers immense power without sacrificing any speed or agility to provide awe-inspiring levels of detail and musicality.

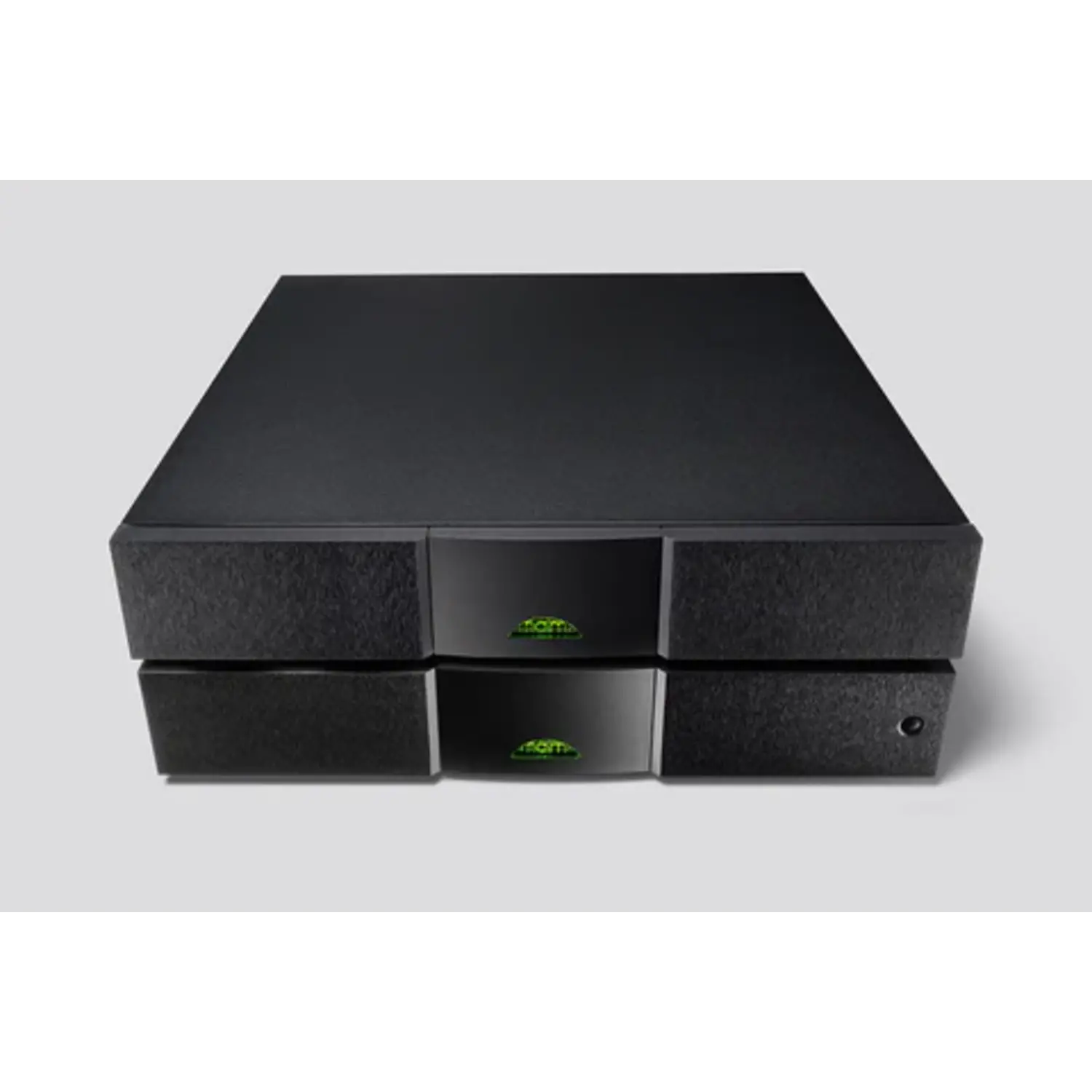

Like the flagship Naim Audio NAP 500, the NAP 300 is a stereo two-chassis amplifier, one box containing the audio amplifier and the second housing the power supply. Improved earthing arrangements have resulted in an entirely new circuit topology built on a very high quality, anti-resonance main audio circuit board. The NAP 300 uses the same NA009 transistors that were custom-designed for the Statement NAP S1. These outstanding components each provide up to 80 Amps and 350 watts, negating the need to use parallel pairs of transistors (which always has a negative effect on sound). Additional NA009 transistors are used in the fully regulated power supply, ensuring the very best performance.

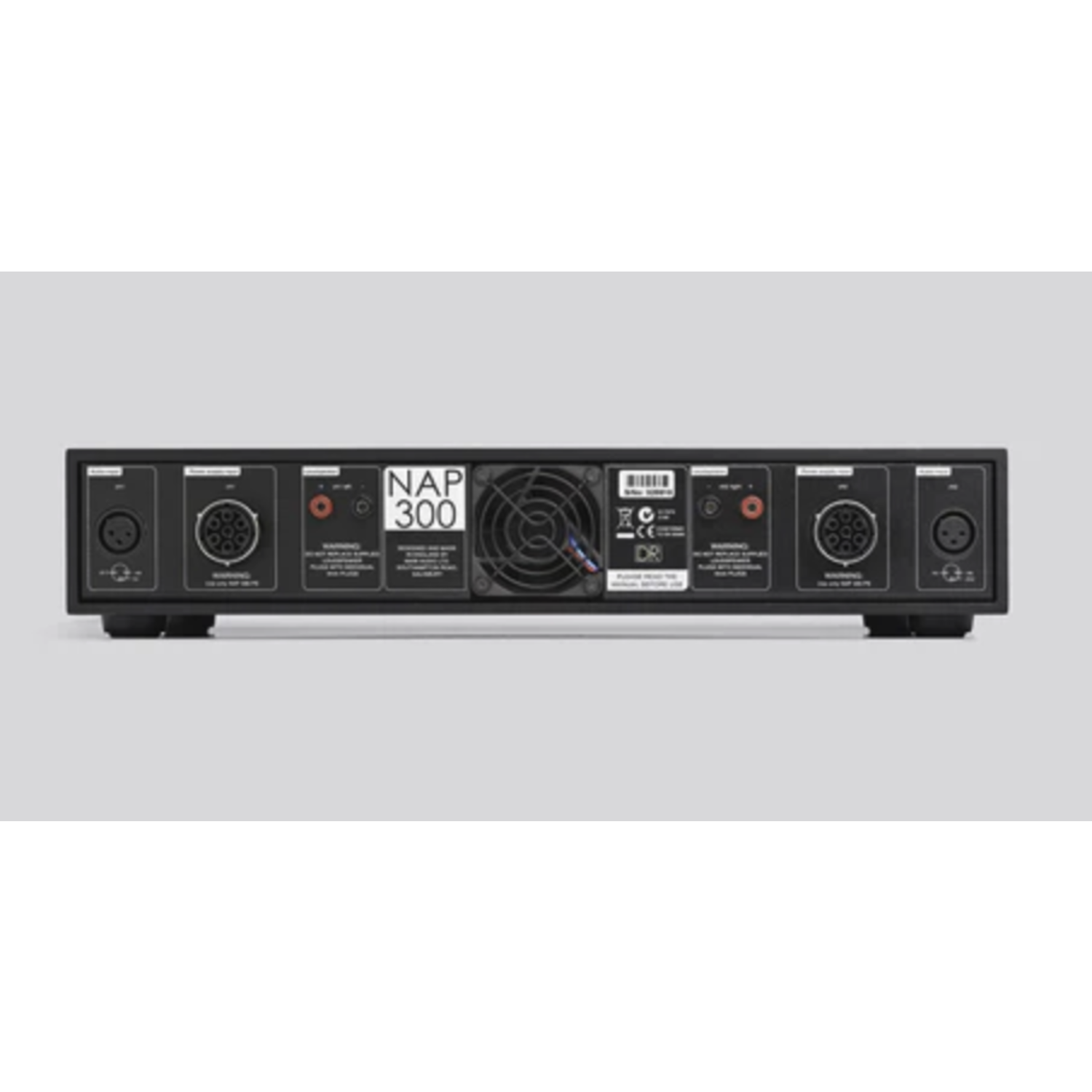

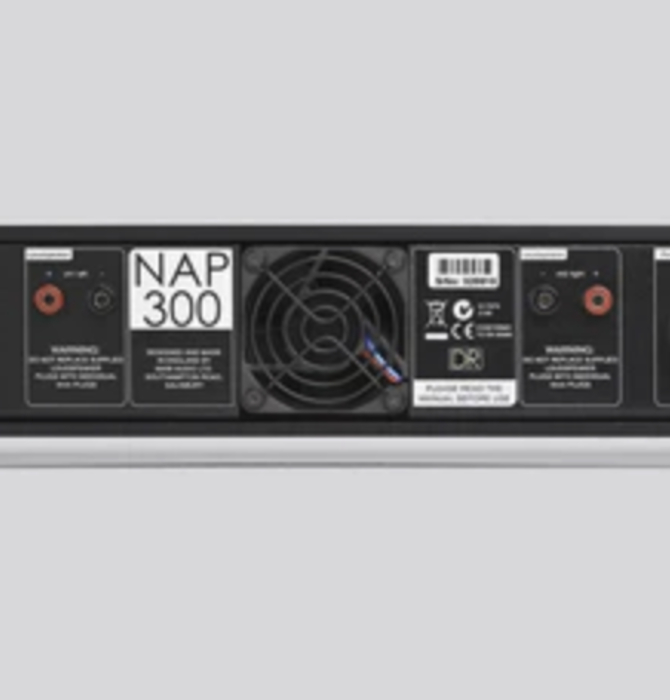

A variable speed, virtually noiseless cooling fan is mounted on a large internal heat sink providing long-term stability and the ability to swing a massive 500 VA on transients. The NAP 300 is stable into any load and able to drive a 2-Ohm load for long periods of time.
Audio Inputs |
|
Input Impedance | 18kΩ |
Analogue Input | 2 x XLR |
Audio Outputs |
|
Minimum Load Impedance | 2Ω |
Frequency Response | -3dB at 2Hz and 70kHz |
Gain | +29dB |
|
|
Case | Black powder coated |

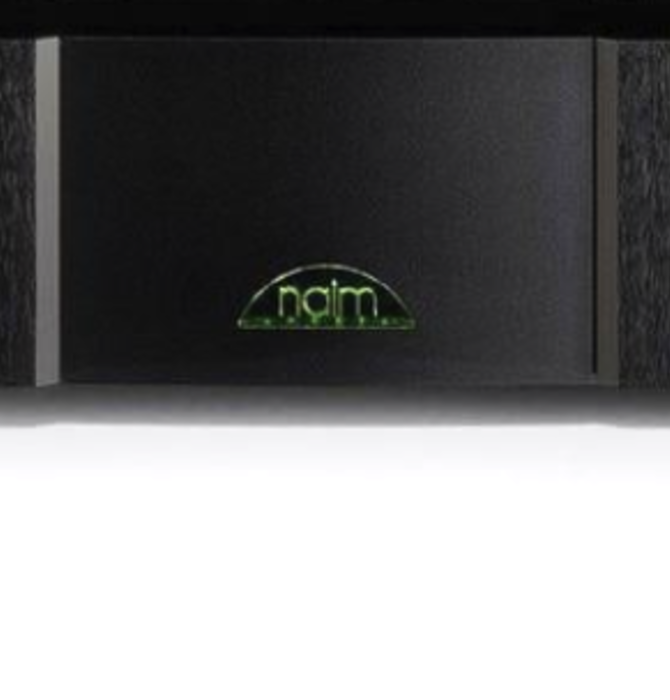

Front | Brushed and black anodised |
Physical |
|
Dimensions | 87 x 432 x 314 mm (excl. 300PS) |
Shipping Dimensions | 240 x 590 x 500 mm (excl. 300PS) |
Shipping Weight | 12.6 kg (excl. 300PS) |
Power |
|
Mains Supply | 100V, 115V, 230V; 50 or 60Hz |

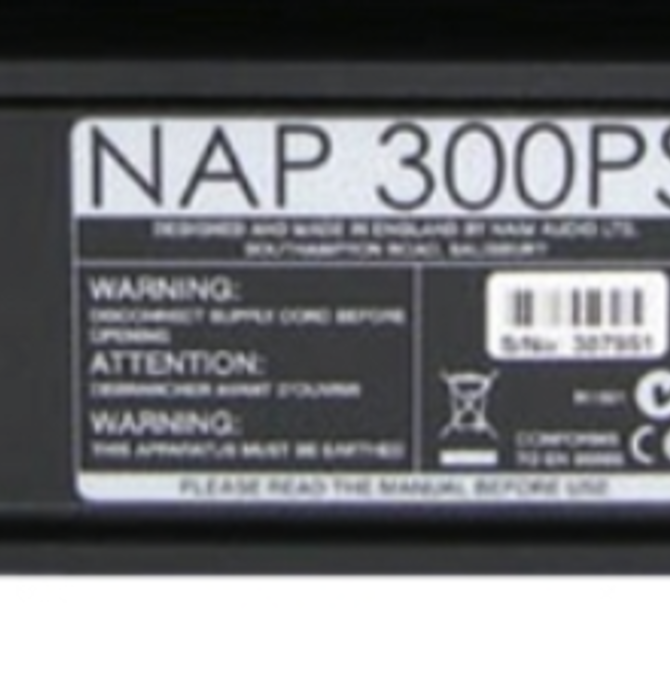

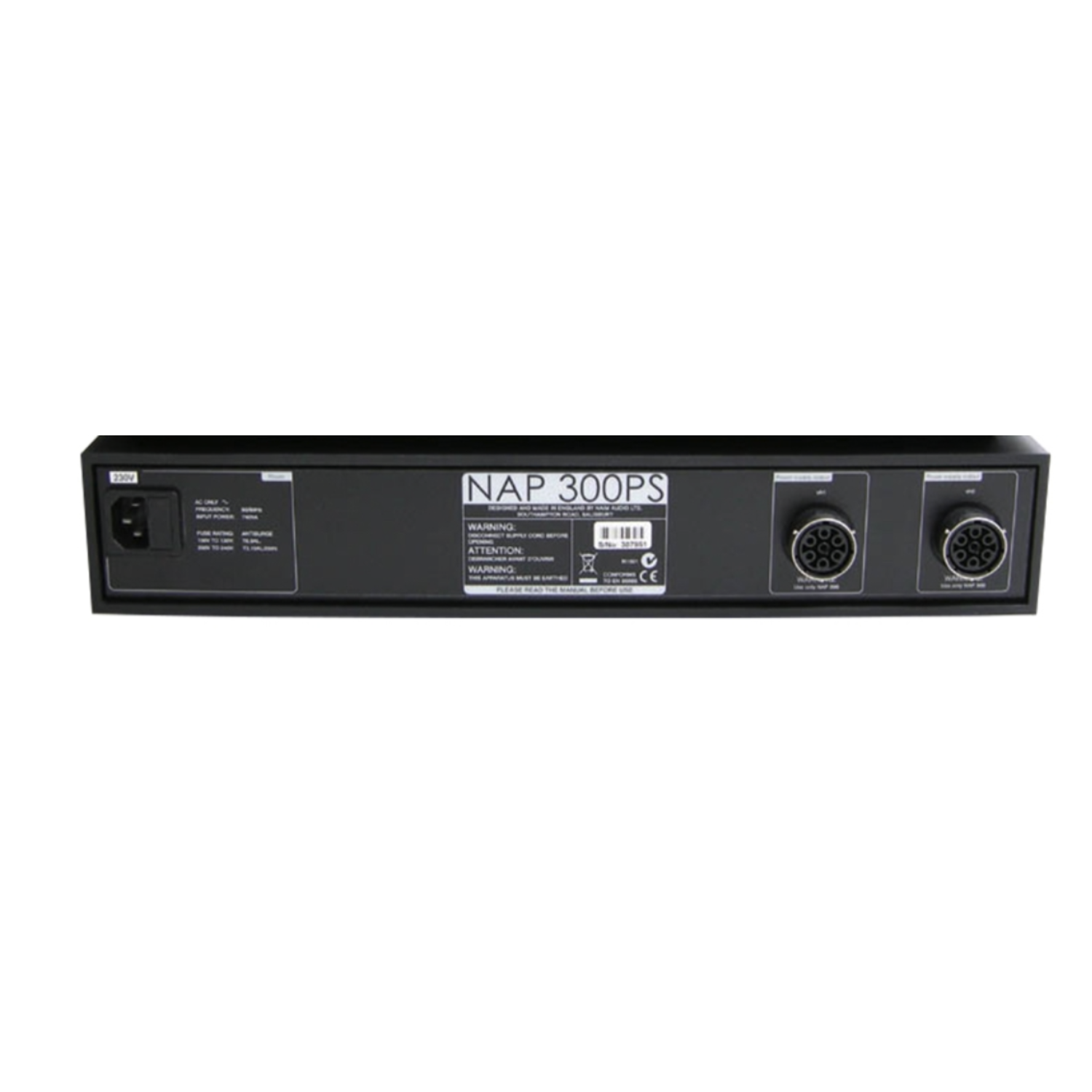

Power Supply Options | 300PS |
Speaker Outputs |
|
Power Output | 90W/channel, 8Ω |
Transient | 500VA |

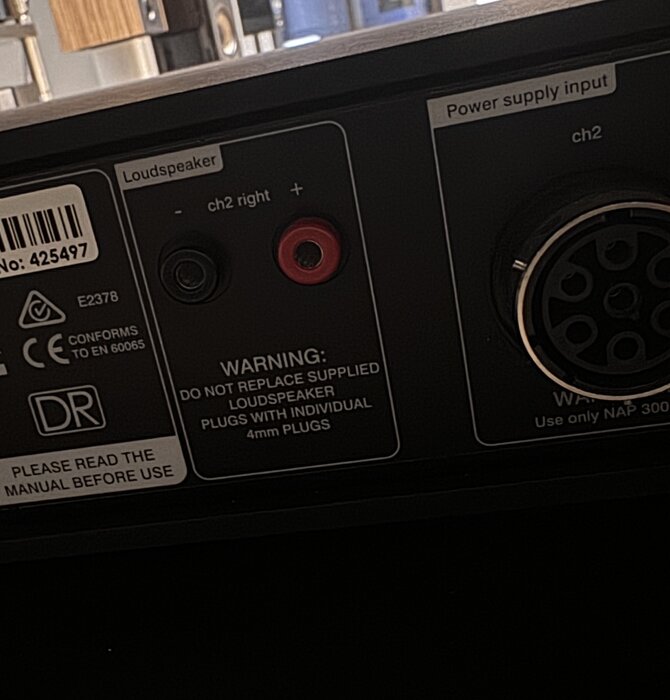

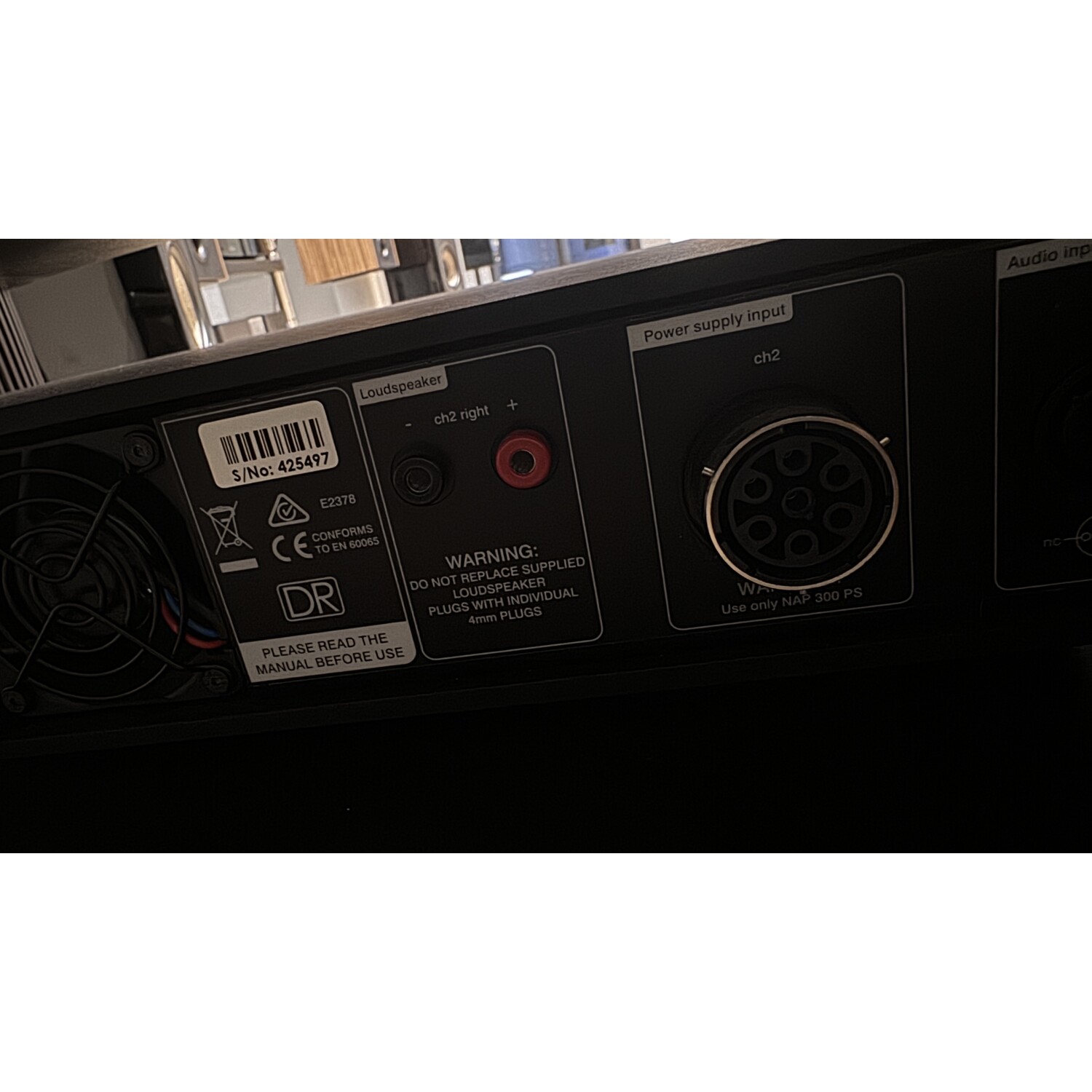

Speaker Outputs | L & R, 4mm “banana” sockets |
Supplied with |
|
Supplied with | 300PS, Burndy |
