New Triad Subwoofer Rackmount Amplifier
| TS-SUBAMP 700 W | TS-SUBAMP 1200 W | TS-SUBAMP 2400W |
|---|---|---|
|
Channels: 1-Channel
|
1-Channel
|
2-Channel
|
|
Watts Per Channel: 501-1000W
|
1001-1500W
|
2400W
|
|
Dimensions (W x H x D): 14-5/16" x 19" x 2-1/8" / 330 x 470 x 54 mm (w/ rack ears)
14-5/16" x 17-1/2" x 1-3/4" / 330 x 440 x 45 mm w/o rack ears |
14-5/16" x 19" x 2-1/8" / 330 x 470 x 54 mm (w/ rack ears)
14-5/16" x 17-1/2" x 1-3/4" / 330 x 440 x 45 mm w/o rack ears |
14-5/16" x 19" x 2-1/8" / 330 x 470 x 54 mm (w/ rack ears)
14-5/16" x 17-1/2" x 1-3/4" / 330 x 440 x 45 mm w/o rack ears |
|
Weight: 12.35lbs / 5.6 Kgs
|
12.6lbs / 5.7 Kg
|
14.6lbs / 6.6 Kg
|
|
Inputs: Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) 10/100 Mbps RJ45 DC 12V Trigger |
Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) 10/100 Mbps RJ45 DC 12V Trigger |
Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) 10/100 Mbps RJ45 DC 12V Trigger |
|
Outputs: Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) DC 12V Trigger |
Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) DC 12V Trigger |
Unbalanced RCA x 2 ( Left/LFE and Right)
Balanced XLR x 2 (Left/LFE and Right) DC 12V Trigger |
|
Front Power LED: Status LED (multicolor RGB)
Power LED (blue) |
Status LED (multicolor RGB)
Power LED (blue) |
Status LED (multicolor RGB)
Power LED (blue) |
|
Power Connection Type: C14
|
C14
|
C20
|
|
3.5mm Mono Jack In/Out
|
3.5mm Mono Jack In/Out
|
3.5mm Mono Jack In/Out
|
|
12V Trigger: 700W @ 3Ohms
524W @ 4Ohms |
1200W @ 3Ohms
900W @ 4Ohms |
1200W x 2 @ 3Ohms (20A Mode)
700W x 2 @ 3Ohms (15A Mode) 900W x 2 @ 4Ohms (20A Mode) 524W x 2 @ 4Ohms (15A Mode) |
|
Power RMS: 3Ohms Minimum
|
3Ohms Minimum
|
3Ohms Minimum
|
|
Impedance: 45.8Vrms
|
60Vrms
|
60Vrms x 2 (20A Mode)
45.8Vrms x 2 (15A Mode) |
|
Power Output per Channel (Peak): 10Hz-20Hz (+/-1.5dB)
20Hz-400Hz (+/-1dB) |
10Hz~20Hz (+/-1.5dB)
20Hz~400Hz (+/-1dB) |
10Hz-20Hz (+/-1.5dB)
20Hz-400Hz (+/-1dB) |
|
Frequency Response: > 97dB @ 100Hz (A-Weighted)
|
> 101dB @ 100Hz (A-Weighted)
|
> 101dB @ 100Hz (A-Weighted)
|
|
SNR: 20 - 400 Hz <0.05% @ 1/3 Power
Total Harmonic Distortion (THD):
10 - 20 Hz < 0.5% @ 1/3 Power 10 - 400 Hz < 1% @ Max Power |
20 - 400 Hz <0.05% @ 1/3 Power
10 - 20 Hz < 0.5% @ 1/3 Power 10 - 400 Hz < 1% @ Max Power |
20 - 400 Hz <0.05% @ 1/3 Power
10 - 20 Hz < 0.5% @ 1/3 Power 10 - 400 Hz < 1% @ Max Power |
|
IMD - SMPTE: <-65dB @ 10W
|
<-50dB @ 10W
|
<-50dB @ 10W
|
|
DNR: > 97dB @ 100Hz (AES17)
|
> 101dB @ 100Hz (AES17)
|
> 101dB @ 100Hz (AES17)
|
|
Sensitivity Input: Unbalanced RCA -10dBV (LOW), -4dBV (HIGH)
Balanced 0dBV (LOW), +6dBV (HIGH) |
Unbalanced RCA -10dBV (LOW), -4dBV (HIGH)
Balanced 0dBV (LOW), +6dBV (HIGH) |
Unbalanced RCA -10dBV (LOW), -4dBV (HIGH)
Balanced 0dBV (LOW), +6dBV (HIGH) |
|
Operating Temperature: 32 - 102F, 0-40C
|
32 - 102F, 0-40C
|
32 - 102F, 0-40C
|
|
Cooling requirements: Forced Air (Fan)
|
Forced Air (Fan)
|
Forced Air (Fan)
|
|
Storage Temperature: -4 -158F, -20C - 70C
|
-4 -158F, -20C - 70C
|
-4 -158F, -20C - 70C
|
|
Fuse Type: 6.3A (250V)
|
10A (250V)
|
|
|
Power Consumption: 900W - Rated
2W - Standby 20W - Idle |
1500W - Rated
2W - Standby 20W - Idle |
3000W - Rated
2W - Standby 38W - Idle |
|
Humidity: 5% - 95% Non-Condensing
|
5% - 95% Non-Condensing
|
5% - 95% Non-Condensing
|

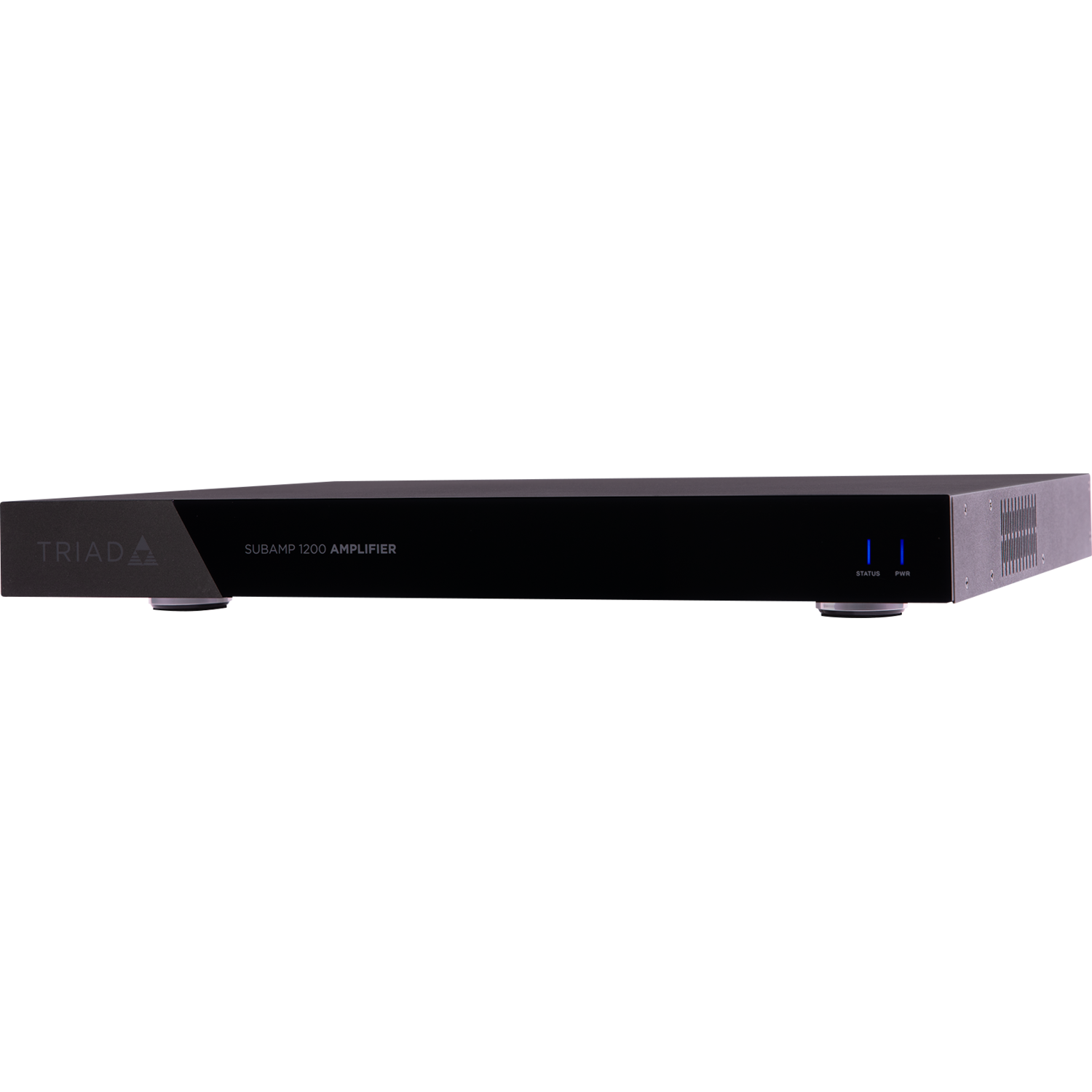

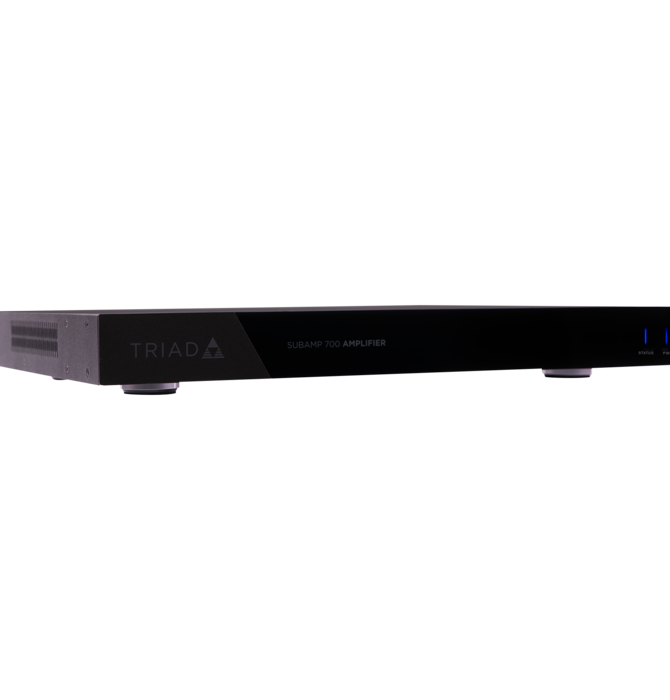

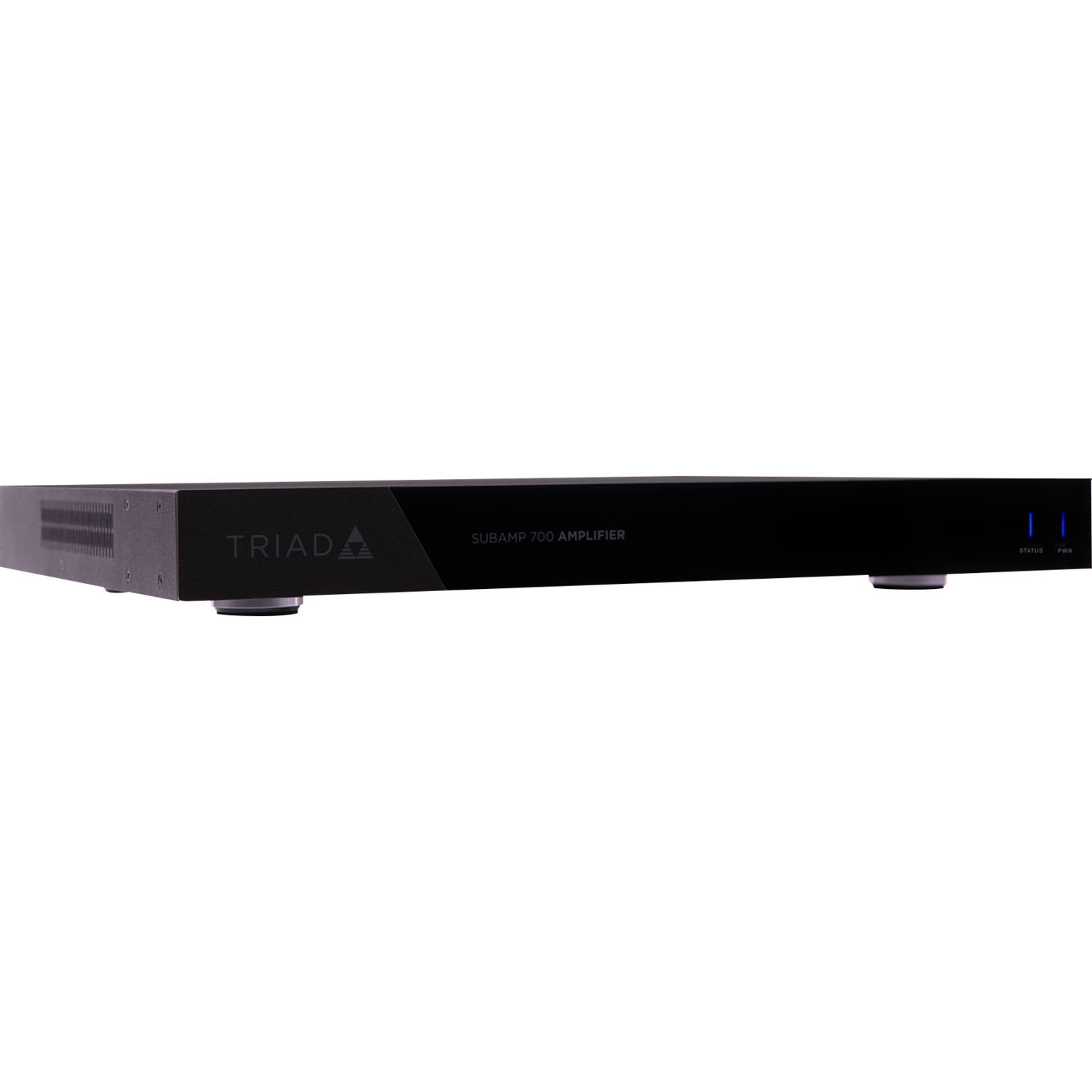

Triad® Rackmount Subwoofer Amplifiers
Triad's digital subwoofer amplifiers are designed for powerful and versatile performance, delivering between 700W and 2400W of clean, consistent power. These amplifiers are the ideal choice for Triad and compatible third-party subwoofers, with the ability to sustain full power output for over a minute. Featuring advanced DSP for robust sound customization, these amplifiers are available in single-channel mono (subwoofer RackAmp 700 and 1200) and 2-channel (subwoofer RackAmp 2400), making them versatile solutions for a range of audio setups. The sleek 1U chassis design ensures effortless integration into any rack system.
Delivers Full Power for More Than a Minute
Use the Triad Sub Tune-It app on an Android or iOS device (Coming Soon) to configure the subwoofer from the palm of your hand. You can configure it when the amplifier is on the network using the Web UI or, if it's not connected to the internet, a direct from PC to amp connection.
Powerful DSP Controls
Built-in cutting-edge DSP control allows you to fine-tune and perfect the sound in any room. Triad Subwoofer RackAmps have all the necessary tools to deliver an incredible audio experience with Parametric EQ controls, X-Over, Phase and Delay controls, Power settings, and Speaker EQ presets for Triad Subwoofers.

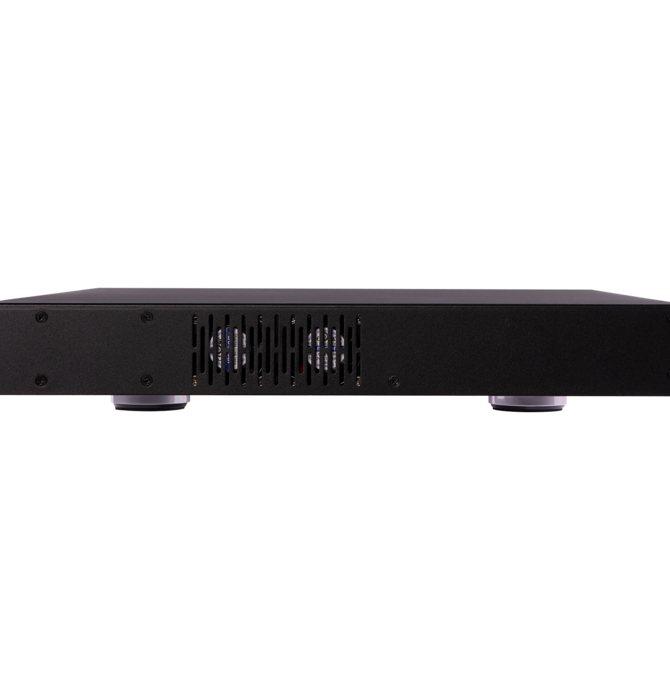

Fan Cooled 1U Design
When rack space is essential, the rack amps' 1U design ensures maximum performance in minimal space. The side-mounted fans ensure the exchange of cool air from outside the amp and into the amp chassis, reducing operating temperature and increasing long-term reliability. Rack Ears are included.
Flexible Setup Options
Use the Triad Sub Tune-It app (Coming Soon) to configure the subwoofer from the palm of your hand. You can configure it when the amplifier is on the network using the Web UI or, if it’s not connected to the internet, a direct from PC to amp connection. iOS app available for download.
Designed for Integration
The amplifier is OvrC® enabled for remote access and firmware updates, has SDDP, and includes a Control4 driver for easy integration and custom programming within a Control4 System.
