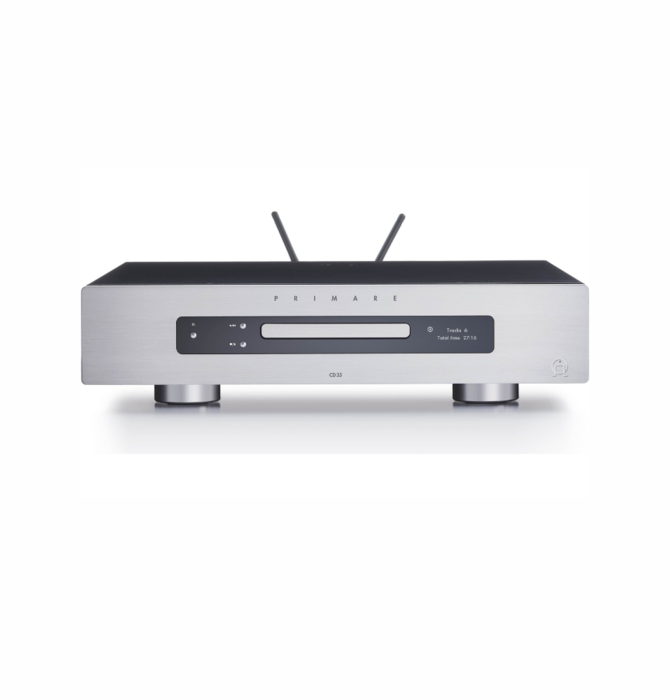

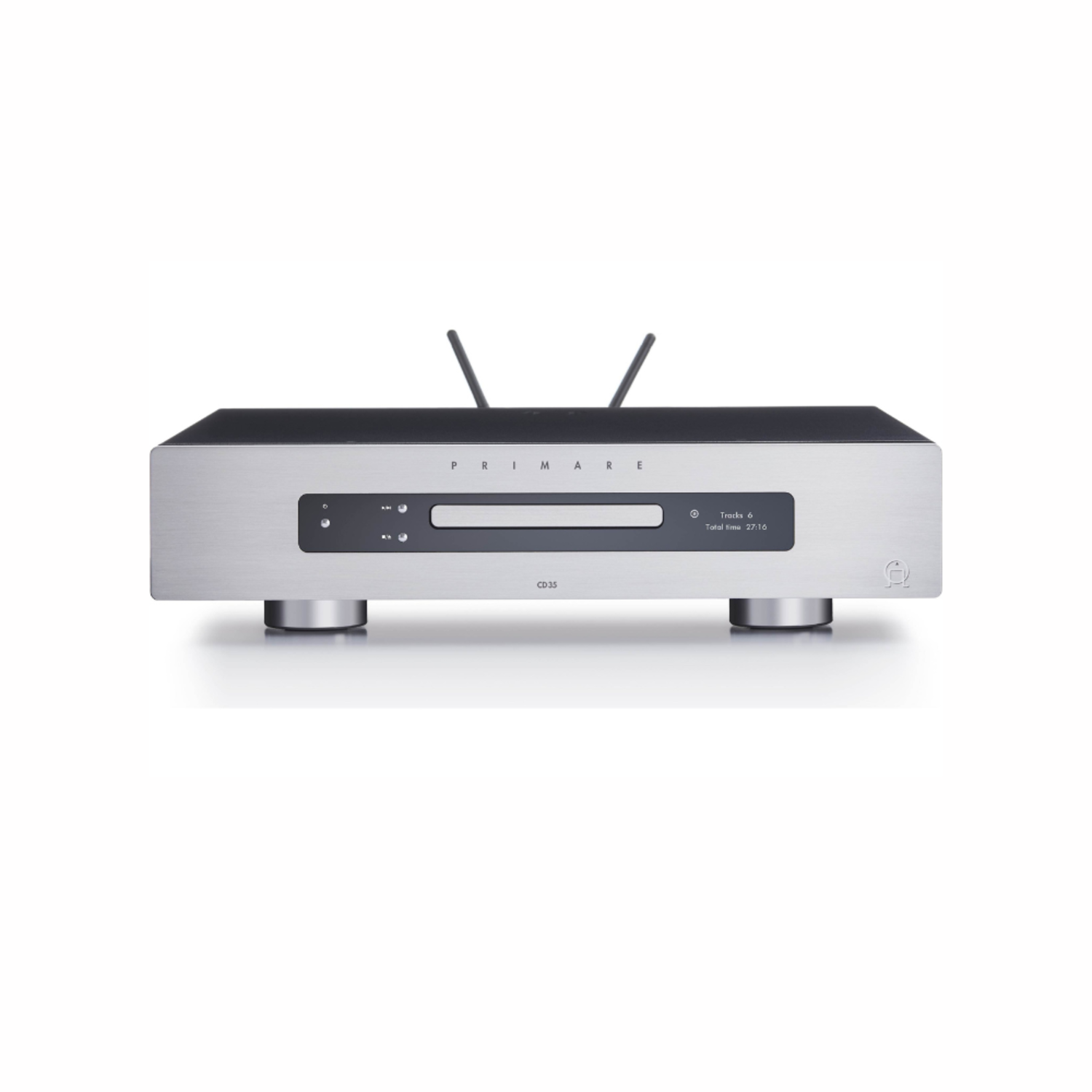

Primare CD35 Prisma owner's manual
If you need assistance accessing this owner's manual, please give us a call.- CD/Network player
- 6' AC power cord

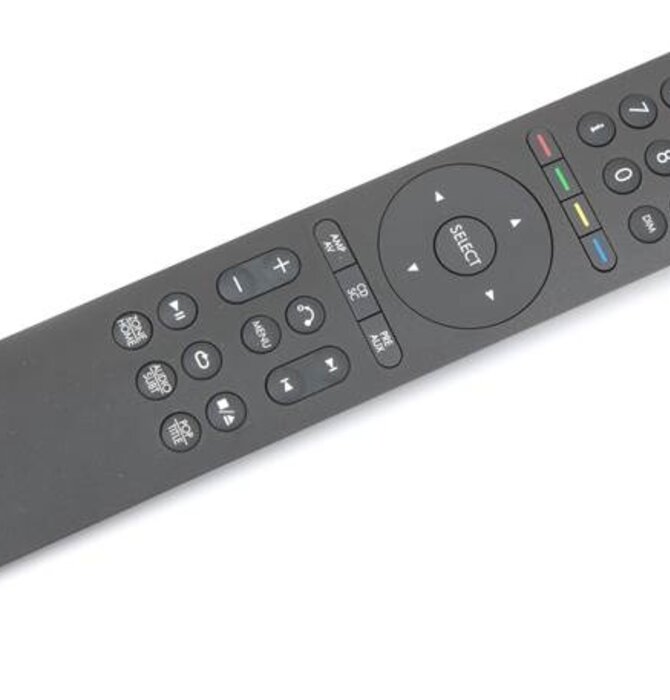

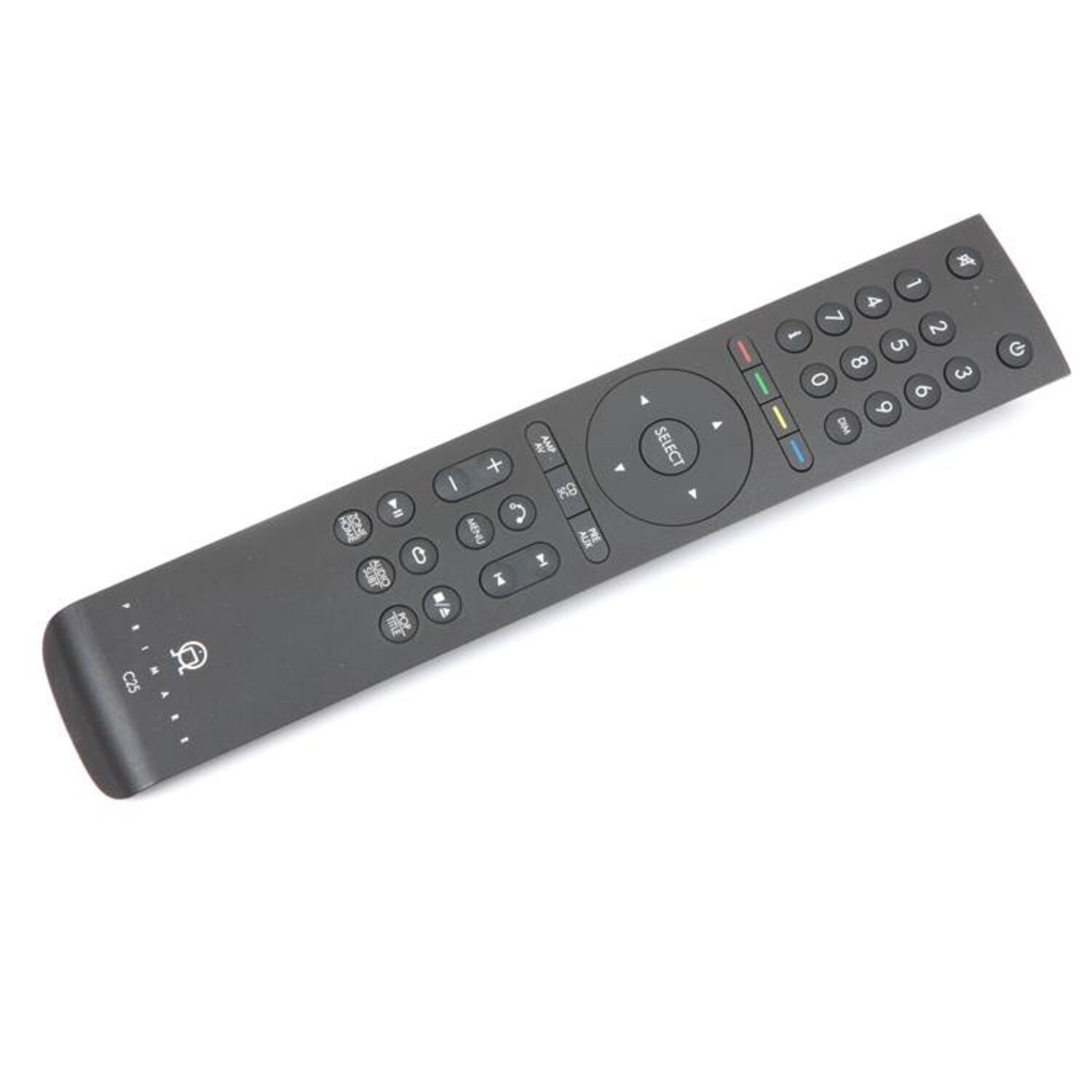

- Remote control (C25)
- 2 "AAA" batteries
- 2 Bluetooth/WiFi antennas
- Two 59" Mono-minijack cables
- AC polarity pen
- Thank You Letter
- Safety And Warning Notification
- Plays audio CDs, CD-Rs and CD-RWs
- premium high-performance 32-bit ESS Technology ES9028Pro SABRE DAC
- 8-channel DAC configured to run in double-differential mode for stereo
- Prisma network player controls stored and streamed media, whether wired or wireless
- compatible file types: WAV, LPCM, AIFF, FLAC, ALAC, MP3, MP4 (AAC), WMA, OGG, and DSD
- TEAC precision disc drive resists vibration and noise

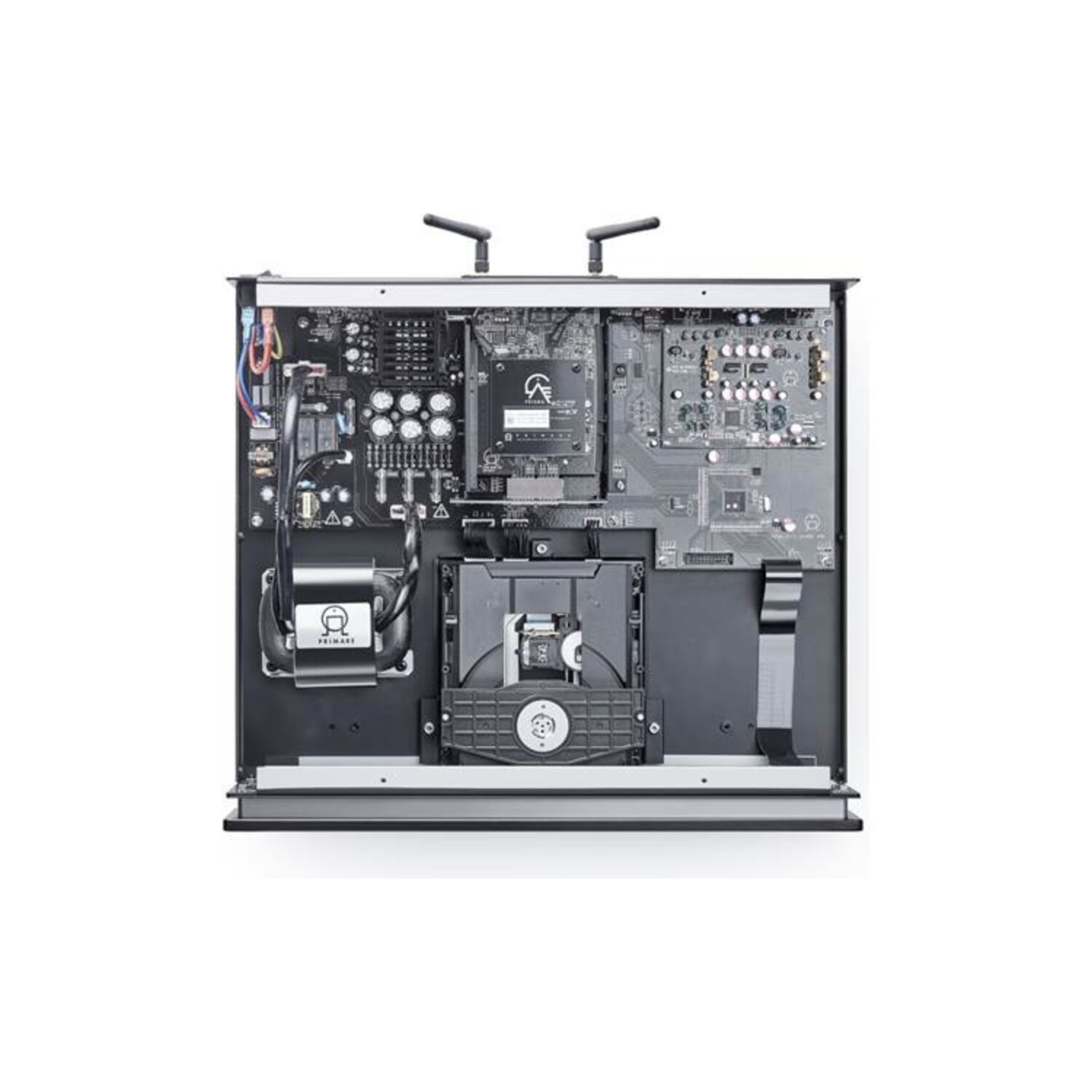

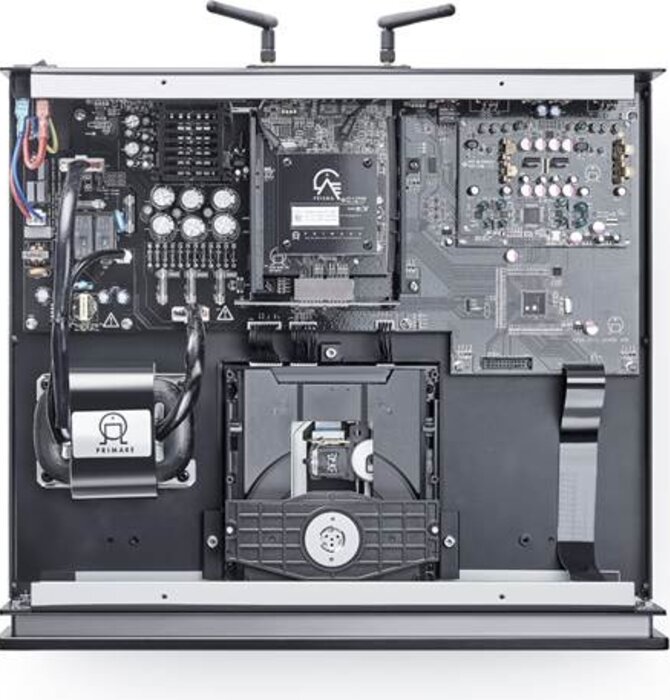

- custom linear power supply combined with a switching mode standby supply (turned off when in playback - mode to minimize noise)
- discrete analog output stage with a hand selected FET input section
- ultra-short signal paths with fewer, higher quality parts result in reduced distortion
- signal-to-noise ratio: 110 dB

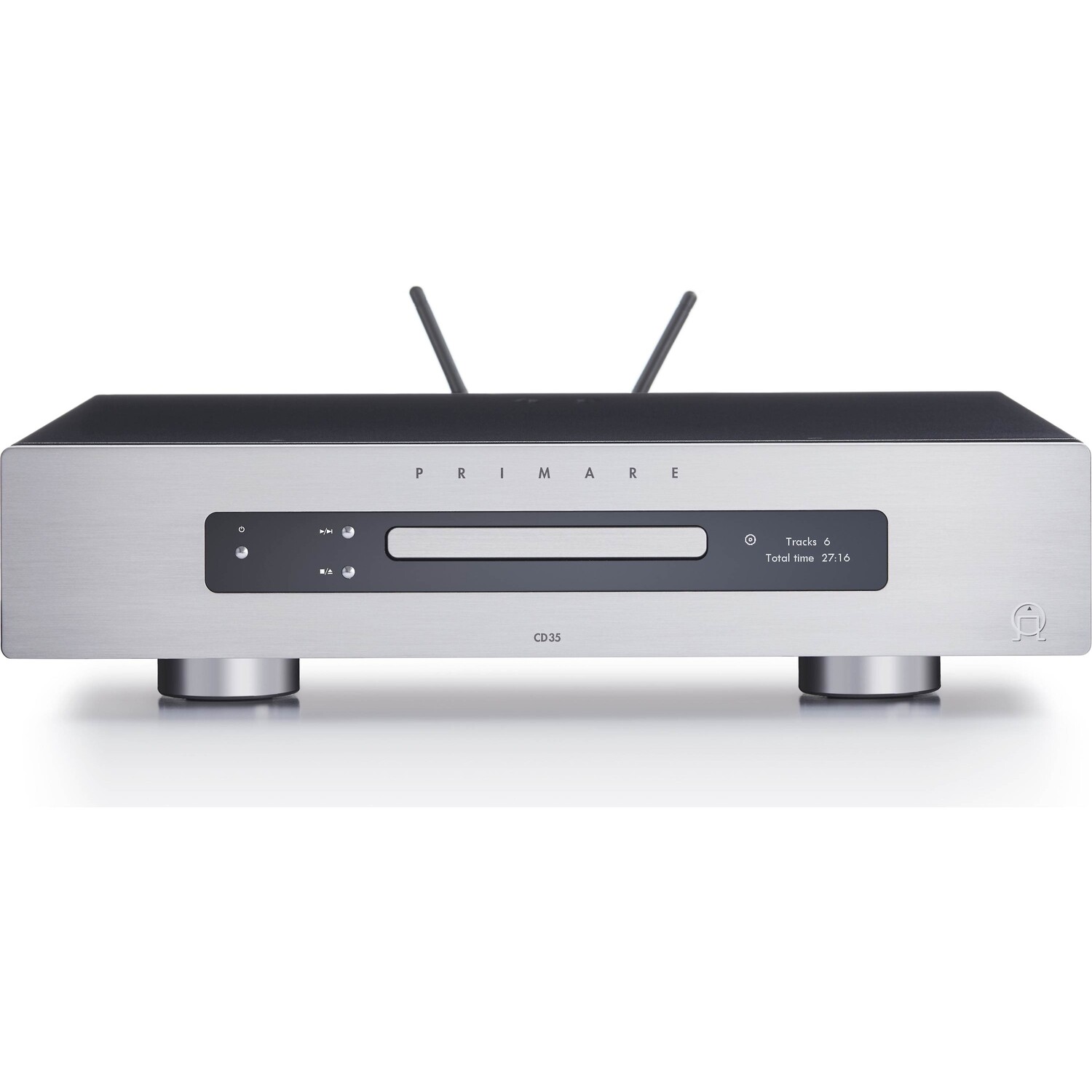

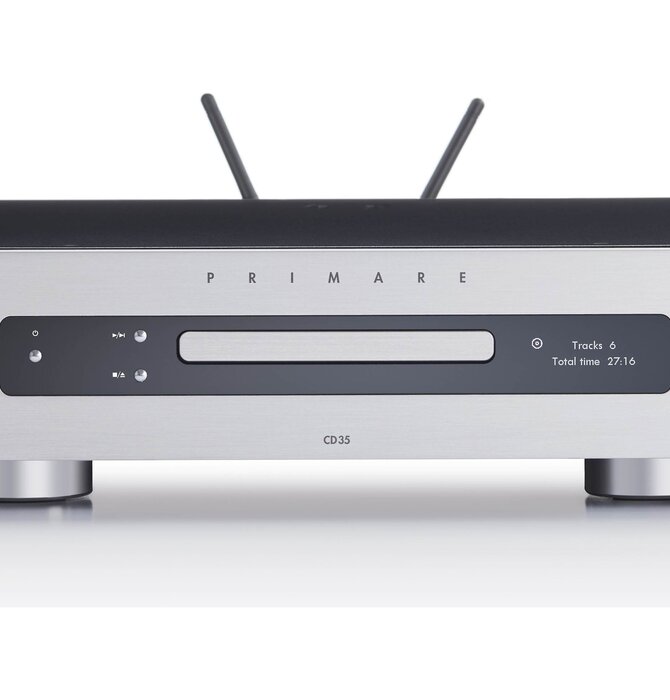

- front-panel OLED display
- remote control
dual-band Wi-Fi 5 (802.11ac) for listening to music from a networked PC, free internet radio, and music services (PCM up to 24-bit/192kHz; DSD up to 5.6MHz)
free Primare Prisma app for iOS® and Android™ devices offers easy control for playback of stored and streamed media, setup, and settings adjustments
provides multi-room, multi-zone control between other Prisma enabled devices
Spotify® Connect support (Spotify app and premium account required)
Chromecast built-in streams audio directly from the cloud via compatible devices and apps, including high-res music (up to 24-bit/96kHz)
controllable with Google Assistant-compatible voice control assistants
Apple AirPlay 2® lets you stream directly from an iPhone®, iPad®, or Mac®, or computer
built-in Bluetooth® for streaming music from compatible smartphones, tablets, and computers
Roon Ready: catalog, control, and discover music via subscription-based Roon software (Roon support coming via future firmware update)
supports DLNA and UPnP™ (Universal Plug 'n' Play) high-resolution wireless streaming from a Windows or Mac computer, or from a NAS drive

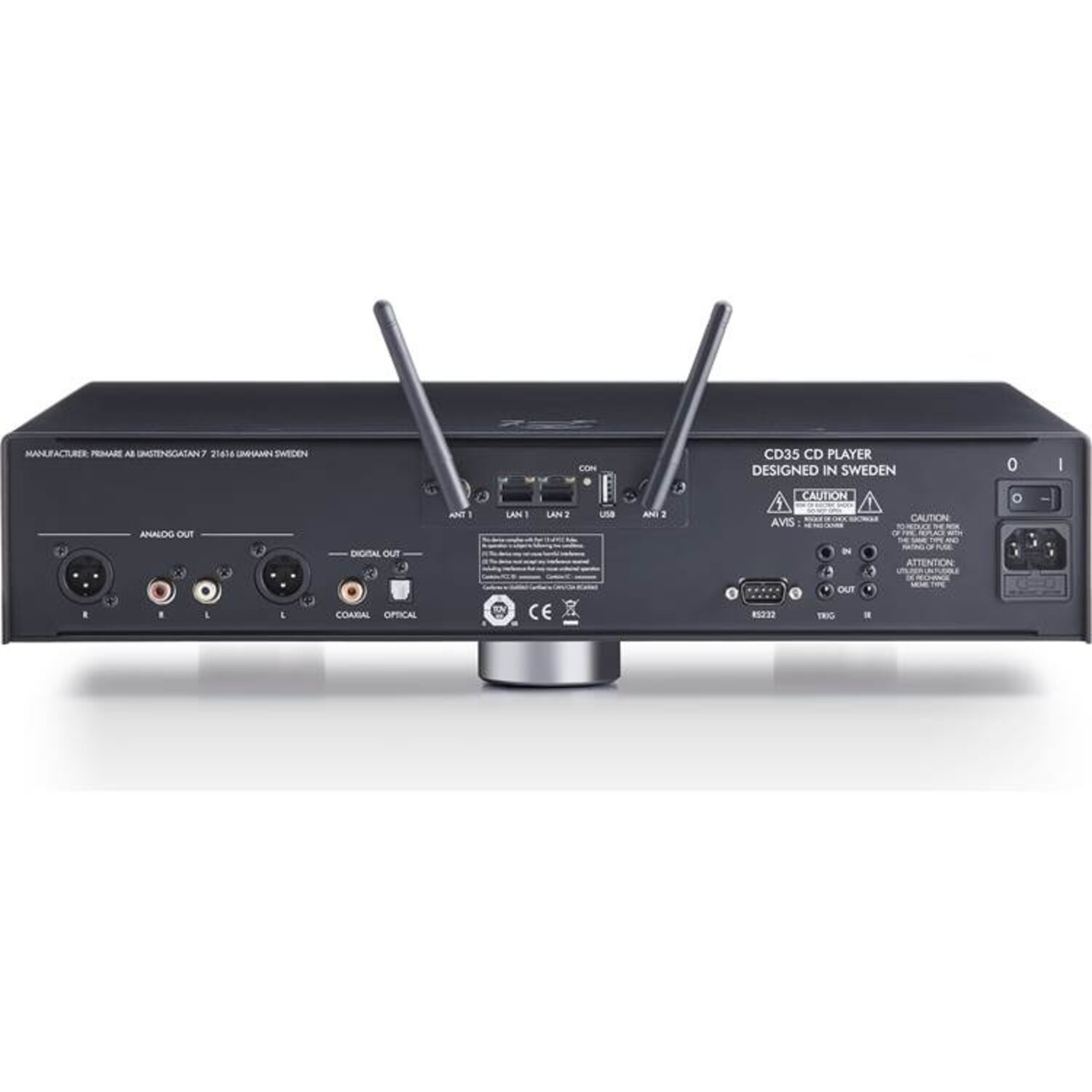

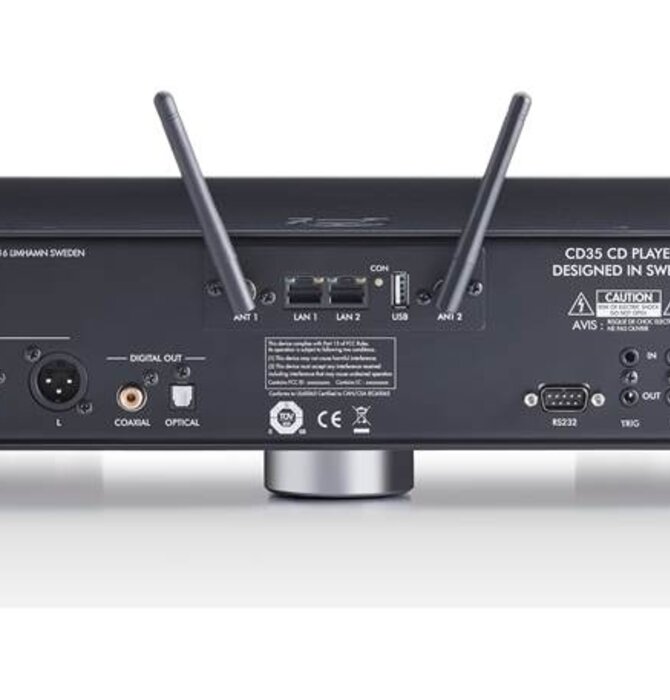

- 1 stereo balanced XLR analog output
- 1 stereo unbalanced RCA analog output
- selectable fixed or variable volume for analog outputs
- 1 USB Type-A input for connecting a thumb drive (accepts PCM up to 24-bit/192kHz; DSD up to 5.6MHz)
- 2 Ethernet ports (LAN in/LAN out) for connecting to a home network (accepts PCM up to 24-bit/192kHz; DSD up to 5.6MHz)
- 1 coaxial digital audio output
- 1 Toslink optical digital audio output
- 3.5mm IR remote control in/out can be used with an optional IR repeater system and compatible Primare products
- 3.5mm 12V trigger in/out allows the CD35 to be switched on from another device, like Primare's I35 integrated amp
- RS-232 port for use with home automation control systems, like Crestron
- detachable power cord.
- 16-15/16"W x 4-3/16"H x 17-1/16"D
- weight: 23.1 lbs.
- warranty: 3 years
