The MK3 Upgrade Brings Additional Refinements to the Existing MK2 Platform:

1. A brand-new, bigger color screen for better visualization of basic key information and additional details such as a Vu Meter.

2. Zone 2 output is now an SPDIF connector instead of XLR analog.

3. A new design of the face plate that gives more identity to our products while keeping the sleek and timeless aesthetic of the MK2.

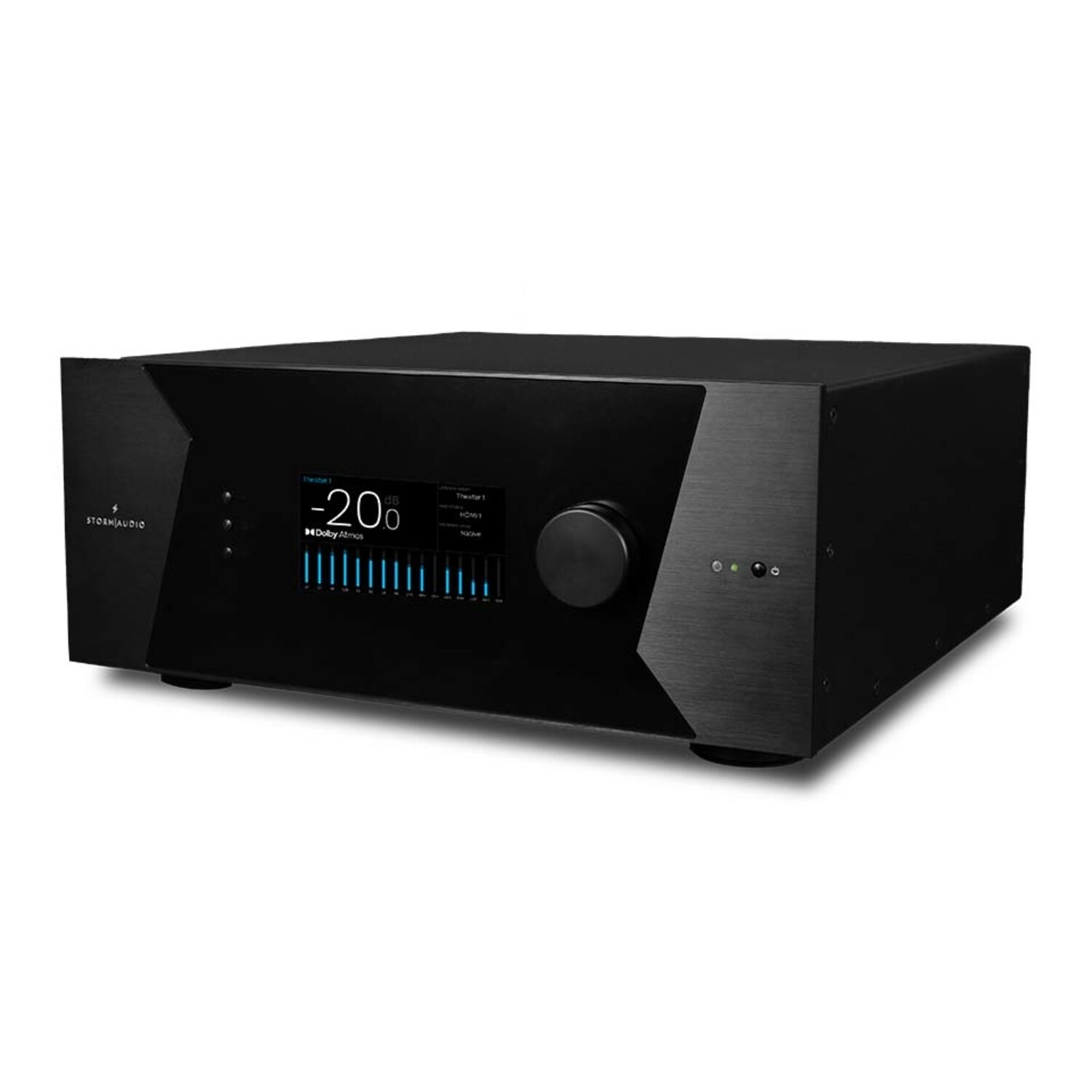

Refined evolution of the award-winning ISP product range, the StormAudio ISP MK3 generation of high-performance surround sound preamp processor brings the ultimate feature package required by the most demanding integrators and home cinema enthusiasts.

Details

With up to 24 channel decoding and up-mixing of the most sought after immersive surround formats, such as Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, there is also up to 32 channels of post-processing including the latest Dirac Live Bass Control module for multiple subwoofers and the state of art StormAudio Expert Bass Management with its multiple bass zones definition and selective bass routing. The ISP MK3 will provide the best sound performance in any theatre.

Modularity

Based on StormAudio’s proprietary modular platform, ISP MK3 has maintained its reputation for modularity and flexibility with multiple hardware and software options available. Whether you need more channels of analog XLR outputs or digital AES/EBU ( up to 32 channel ) or you need to interface with audio over IP AES67 networked devices, you will always find the right optional module to satisfy your needs.

Sonic Refinement

Not only offering a more subtle and classy design, the ISP MK3 also brings sonic refinement with a new proprietary analog/digital hybrid volume adjustment maximizing the dynamic range for a more accurate, detailed and dynamic reproduction of your movie sound track or your music playlists thanks to the ROON Ready integration.

All of this comes with the acclaimed user-friendly web-based interface that allows for a full configuration in only a few steps. The StormRemote iPad control application as well as the required control system drivers facilitate the ISP MK2 integration in any advanced theatre design.

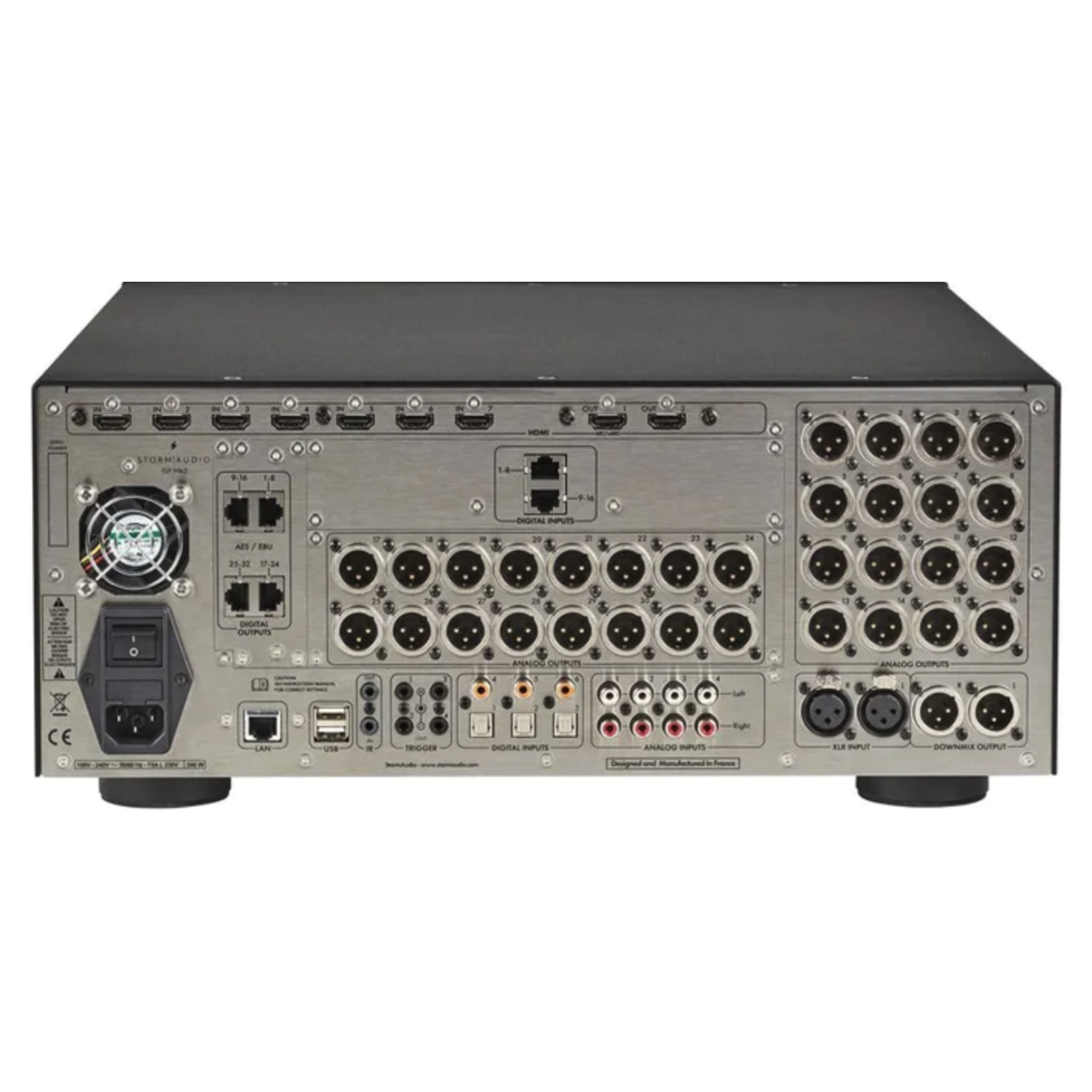

HDMI IN / OUT:

- 7 IN / 2 OUT ( ARC / eARC )
- HDMI 2.0b / HDCP2.2
- 4K UHD 18 Gbps on all ports
- HDR10, Dolby Vision, HLG
- HDMI 2.1 upgrade Q3 2022 optional

Audio Outputs:

- 16 channel analog ( XLR )
- 32 channel digital ( AES/EBU or AoIP ) - optional
- 1 x digital SPDIF ( Stereo downmix )

Audio Inputs:

- 16 channel digital ( AES/EBU ) - optional
- 32 channel digital AoIP AES67 - optional
- 4x RCA analog ( 7.1 or stereo )
- 1 x XLR analog ( stereo )
- 3 x Coaxial SPDIF
- 3 x Optical Toslink

Decoding:

- 24 decoding/upmixing channels
- Dolby Atmos, Auro-3D
- IMAX Enhanced, DTS:X Pro ready
- All legacy codecs up to 192 kHz

Processing:

- Up to 32 channel
- Multi-theater & multi-room
- Multi-way speakers
- Multi-subwoofer
- 20 PEQ per channel

Room Correction:

- Dirac Live with Bass Control module
- REW plugin

Streaming: ROON Ready

Control:

- TCP/IP ( ETHERNET ), IR
- StormRemote iOS Application
- Web based configuration
- Control4, Crestron, RTI, Savant, ELAN drivers
